BURNDY GP64526G1 GROUND CLAMP
Quick Overview
Manufactured By: BURNDY
Manufacturer Part Number: GP64526G1
IMS Product Code: 1759063
Packaging: Sold Individually
Sold Individually
Case of 12
Description:

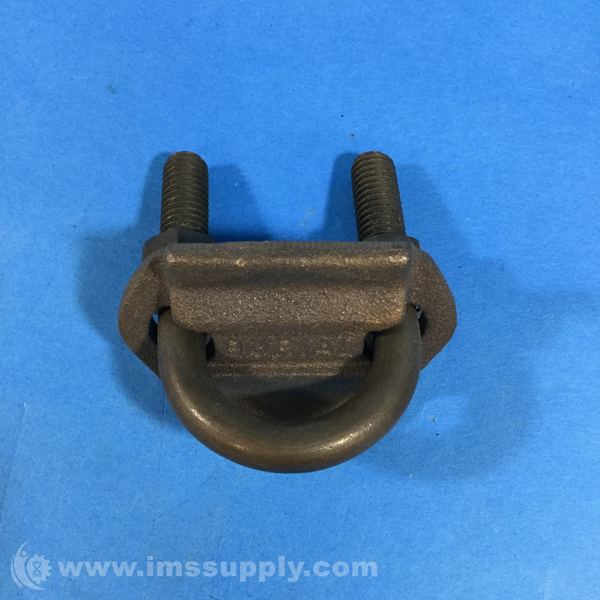

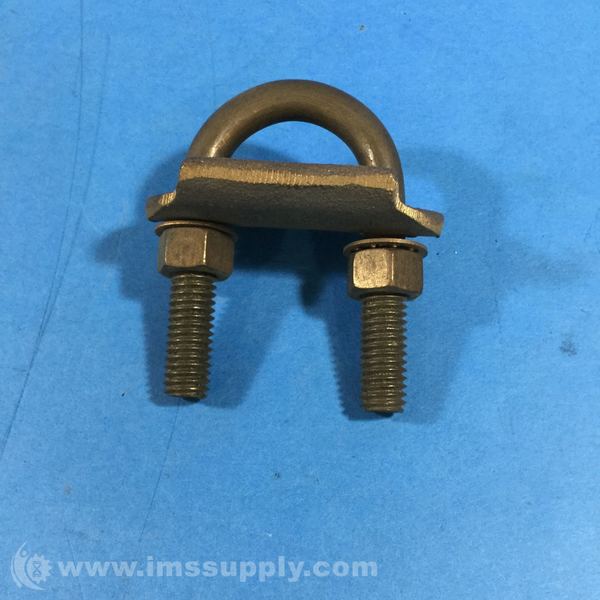

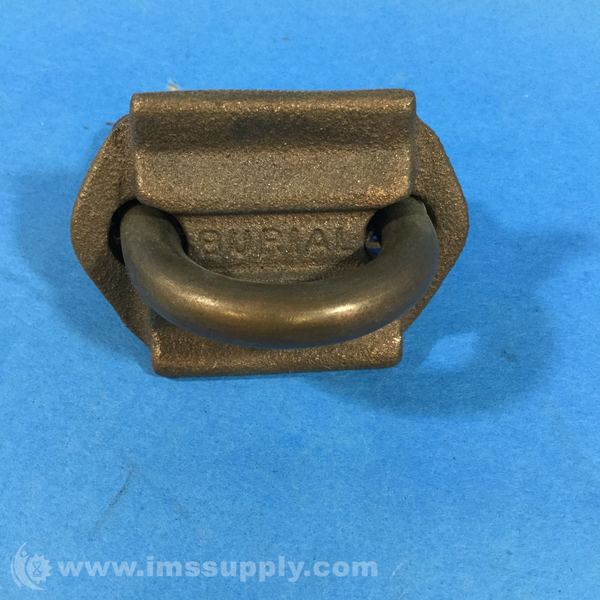

Burndy GP64526G1 Ground Clamp
Cast high copper alloy body ground connector for raised floor computer grounding applications. Accommodates one or two grounding wires to make an efficient grid on round and square pedestal applications. UL467 Listed.
Specifications
- Application: For Raised Floor Systems
- AWG: (1-2) 4-sol to 2/0-str
- Bolt Size: 3/8 in
- Clamp Type: Signal Reference Grid Wire Clamp
- Conductor Size: #4 AWG Sol - 2/0 AWG Str
- Conductor Type: CU C Str-Size
- Country of Origin: Mexico
- Dimension - B Length inch: 1.50 in
- Dimension - Height mm: 0 mm
- Dimension - L Length Overall mm: 43 mm
- Dimension - Length Overall inch: 1.69 in
- Dimension - Width inch: 2.38 in
- Dimension - Width mm: 60 mm
- EU RoHS Indicator: Yes
- Installation: Bolt-On U-Clamp
- Installation Torque Recommended in-lb: 240 LBS/in
- Material: Copper Alloy, Cast
- Material - Hardware: DURIUM™ Silicon Bronze
- Number Of Conductors: 1; 2
- Pedestal Type: Round; Square
- Post Size: 3/4" - 1" Square
- Size: 1.69 Inch L X 2.38 Inch W
- Type: GP-G1
- U Bolt Type: UB222
- UL Listed: Yes
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 2 In Stock
Ships today if ordered in the next 7 hours and 35 minutes.
