BUSSMANN FRN-R-20 RK5 FUSE
Quick Overview
Manufactured By: BUSSMANN
Manufacturer Part Number: FRN-R-20
IMS Product Code: 2052098
Packaging: Box of 10
Sold Individually
Box of 10
Description:

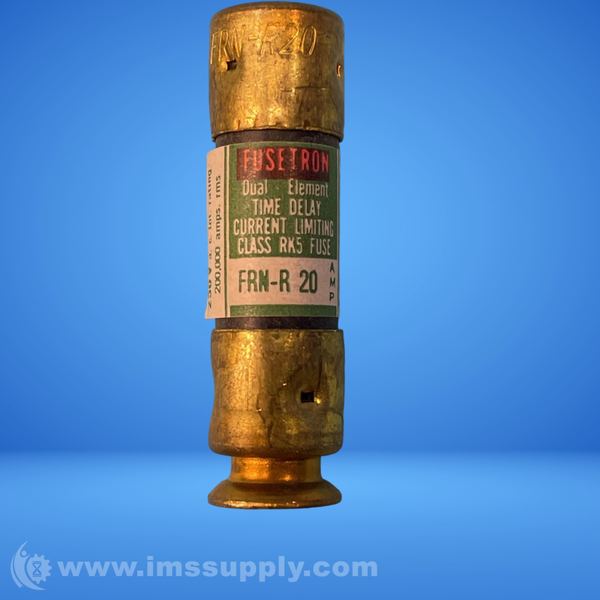

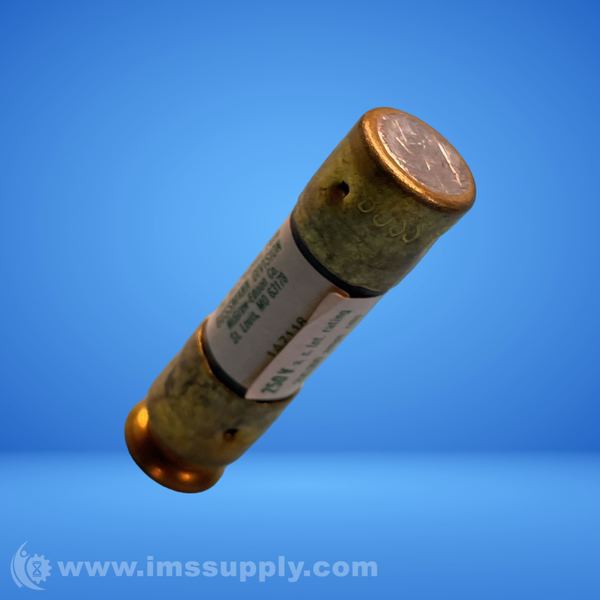

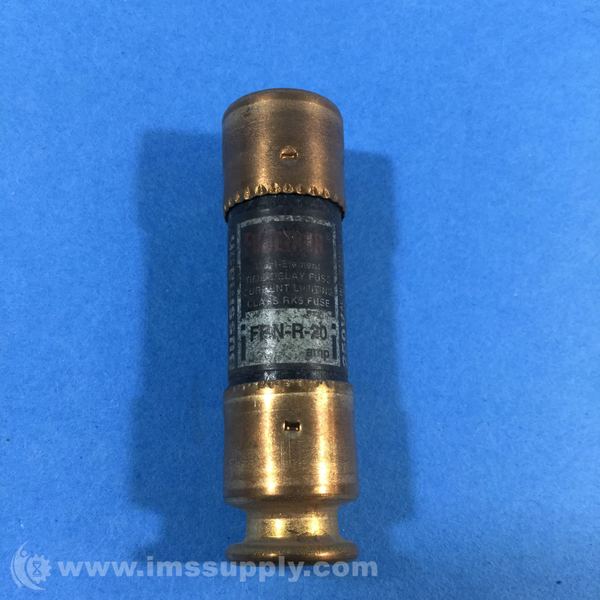

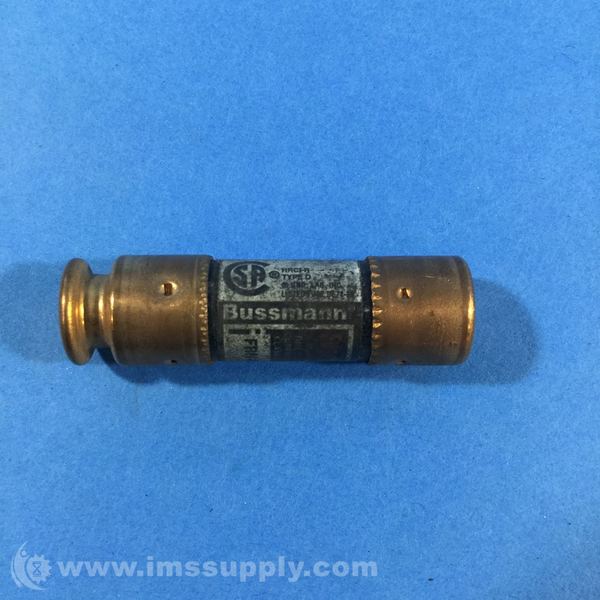

Bussmann FRN-R-20 RK5 Fuse
Bussmann FRN-R-20 is a 20A, 250V AC/125V DC, dual element, time delay, current-limiting fuse with RK5 classification. It has a cylindrical body with ferrule terminals and is designed for holder mounting. The fuse provides motor overload, ground fault, and short-circuit protection.
Specifications
- Amperage Rating: 20 A
- Voltage Rating: 250 VAC, 125 VDC
- Class: RK5
- Interrupt Rating: 200 kA VAC, 20 kA VDC
- Dimensions: 0.56 in Diameter x 2 in Length
- Terminal Type: Ferrule
- Mounting Type: Holder
- Element Type: Dual
- Body Material: Fiberglass
New - Open Box (Special):

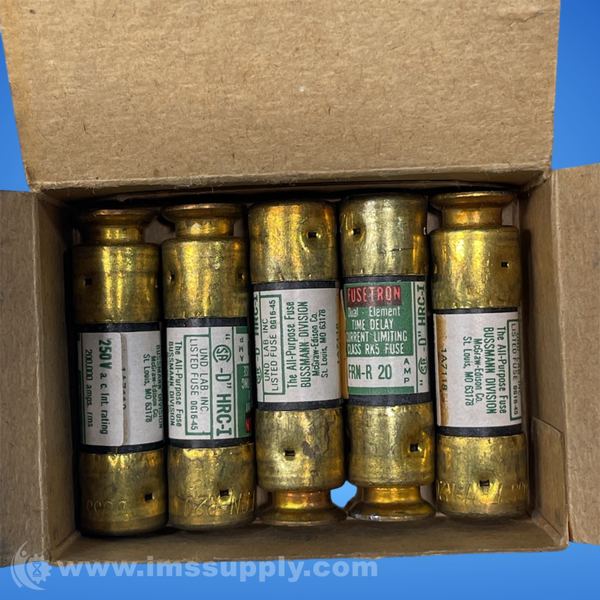

box came as box of 10 fuses, but there were only 5 fuses inside of box.
Availability: 1 In Stock
Ships today if ordered in the next 12 hours and 23 minutes.
New - Open Box (Special):

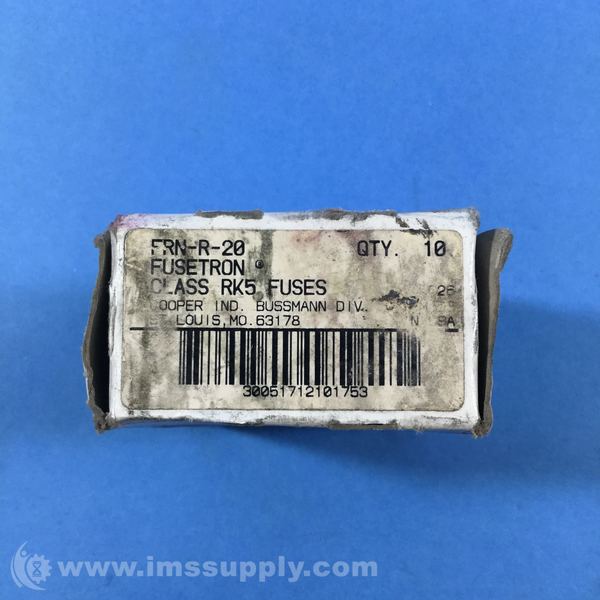

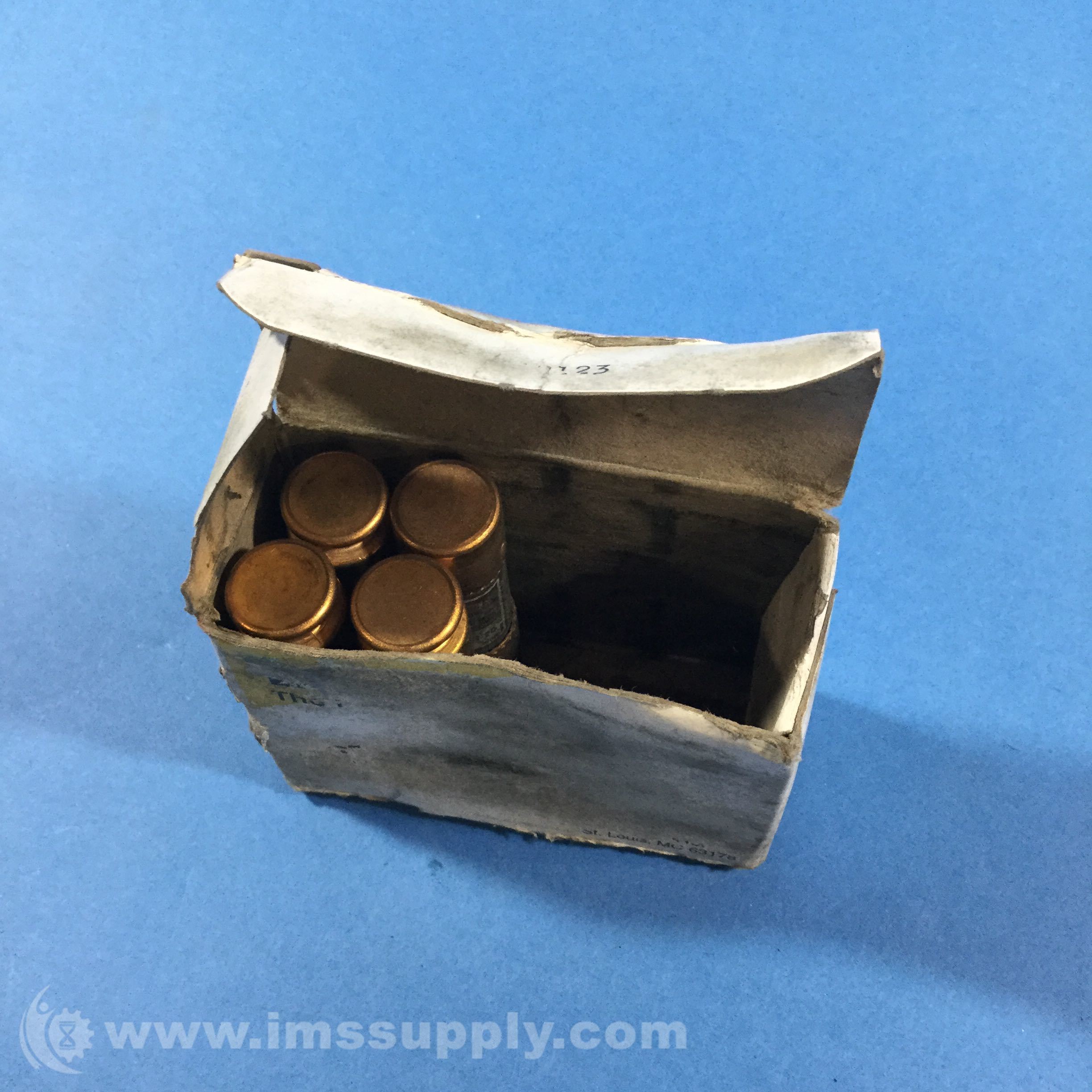

Box of 4 only
Availability: 1 In Stock
Ships today if ordered in the next 12 hours and 23 minutes.
