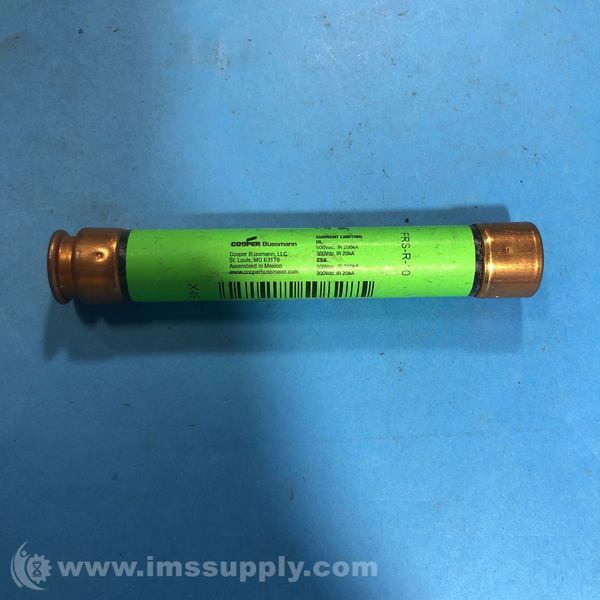

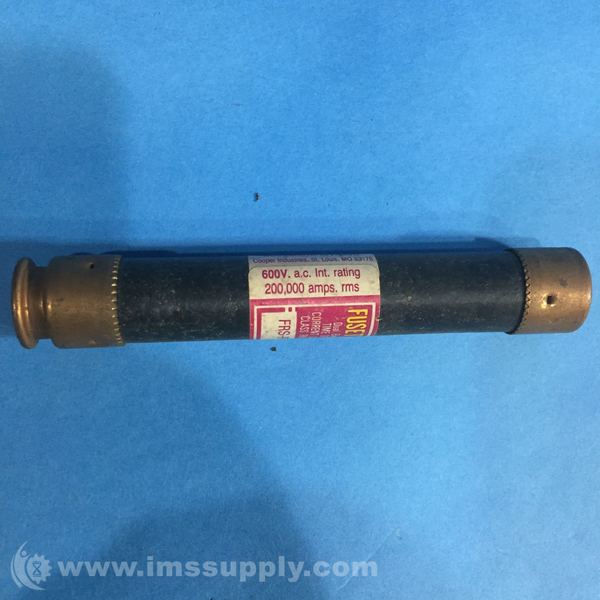

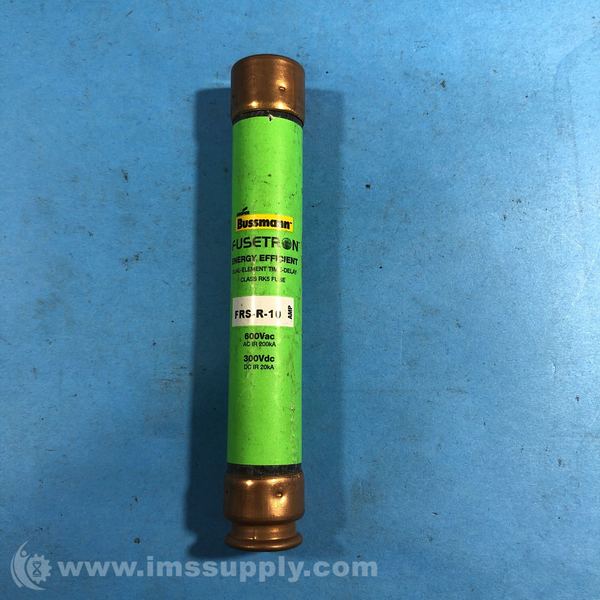

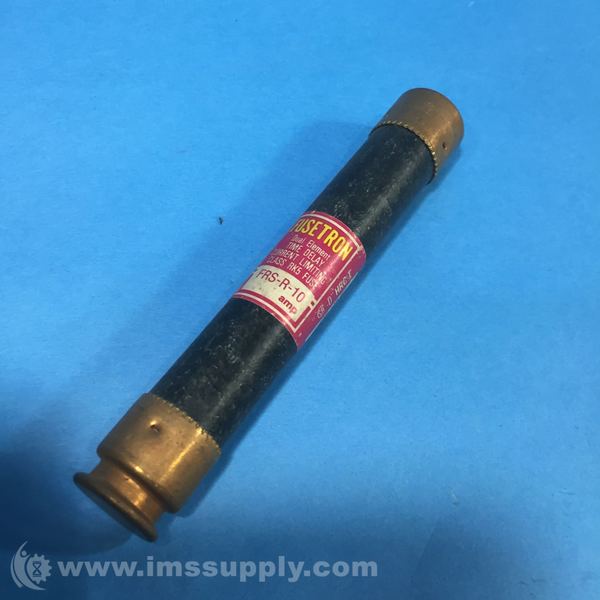

BUSSMANN FRS-R-10 TIME DELAY FUSE
Quick Overview
Manufactured By: BUSSMANN
Manufacturer Part Number: FRS-R-10
IMS Product Code: 378693
Packaging: Sold Individually
Sold Individually
Box of 10
Description:
Bussmann FRS-R-10 Time Delay Fuse
10 Amps, 600 Volts AC, UL Class RK5, Dual Element, Time Delay fuse with 200 kA interrupting rating.
Specifications
- Amps: 10
- Volts AC: 600
- Class: RK5
- Physical Size: 0.81" x 5"
- Interrupting Rating: 200,000 AIC RMS
- Interrupting Rating (DC): 20 kAIC @ 300 Vdc
- Series: FRS-R
- AC Voltage Rating: 600 V AC
- Body Material: Fiberglass
- Current Rating: 10 A
- DC Voltage Rating: 300 V DC
- Element: Dual
- Fuse Body Style: Cylindrical
- Fuse Class or Type: RK5
- Interrupt Rating - AC: 200 kA
- Interrupt Rating - DC: 20 kA
- Overall Diameter: 13/16 in
- Overall Length: 5 in
- Speed: Time-Delay
- Standards: CE; CSA Certification Class 1422-01; UL 248-12 Guide JDDZ
- Visual Indication: Non-Indicating
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 36 In Stock
Ships today if ordered in the next 2 hours and 26 minutes.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 187 In Stock
Ships today if ordered in the next 2 hours and 26 minutes.
