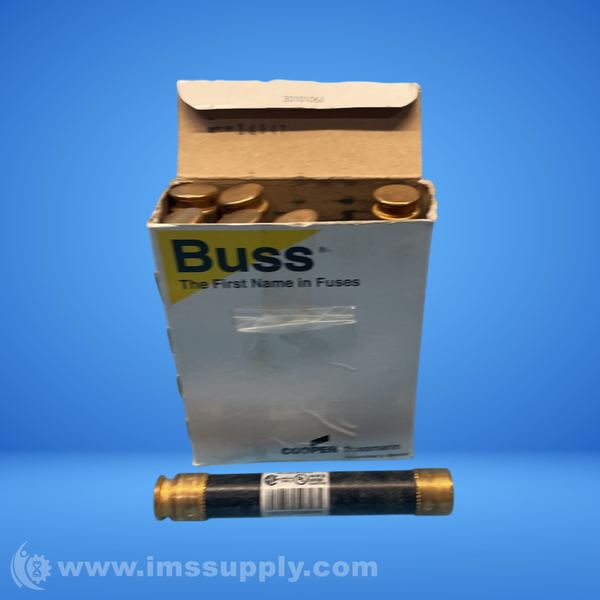

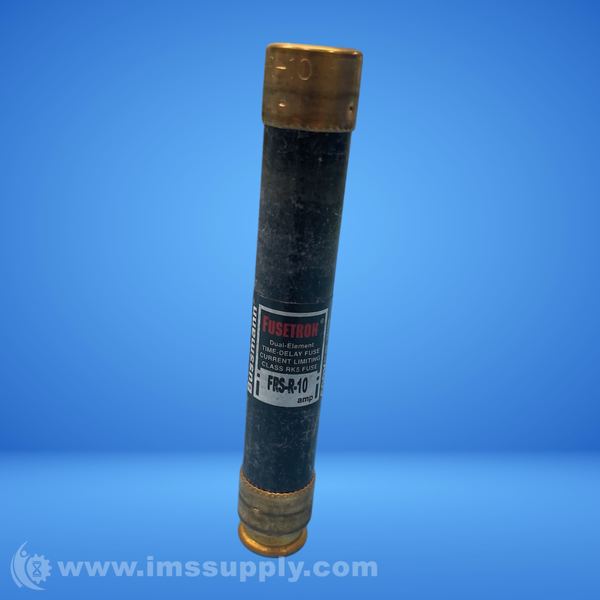

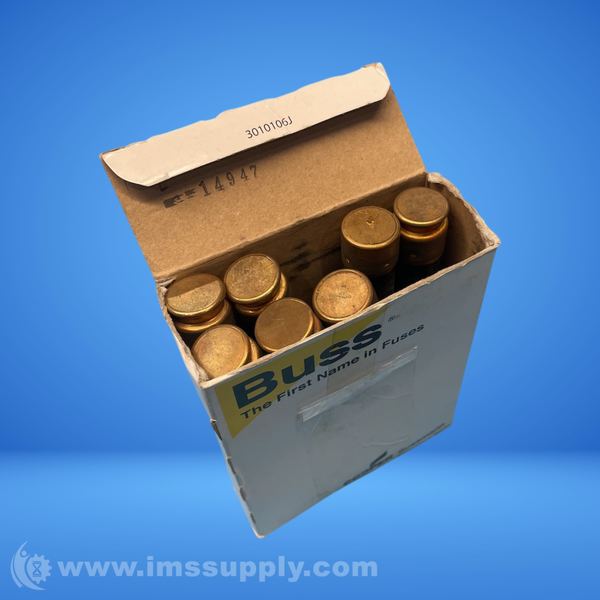

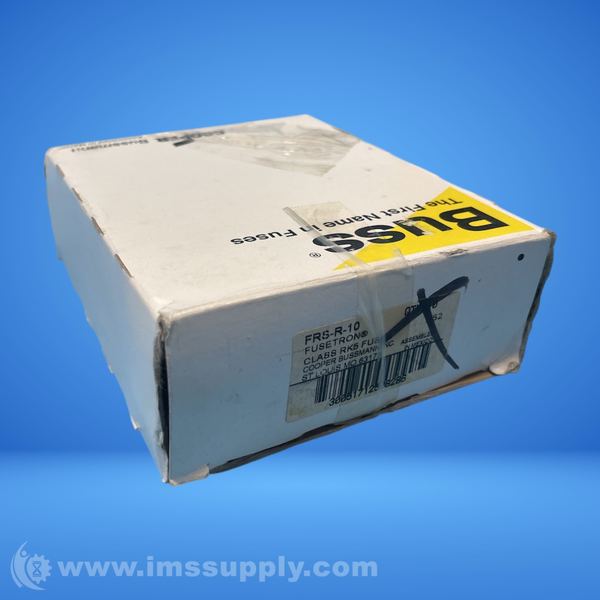

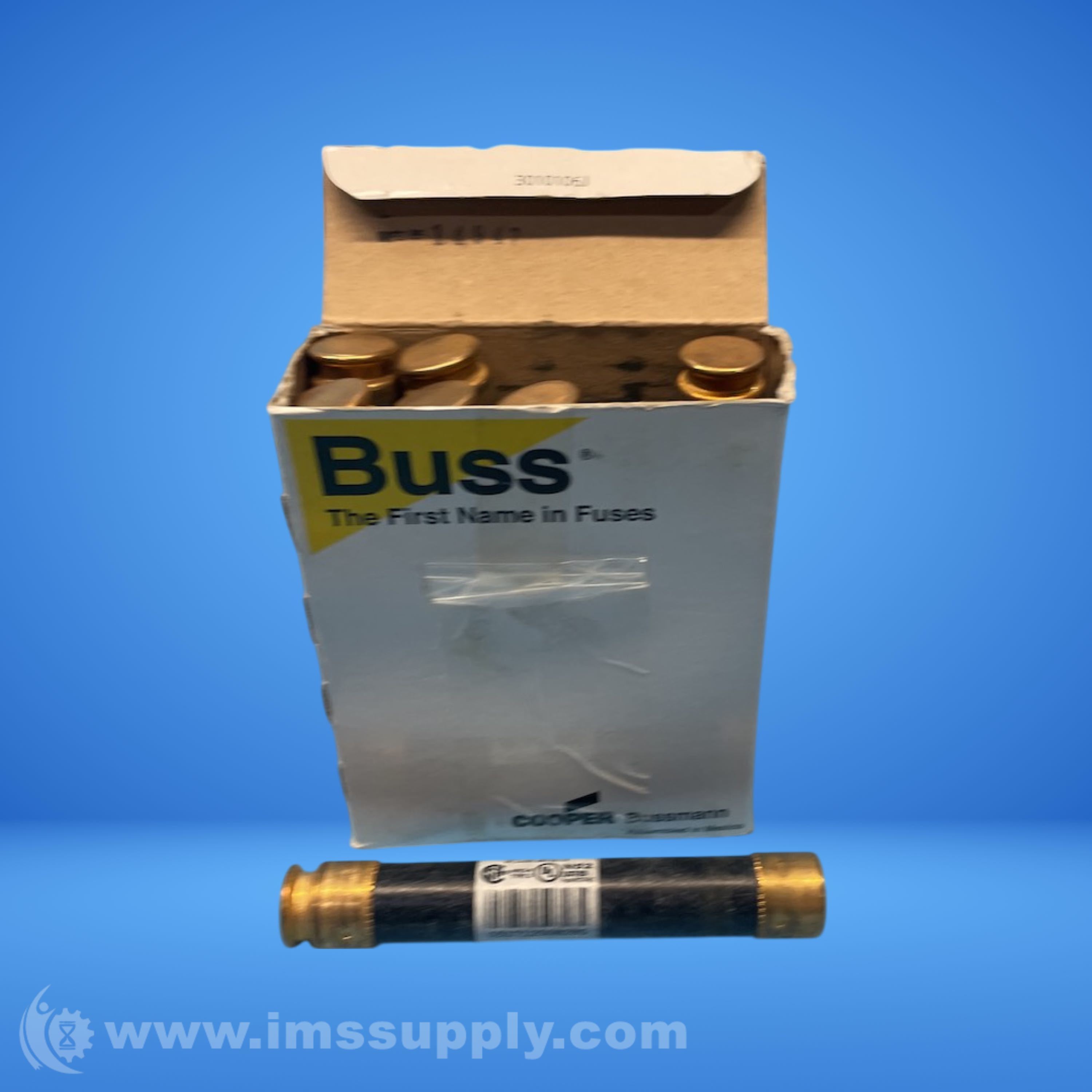

BUSSMANN FRS-R-10 TIME DELAY FUSE
Quick Overview
Manufactured By: BUSSMANN
Manufacturer Part Number: FRS-R-10
IMS Product Code: 2149792
Packaging: Box of 10
Sold Individually
Box of 10
Description:
Bussmann FRS-R-10 Time Delay Fuse
Cylindrical time-delay fuse with dual-element design for industrial applications, rated 10 A, 600 VAC/300 VDC, RK5 class, 200/20 kA interrupt rating, fiberglass body, non-indicating, ferrule terminals.
Specifications
- AC Voltage Rating: 600 V AC
- Amperage Rating: 10
- Application: Combination Starters, Motor Control Centers, Machinery Disconnects, Power Panelboards
- Body Material: Fiberglass
- Brand: Bussmann
- Characteristics: Time Delay
- Color: Black
- Compatible Fuse Block Series: HM600; RM600
- Connection: Ferrule End X Ferrule End
- Country of Origin: Mexico
- Current Rating: 10 A
- Current Type: AC/DC
- DC Voltage Rating: 300 V DC
- Diameter: 13/16 in
- Element: Dual
- Element Type: Dual
- Fuse Body Style: Cylindrical
- Fuse Block Style: Rejection
- Fuse Class or Type: RK5
- Fuse Classification: Current-Limiting
- Indicator Type: Non-Indicating
- Interrupt Rating: 200/20
- Interrupt Rating - AC: 200 kA
- Interrupt Rating - DC: 20 kA
- Length: 5 in
- Material: Fiberglass
- Maximum Amperage: 10 A
- Model: FRS-R
- MPN: FRS-R-10
- Number in Pack: 10
- Overall Diameter: 13/16 in
- Overall Length: 5 in
- Package_Quantity: 10
- Rejection/Non-Rejection: Rejection
- Response_Time: 10
- Series: FRS-R
- Size: 0.81 In Diameter X 5.00 In Length
- Speed: Time-Delay
- Standard: UL 248-12, CSA, CE
- Standards: CE; CSA Certification Class 1422-01; UL 248-12 Guide JDDZ
- Terminal Type: Ferrule, Holder
- Type: Current Limiting
- Type_Of_Indicators: Non-Indicating
- UPC: 051712508285
- Visual Indication: Non-Indicating
- Voltage Rating: 600 VAC/300 VDC
- UNSPSC: 39121604
