CENTURY SPRING 70464 COMPRESSION SPRING
Quick Overview
Manufactured By: CENTURY SPRING
Manufacturer Part Number: 70464
IMS Product Code: 1936918

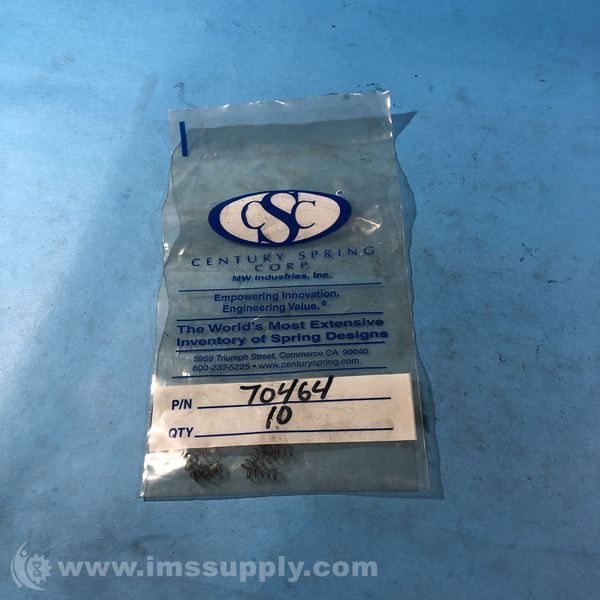

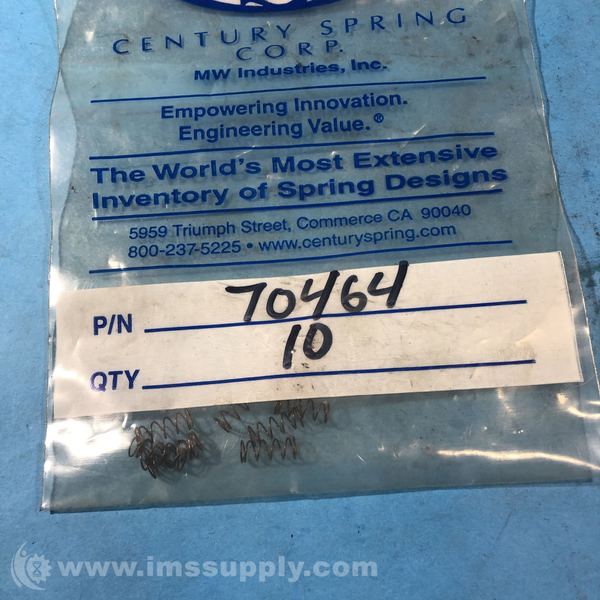

Packaging: Bag of 10
Description:
Century Spring 70464 Compression Spring

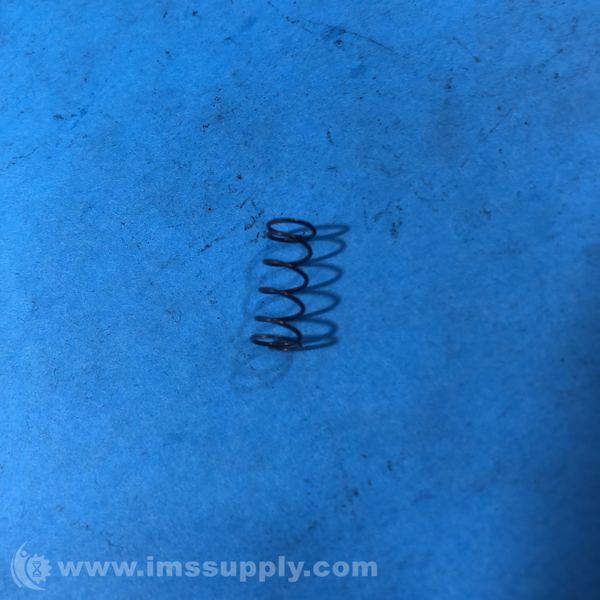

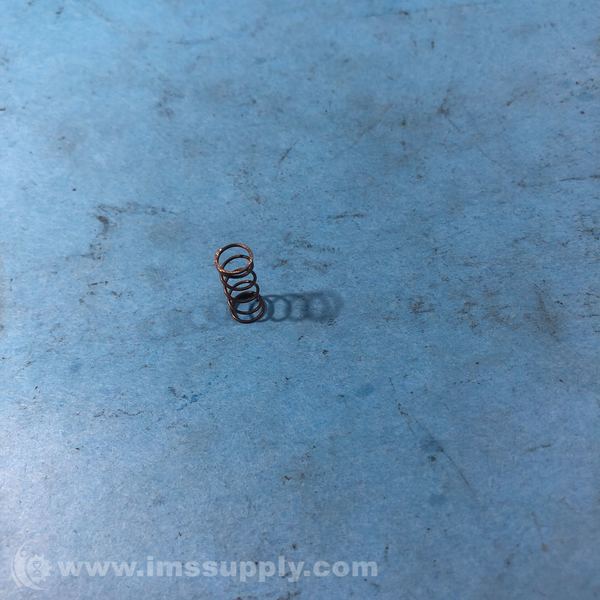

Music Wire compression spring with closed and ground ends, 0.018 inch wire diameter, 0.21 inch outside diameter, and 0.5 inch free length.
Specifications
- Material: Music Wire
- Ends: Closed & Ground
- Free Length: 0.5 in
- Inside Diameter: 0.174 in
- Outside Diameter: 0.21 in
- Rate: 5.1 lbs/in
- Solid Length: 0.11 in
- Suggested Max Deflection: 0.33 in
- Suggested Max Load: 1.7 lbf
- Total Coils: 6.13
- Wire Diameter: 0.018 in
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 12 hours and 41 minutes.
