CIRCLE SEAL 2249B-4MM CHECK VALVE
Quick Overview
Manufactured By: CIRCLE SEAL VALVE
Manufacturer Part Number: 2249B-4MM
IMS Product Code: 2160420
Packaging: Sold Individually
Description:

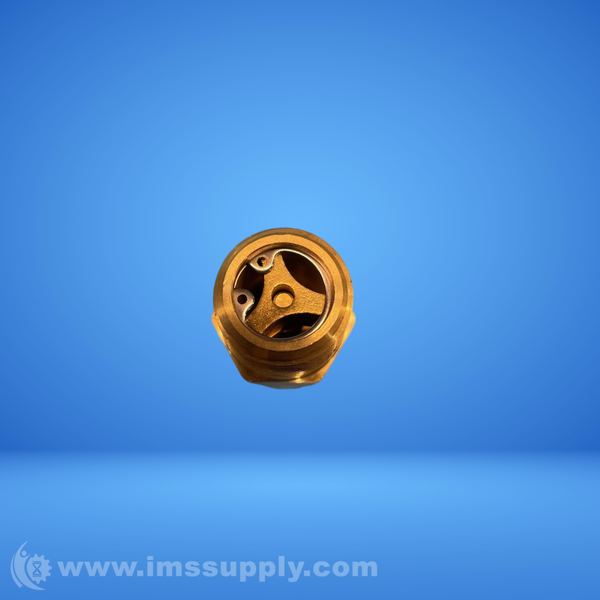

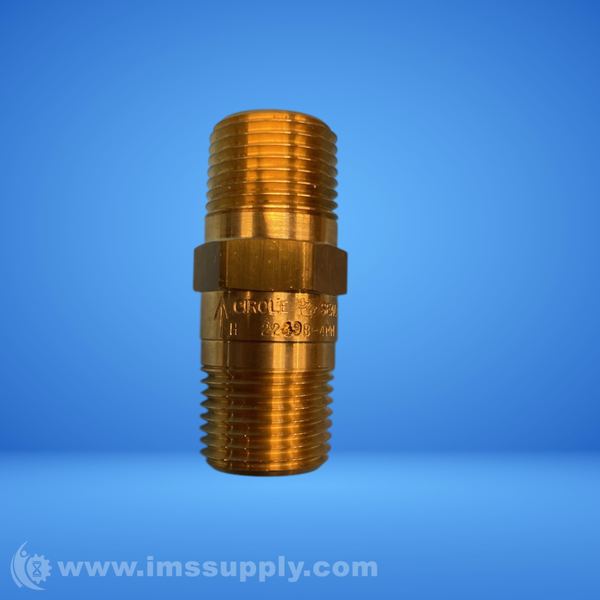

Circle Seal 2249B-4MM Check Valve
1/2? MNPT Check Valve, Brass/Buna-N construction, rated up to 800 psig
Specifications
- Series: 2200
- Body Material: Brass
- O-Ring Material: Buna N
- Connection Size: 1/2 in
- End Connections (Inlet and Outlet): Male NPT
- Operating Pressure: 0 to 800 psig
- Cracking Pressure: 4 psig
- Operating Temperature: -65 to 250 degrees F
- Flow Coefficient (Cv): 2.10
- Spring Material: 302 Stainless Steel
- Proof Pressure: 1200 psig
- Max. Allowable Pressure Drop (Air): 10 psid
- Max. Allowable Pressure Drop (Oil): 15 psid
- Weight: 0.25 lbs
