CKD 2415-8C REVERSE REGULATOR
Quick Overview
Manufactured By: CKD
Manufacturer Part Number: 2415-8C
IMS Product Code: 1814740
Packaging: Sold Individually
Description:

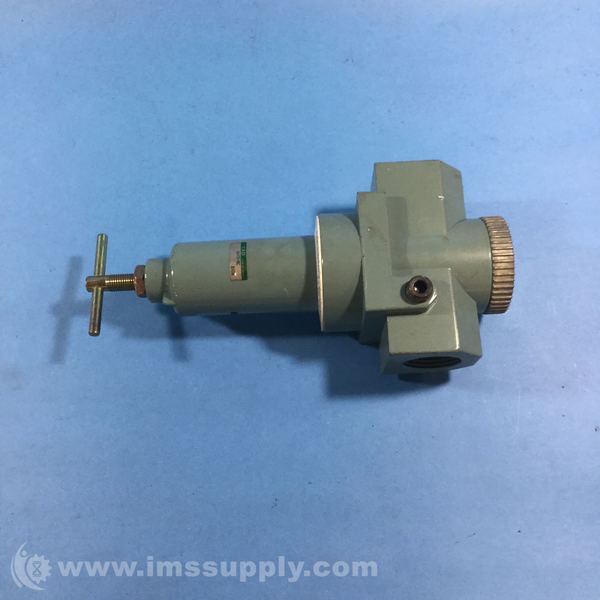

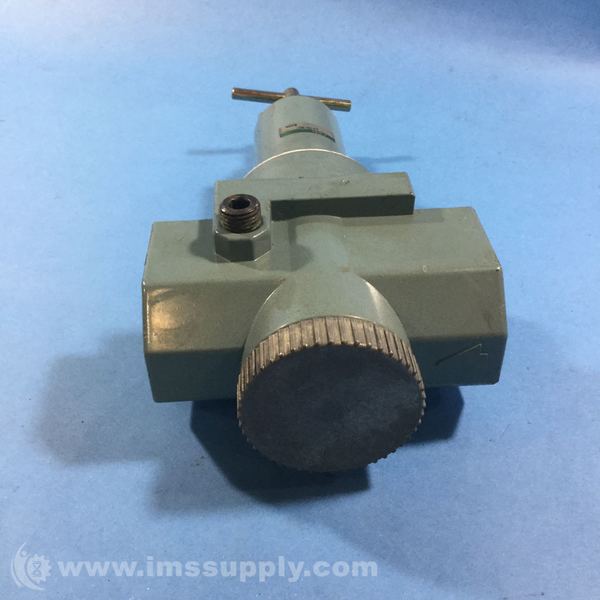

CKD 2415-8C Reverse Regulator
Reverse regulator with built-in check valve for rapid exhaust of secondary pressure. Simplifies piping without bypass circuit.
Specifications
- Setting Pressure: 0.07~0.83 MPa
- Connection Size: Rc1
- Overall Length: 250 mm
- Maximum Operating Pressure: 1 MPa
- Material/Finish: Body/Cover: Zinc Alloy Die-cast, Diaphragm: Nitrile Rubber
- Mass: 2.5KG
