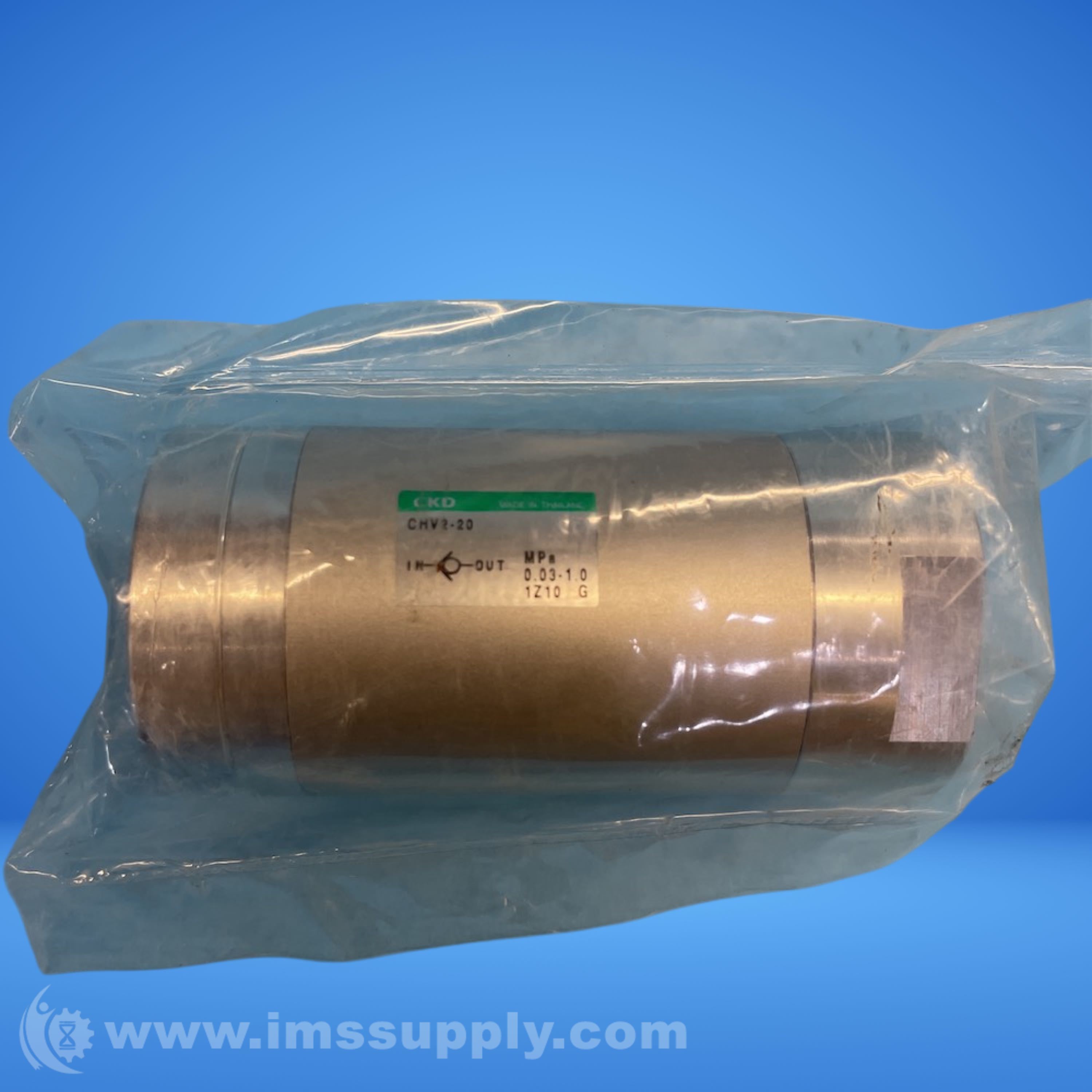

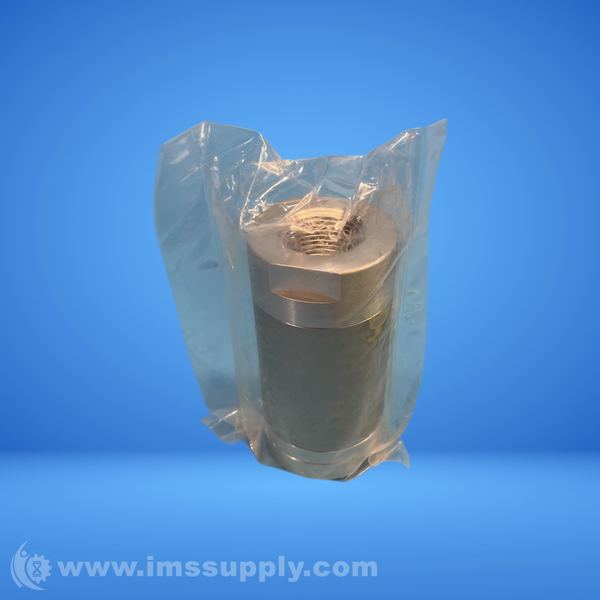

CKD CHV2-20 CHECK VALVE
Quick Overview
Manufactured By: CKD
Manufacturer Part Number: CHV2-20
IMS Product Code: 2121989
Packaging: Sold Individually
Description:
CKD CHV2-20 Check Valve
Pneumatic check valve preventing back flow, with configurable seal material and effective sectional area. Operates at 0.03-1.0 MPa.
Specifications
- Series: CHV2
- Piping Sizes: Rc1/8 to Rc11/2
- Seal Material: Configurable
- Effective Sectional Area: Configurable
- Operating Pressure: 0.3 … 10 bar
- Proof Pressure: 15 bar
- Fluid: Air
- Cracking Pressure: 0.2 bar
- Ambient Temperature: 0 … 60 degrees C
- Port Size: 3/4?
- Weight: 0.3 kg
- Effective Sectional Area (mm^2): 220
- Overall Length (mm): 95
- Width (mm): 47
- Outer Diameter (f): 47
- Fluid Temperature (degrees C): 5 … 60
- Proof Pressure (MPa): 1.5
- Material: Cover and tube - aluminum alloy; Valve body and O-ring - nitrile rubber
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships on Monday, November 10, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
Ships on Monday, November 10, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
