CKD FFG-5110A4A3D1-B 3-PORT SOLENOID VALVE
Quick Overview
Manufactured By: CKD
Manufacturer Part Number: FFG-5110A4A3D1-B
IMS Product Code: 2141460
Packaging: Sold Individually
Description:

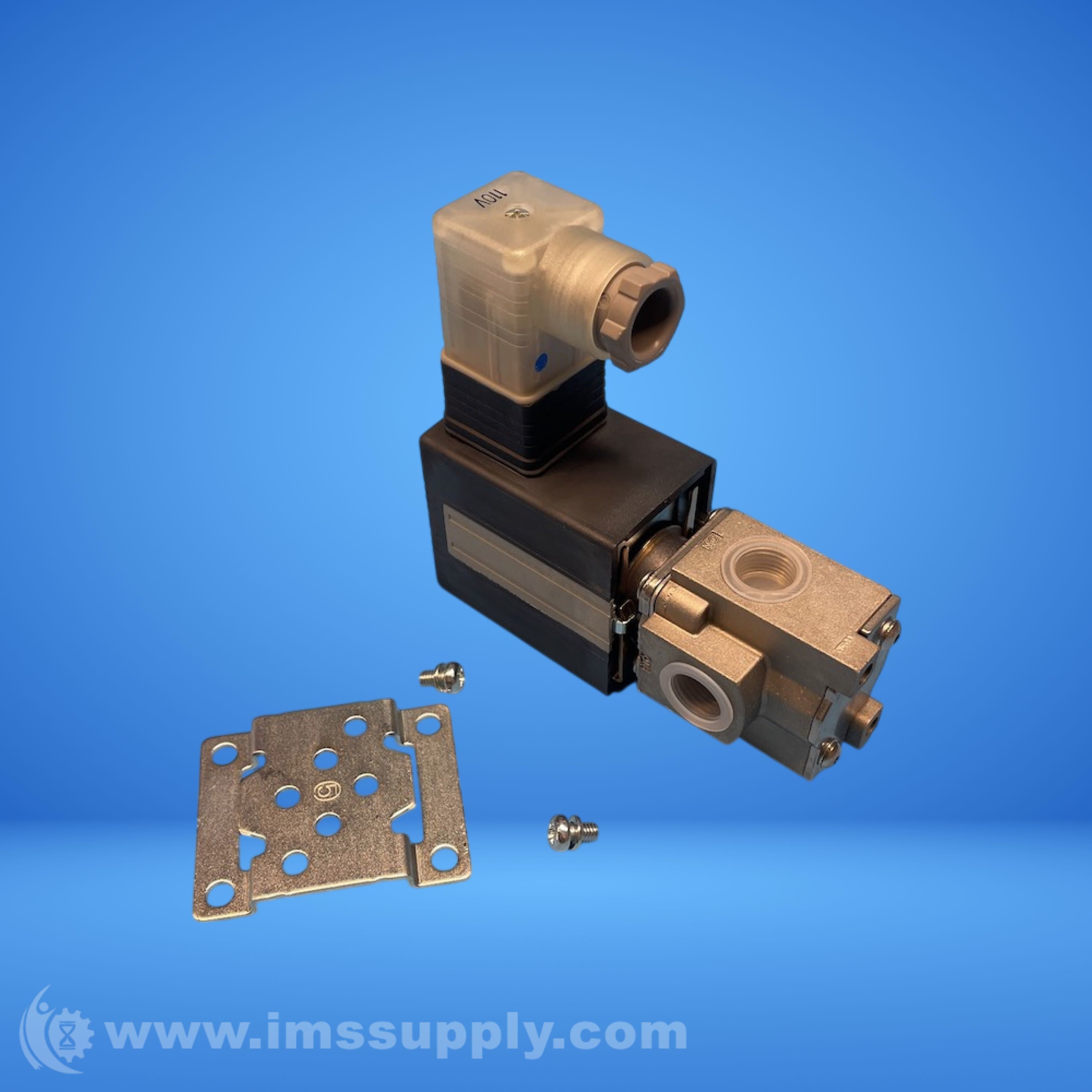

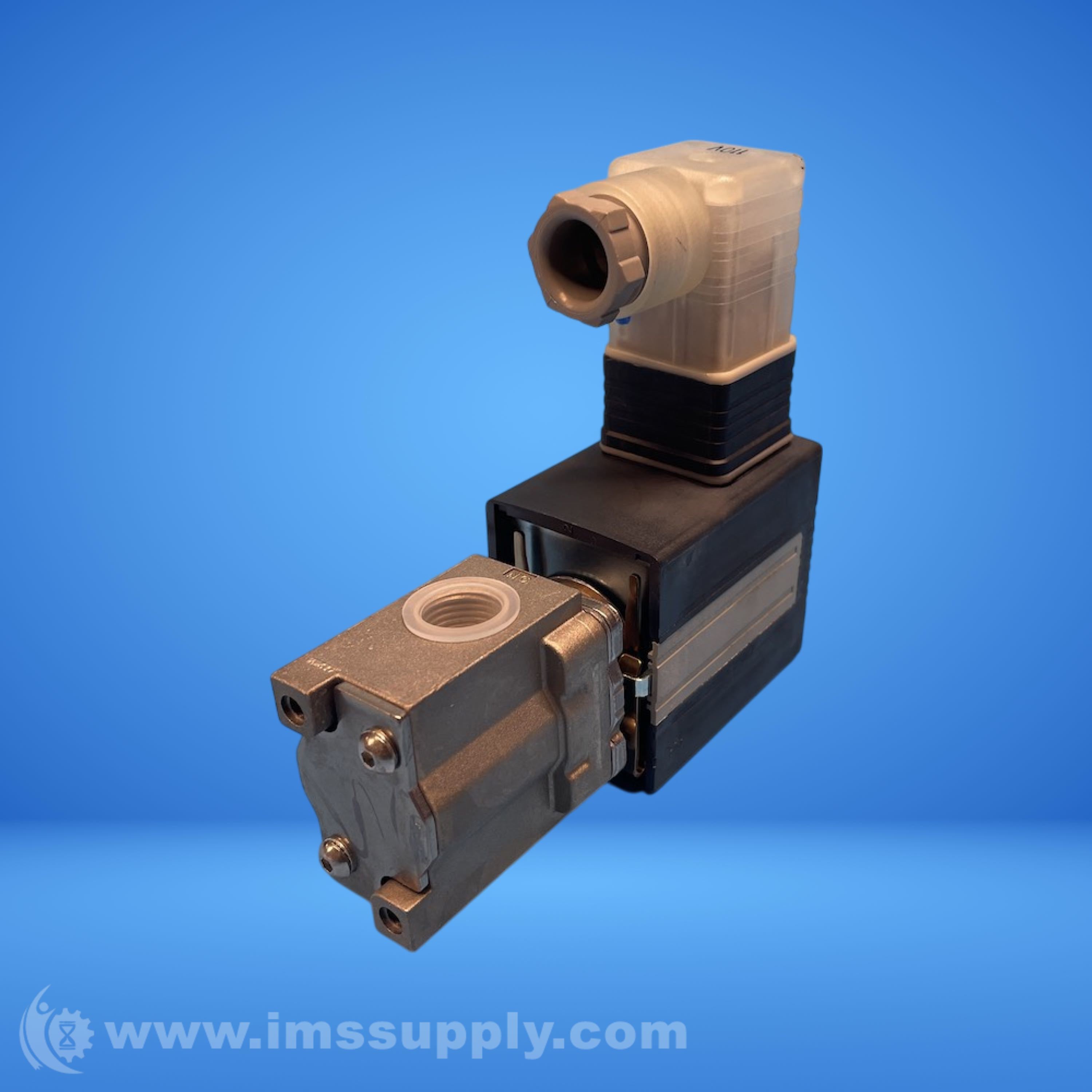

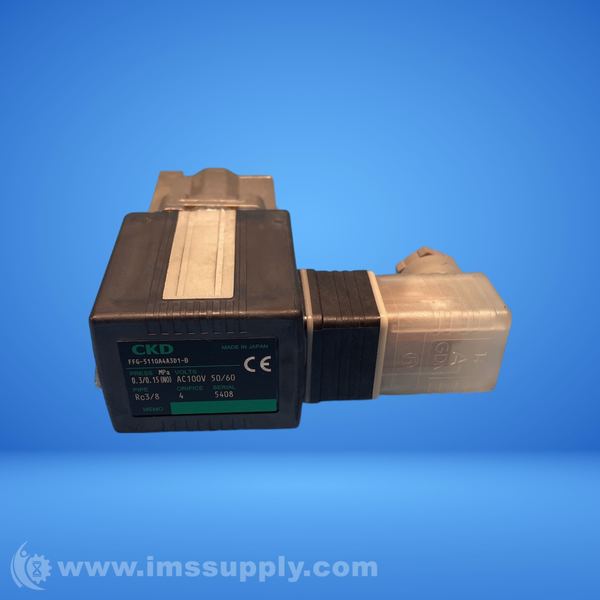

CKD FFG-5110A4A3D1-B 3-Port Solenoid Valve
A 3-port solenoid valve designed for multiple fluids, featuring a universal design and aluminum body.
Specifications
- Rated Voltage: AC100V (50/60Hz)
- Orifice Diameter: 4 mm
- Weight: 742 g
- Protection Structure: IP65
- Seal Material: NBR
- Operating Pressure: 0-0.3 MPa, 0-0.15 MPa (NO pressurized)
- Connection Port Size: Rc 3/8
- Operating Type: Universal
- Fluid Used: Compressed air, dry air
- Fluid Temperature: -10 to 60 degrees C (no freezing)
- Body Material: Aluminum
- Heat Resistance Class: 130(B)
- Mounting Orientation: Free
- Apparent Power: 13 VA
- Ambient Environment: No corrosive or explosive gases
- Valve Structure: Direct-acting poppet structure
- Valve Seat Leakage: 0.2 cm3/min or less (air, ANR)
- Ambient Temperature: -10 to 55 degrees C
- Water Pressure Resistance: 1.8 MPa
New - Missing Box (Special):
Part comes with bracket and hardware.
