CKD SCG-J-00-80B-300 PNEUMATIC CYLINDER
Quick Overview
Manufactured By: CKD
Manufacturer Part Number: SCG-J-00-80B-300
IMS Product Code: 2123510
Packaging: Sold Individually
Description:

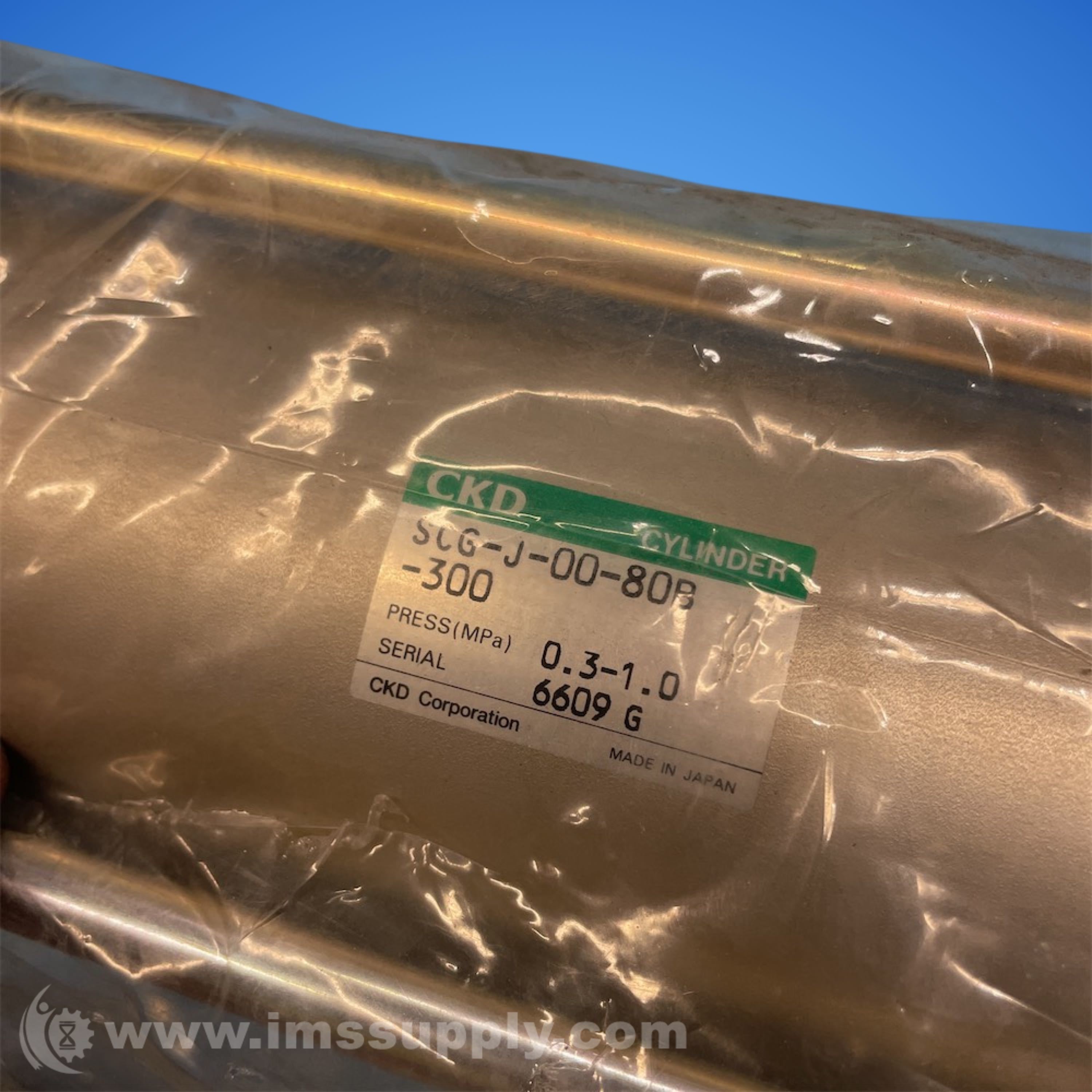

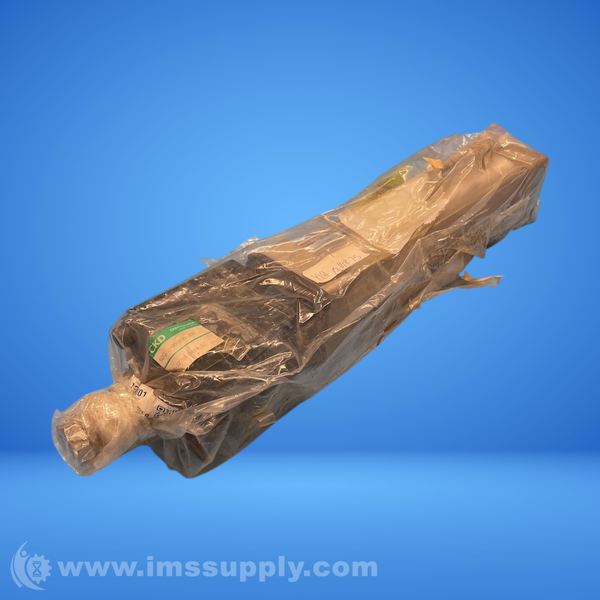

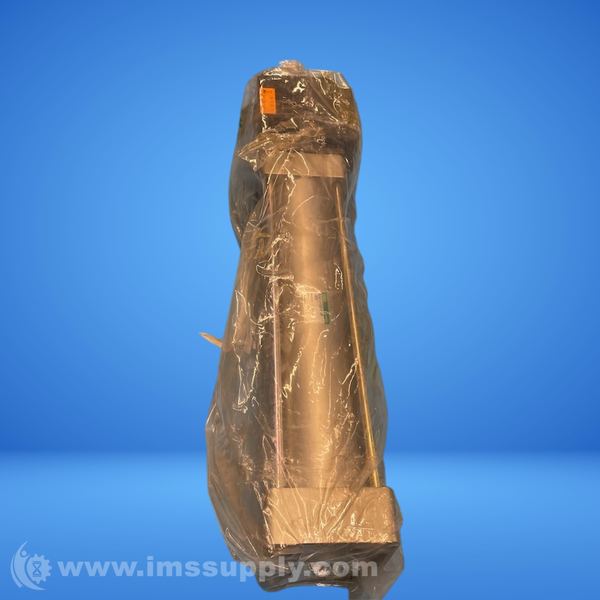

CKD SCG-J-00-80B-300 Pneumatic Cylinder
Pneumatic cylinder with 80 mm bore size and 300 mm stroke length.
Specifications
- Type: Tie Rod Cylinder, Double Acting, Single Rod
- Mounting style: Basic Type, double side air cushion
- Bore Size: 80 mm
- Port thread: Rc Screw (M5)
- Stroke Length: 300 mm
- Switch: No switch
- Maximum Operating Pressure: 0.05-1 MPa
- Operating Temperature: -10 to +60 degrees C (no freezing)
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
