CKD SCS-LB-125B-300 PNEUMATIC CYLINDER
Quick Overview
Manufactured By: CKD
Manufacturer Part Number: SCS-LB-125B-300
IMS Product Code: 2154159
Packaging: Sold Individually
Description:

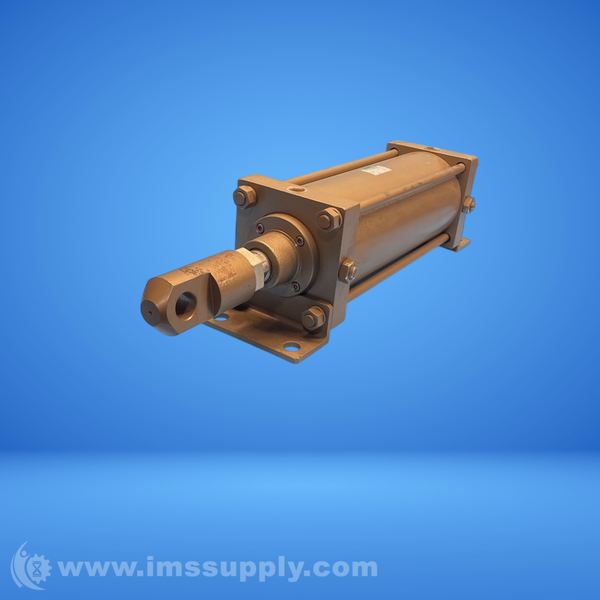

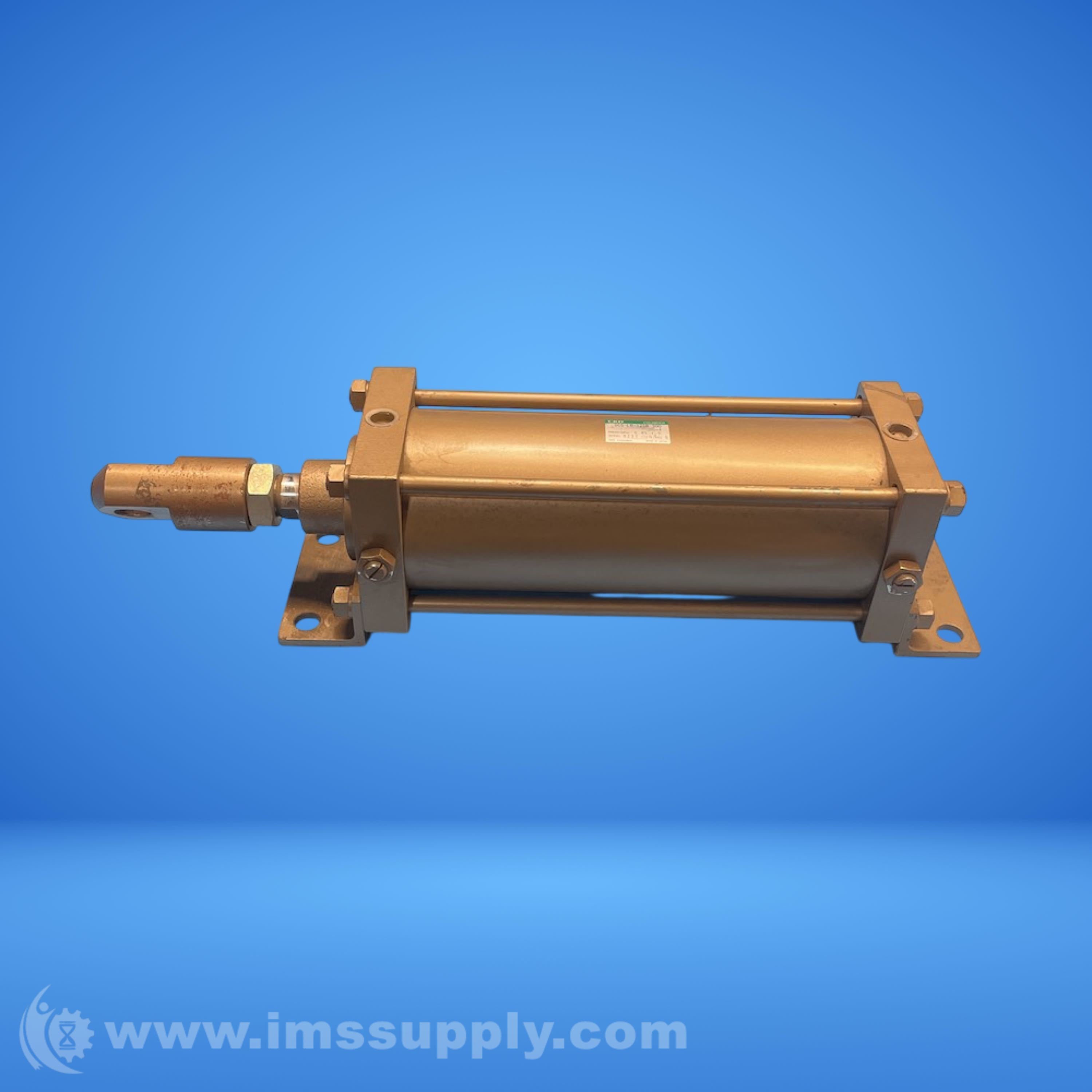

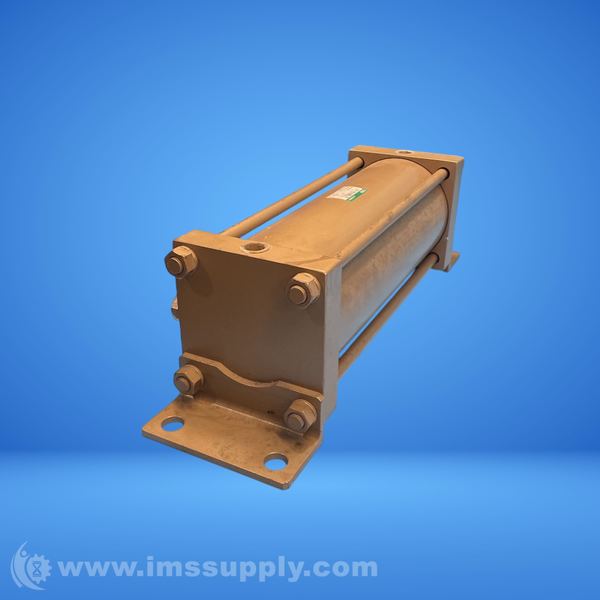

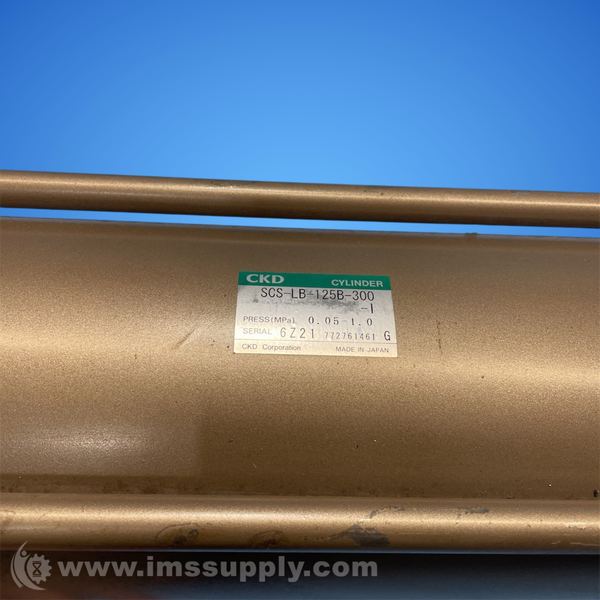

CKD SCS-LB-125B-300 Pneumatic Cylinder
Double acting pneumatic cylinder with compressed air operation.
Specifications
- Actuation: Double acting
- Bore size: 125 mm
- Working fluid: Compressed air
- Max. working pressure: 1.0 MPa
- Min. working pressure: 0.05 MPa
- Ambient temperature: -5 to 60 degrees C (no freezing)
- Port size: Rc3/4
- Cushion: Air cushion
- Lubrication: Required (when lubricating, use turbine oil Class 1 ISO VG32)
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
