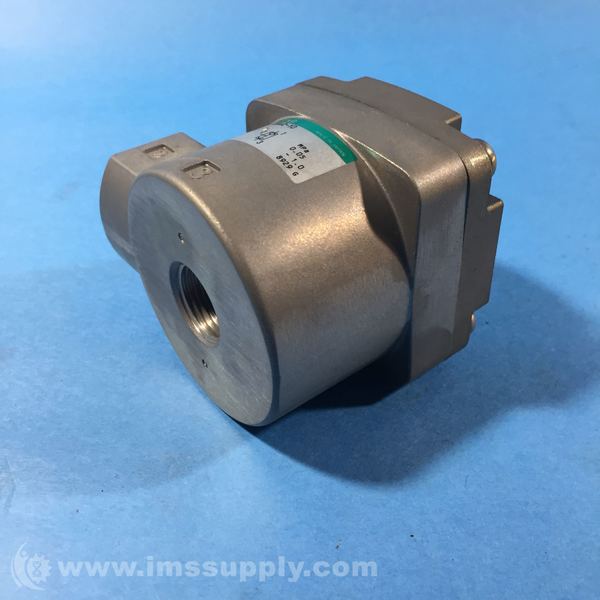

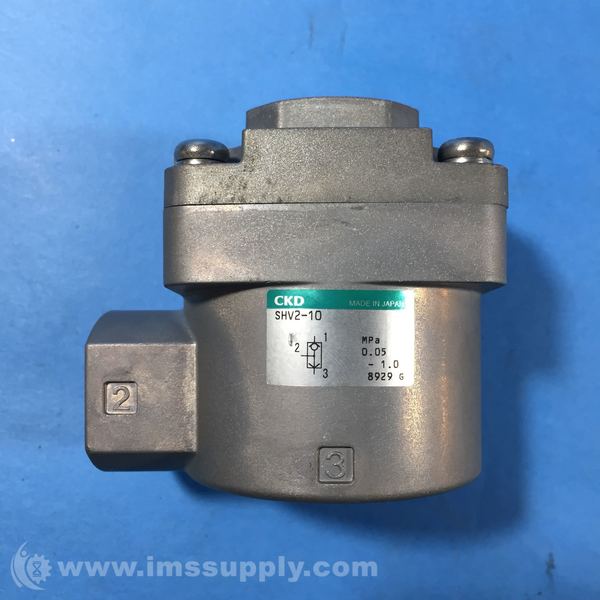

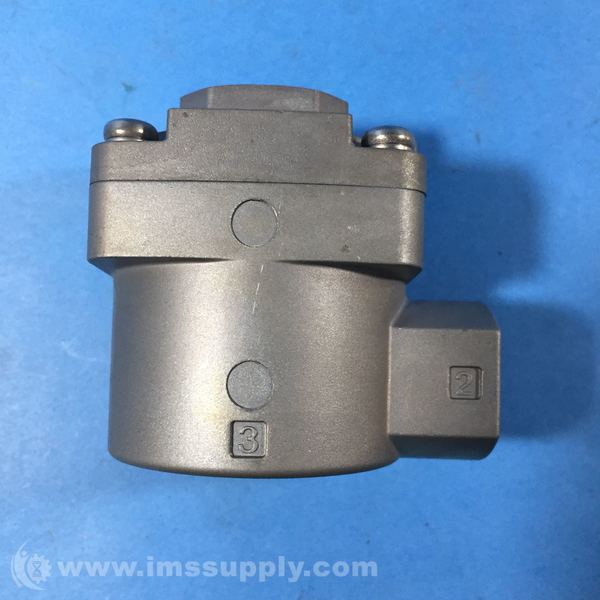

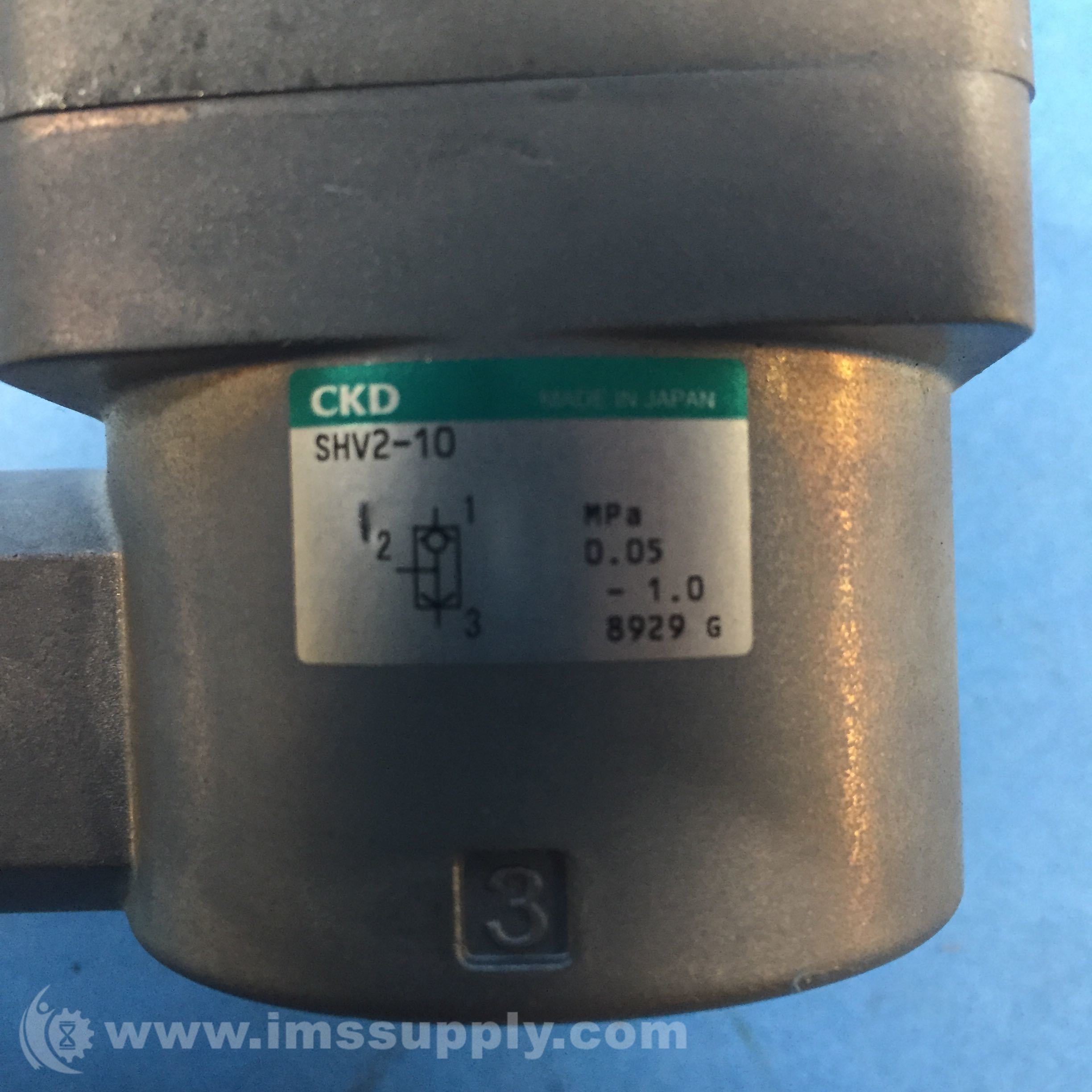

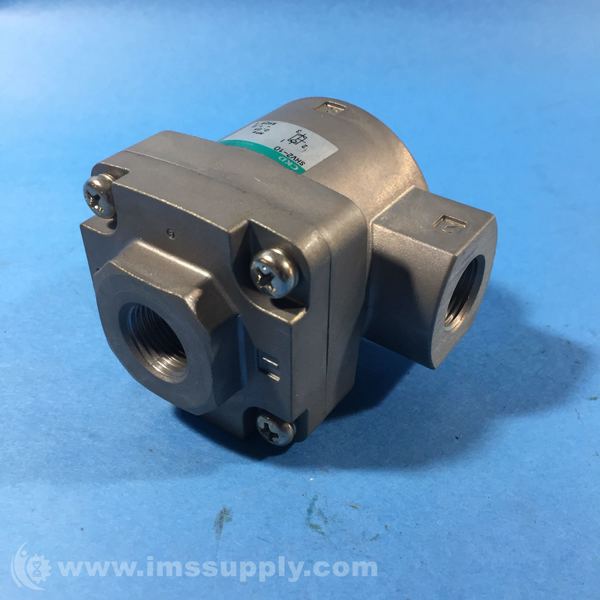

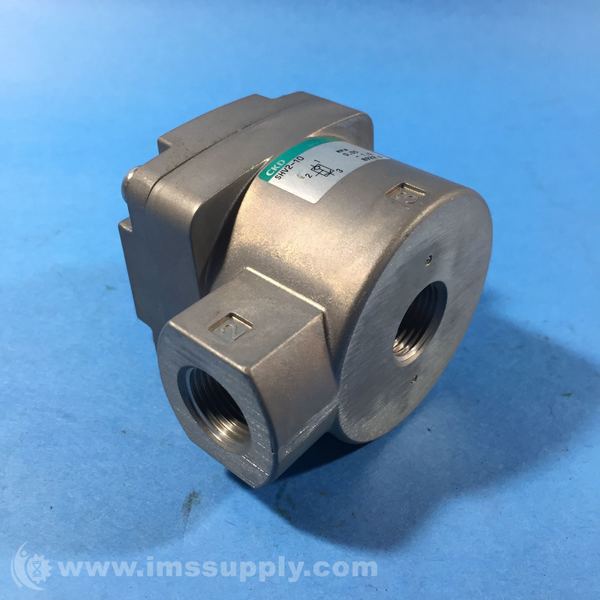

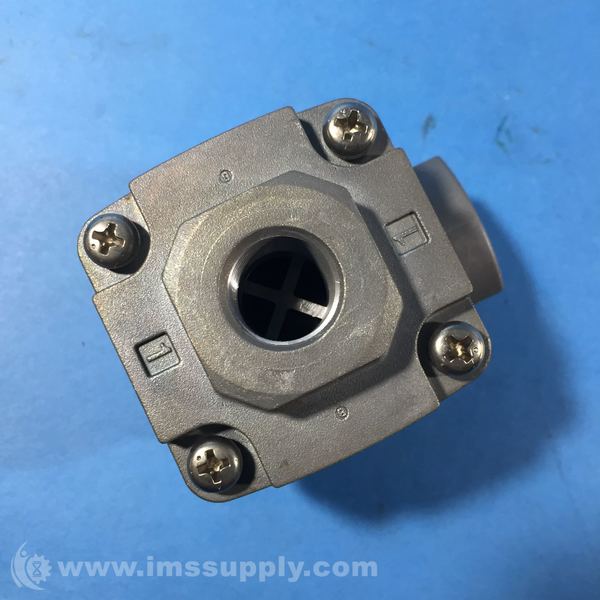

CKD SHV2-10 SHUTTLE VALVE
Quick Overview
Manufactured By: CKD
Manufacturer Part Number: SHV2-10
IMS Product Code: 1809200
Packaging: Sold Individually
Description:
CKD SHV2-10 Shuttle Valve
Shuttle valve for compressed air systems, featuring aluminum die-cast body and nitrile rubber O-ring. Dimensions: 53mm wide, 67mm deep, 63mm high. Operating pressure range: 0.05-1.0MPa.
Specifications
- Connection Port Size: Rc3/8
- Width: 53mm
- Depth: 67mm
- Height: 63mm
- Fluid: Compressed Air
- Minimum Required Flow Rate: 100L/min
- Minimum Operating Pressure: 0.05MPa
- Minimum Operating Differential Pressure: 0.05MPa
- Maximum Operating Pressure: 1.0MPa
- Proof Pressure: 1.5MPa
- Fluid Temperature: 5-60 degrees Celsius
- Ambient Temperature: 0-60 degrees Celsius
- Mounting Orientation: Free
- Body Material: Aluminum Die-Cast
- O-Ring Material: Nitrile Rubber
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
