CLEVELAND CONTROLS AFS-262-320 AIR PRESSURE SWITCH
Quick Overview
Manufactured By: CLEVELAND CONTROLS
Manufacturer Part Number: AFS-262-320
IMS Product Code: 2150040
Packaging: Sold Individually
Description:

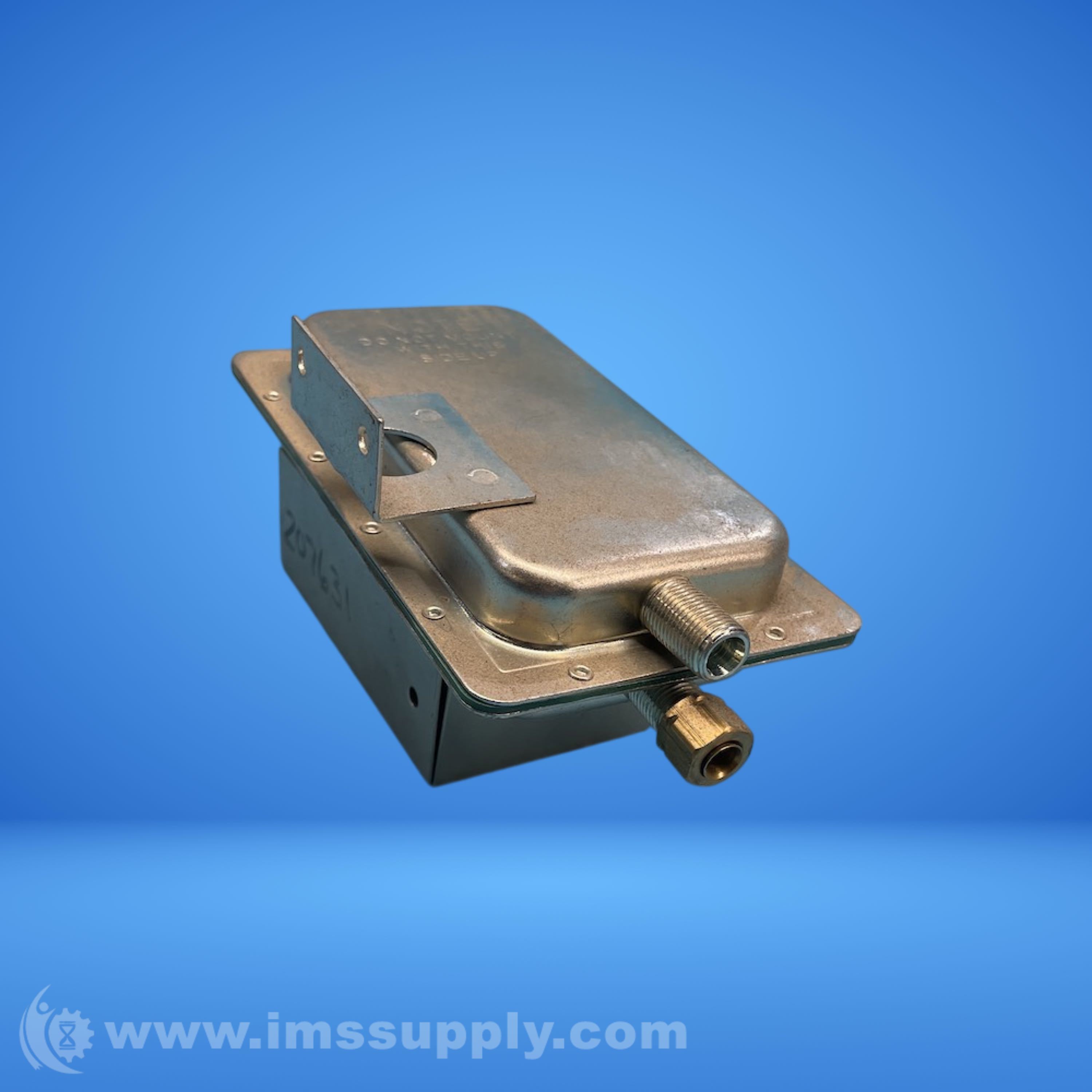

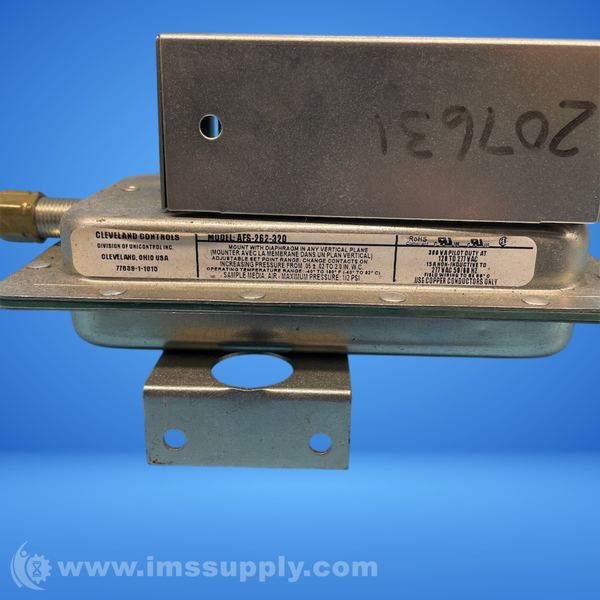

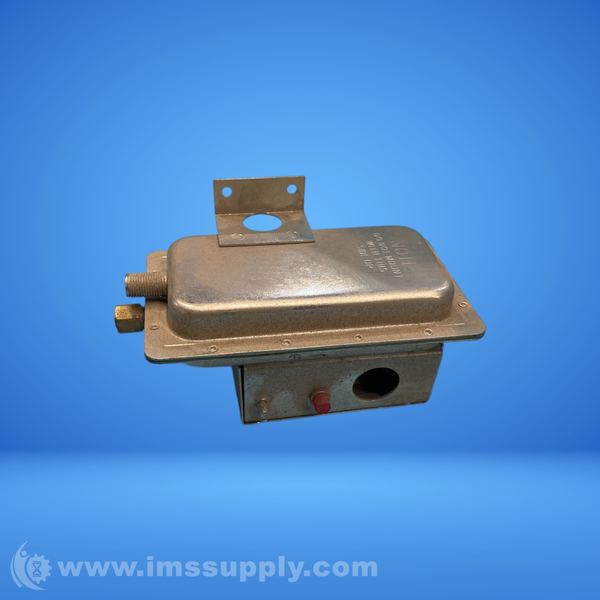

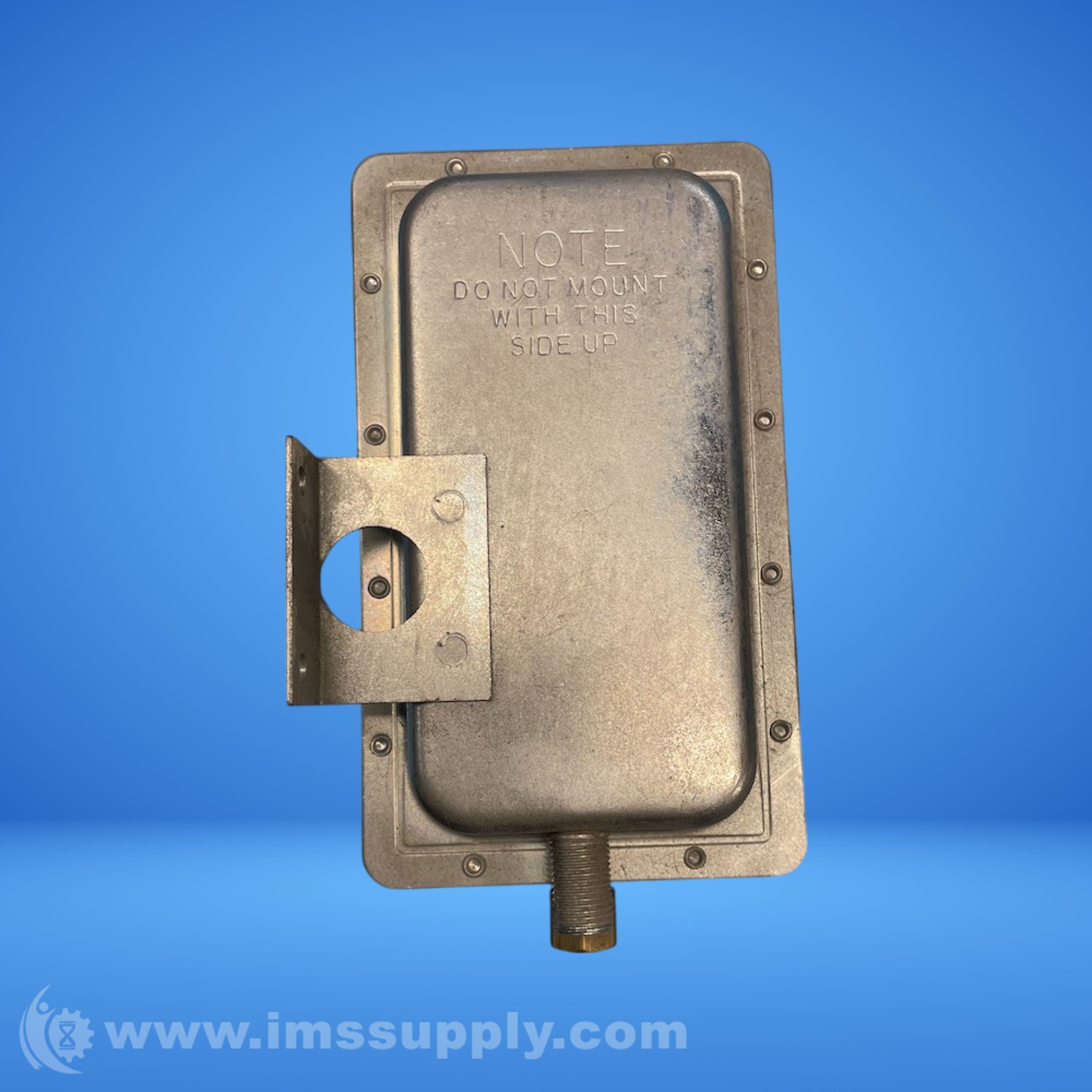

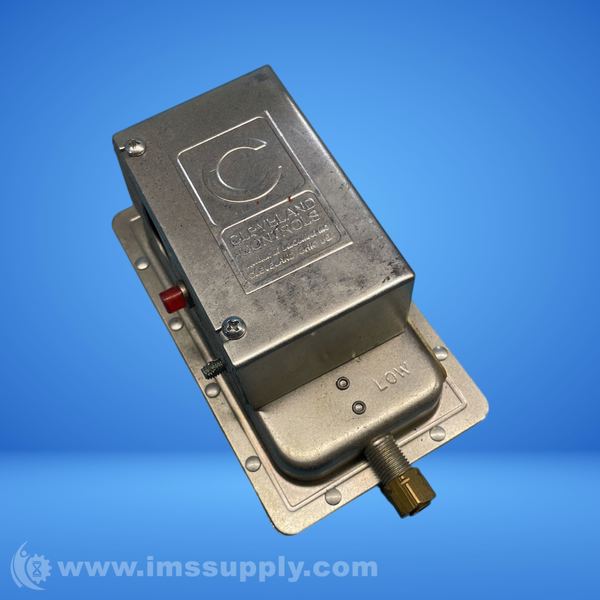

Cleveland Controls AFS-262-320 Air Pressure Switch
Air pressure switch with adjustable set point range of 0.05 to 2 inches W.C., normally open contact configuration, and 120V operation.
Specifications
- Field Adjustable Range: Operate 0.07" to 2.0" W.C.; Release 0.04" to 1.9" W.C.
- Set Point Range: 0.05 +/- 0.02" w.c. to 2.0" w.c.
- Mounting Position: Mount with the diaphragm in any vertical plane
- Maximum Pressure: 1/2 PSI
- Operating Temperature Range: -40F to 180F (-40C to 82C)
- Approximate Switching Differential: Progressive, increasing from 0.02 ± 0.01" W.C. at minimum set point to approximately 0.1 " W.C. at maximum set point
- Conduit Opening: one ?" diameter opening, accept ½" conduit
- Lifespan: 100,000 cycle minimum lifespan at ½ psi maximum pressure each cycle and at maximum rated electrical load
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
