CLIPPARD JFC-4R FLOW CONTROL
Quick Overview
Manufactured By: CLIPPARD
Manufacturer Part Number: JFC-4R
IMS Product Code: 1809621
Packaging: Sold Individually
Description:

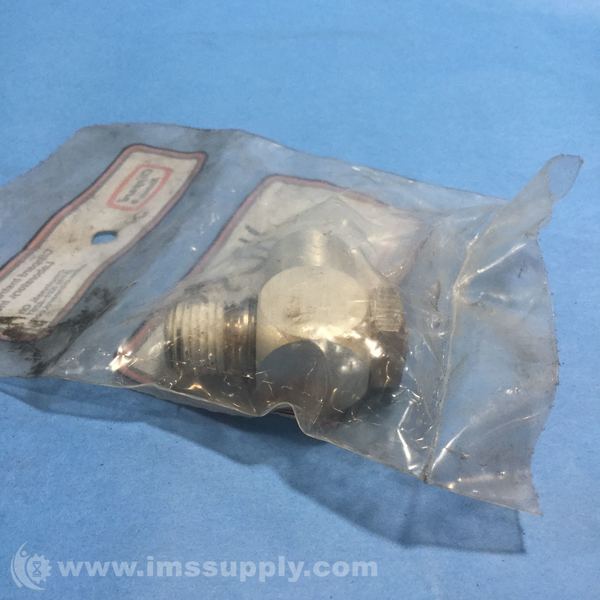

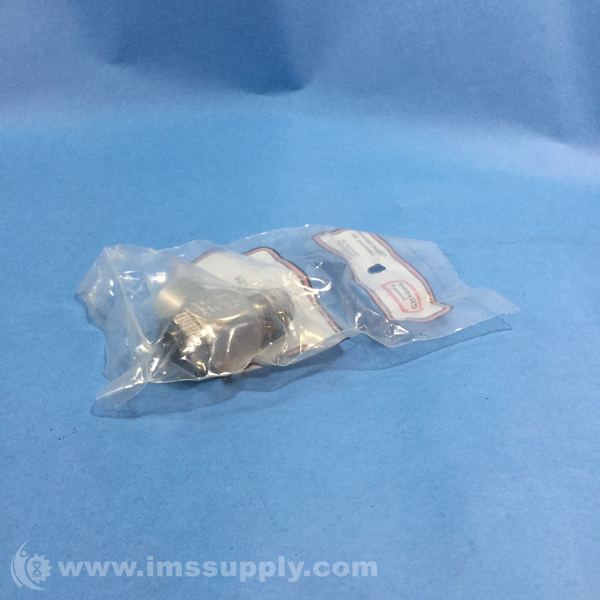

Clippard JFC-4R Flow Control
Combination needle and check valve flow control for controlling air flow from air cylinders, thereby controlling piston stroke speed.
Specifications
- Adjustment: Recessed Needle
- Air Flow: 1250 l/min @ 100 psig (adjustable)
- Flow Control Mount (Inlet/Outlet): 1/4" NPT/1/4" NPT F. Side
- Input PSI: 150 psig max.
- Material, Body: Nickel-Plated Brass, Plastic Resin, Stainless Steel Gripper Ring
- Material, Seals: Nitrile
- Medium: Air, Water or Oil
- Meter Out / Meter In: Meter Out
- Mount: Panel or In-Line
- Pressure to Open: Cracks at approximately 2 psig
- Seals: Nitrile
- Temperature Range: 32 to 230 degrees F
- Weight: 0.1300 lbs.
