CLIPPARD MAVO-3 3-WAY STEM VALVE
Quick Overview
Manufactured By: CLIPPARD
Manufacturer Part Number: MAVO-3
IMS Product Code: 1806190
Packaging: Sold Individually
Description:

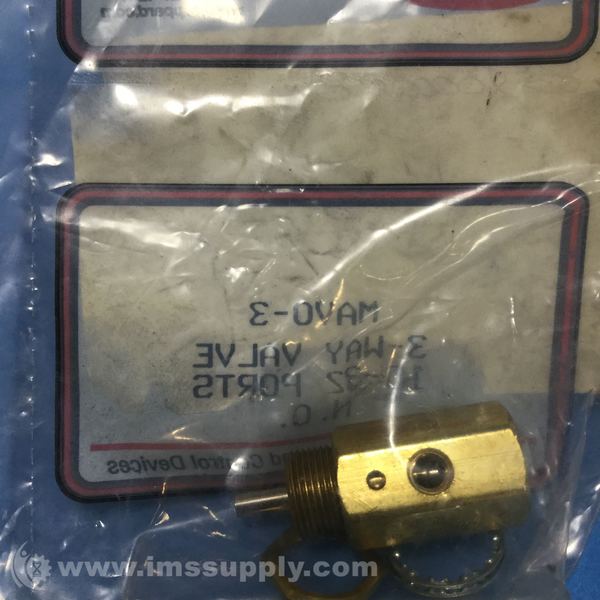

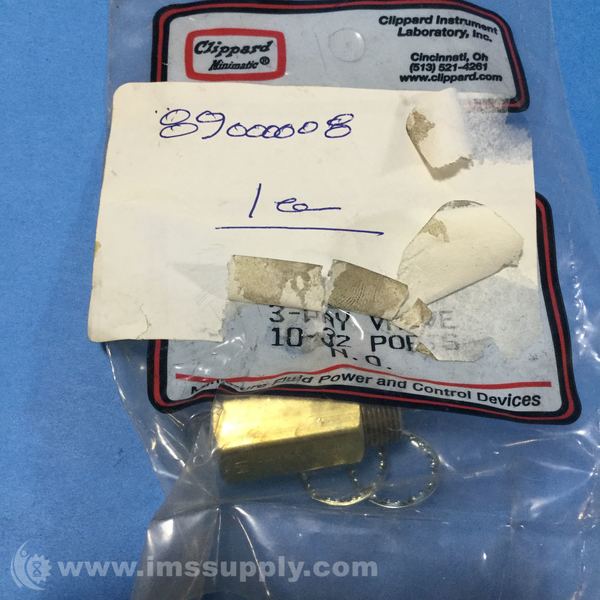

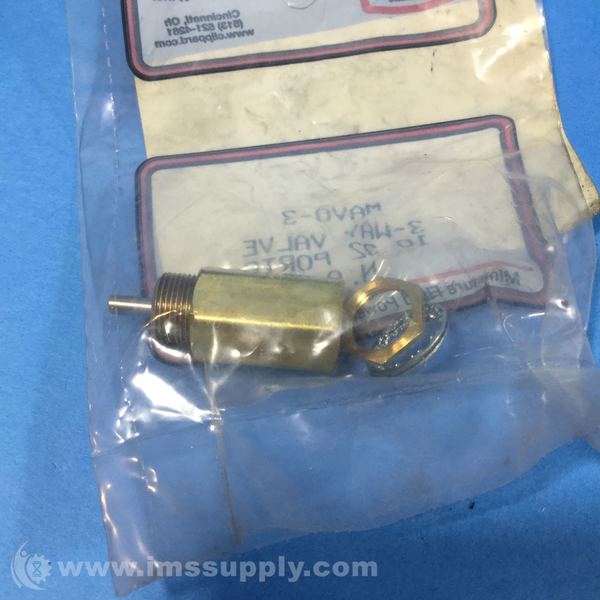

Clippard MAVO-3 3-Way Stem Valve
Specifications:
- Air Flow:170 l/min @ 50 psig; 280 l/min @ 100 PSIG
- Exhaust: To atmosphere through holes in body
- Force: 32 oz. Nominal
- Function: 3-Way
- Gasket: Nut & Lockwashers furnished.
- Inlet: #10-32
- Input PSI: 150 psig max.
- Material, Body: Brass, ENP Available
- Material, Spring: Stainless Stem & Spring
- Medium: Air, Water or Oil
- Mount: 15/32-32 thread.
- Outlet: #10-32
- Porting: Normally-Open
- Seals: Nitrile, FKM Optional
- Stem Travel: 1/8"
- Temperature Range: 32 to 230°F
