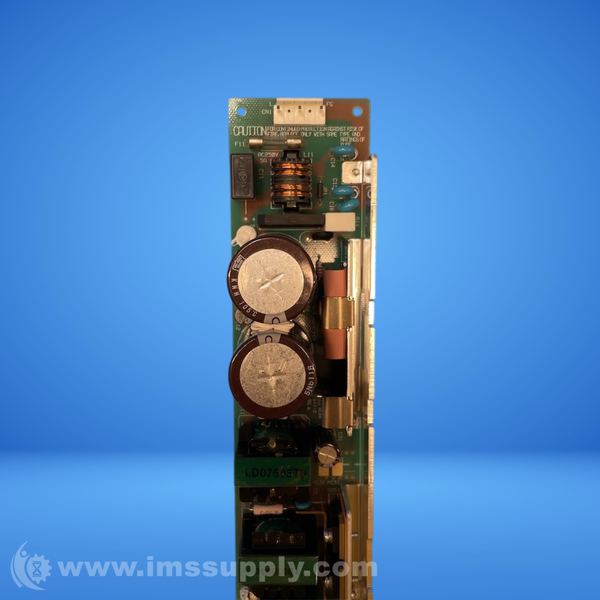

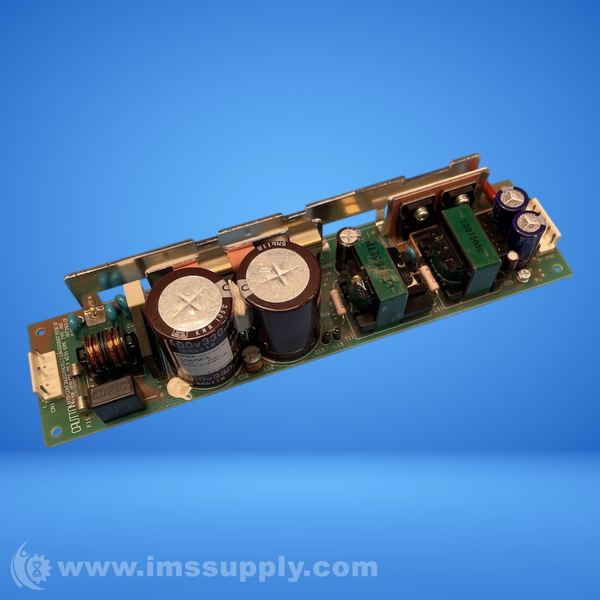

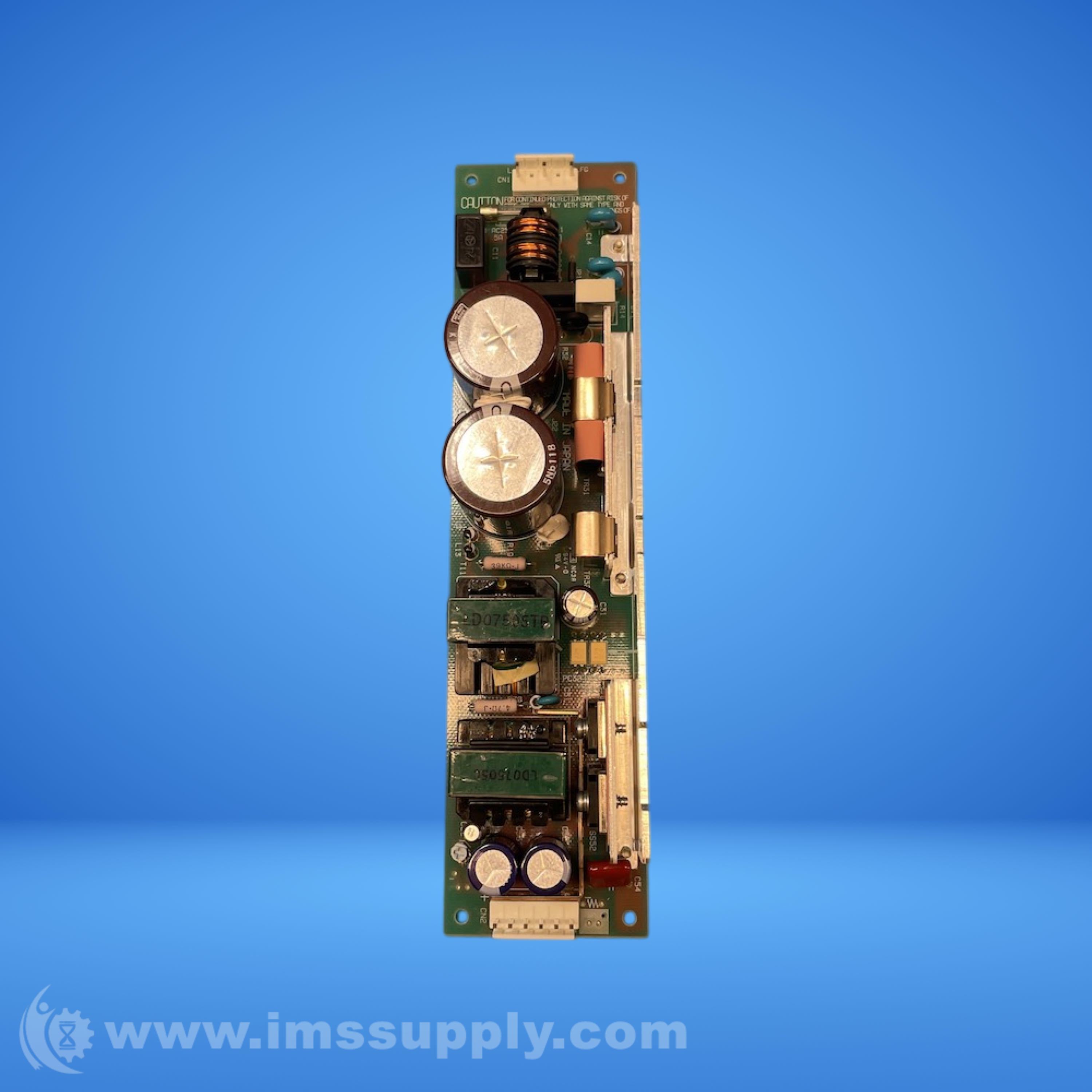

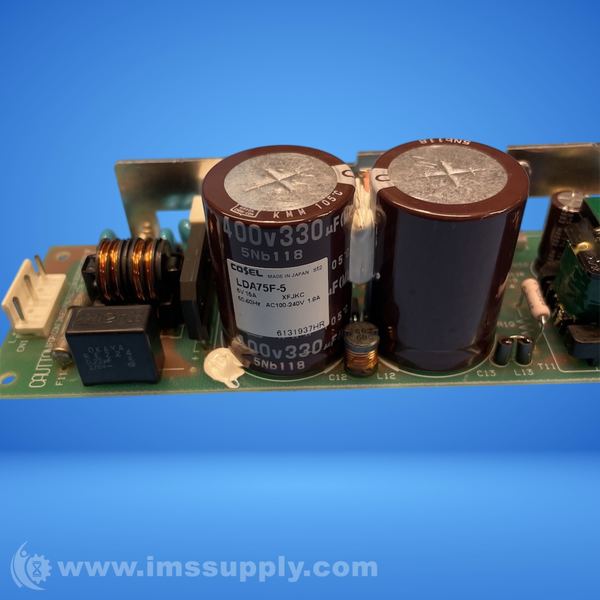

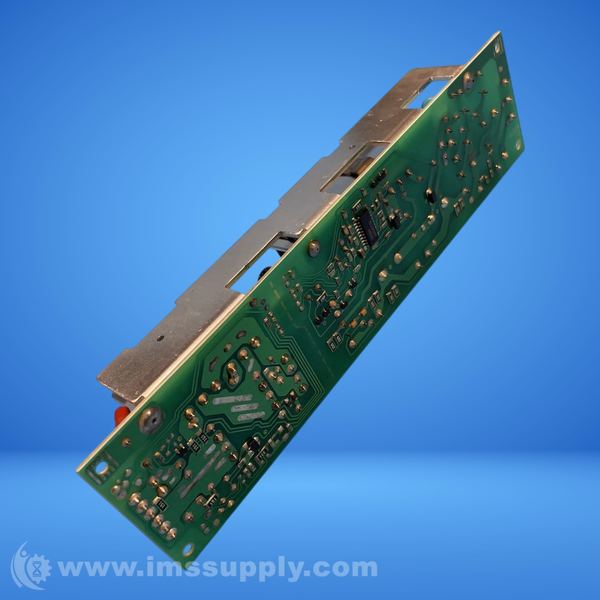

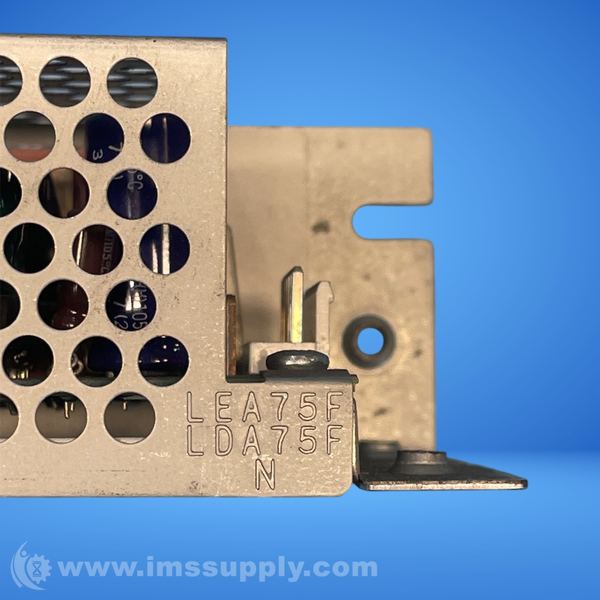

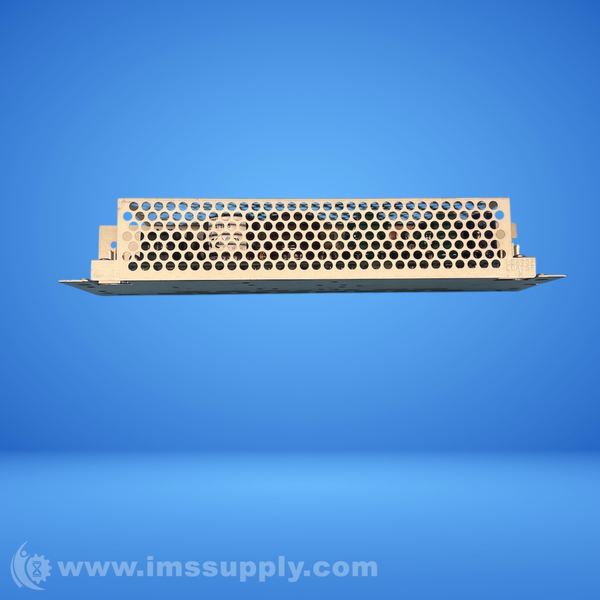

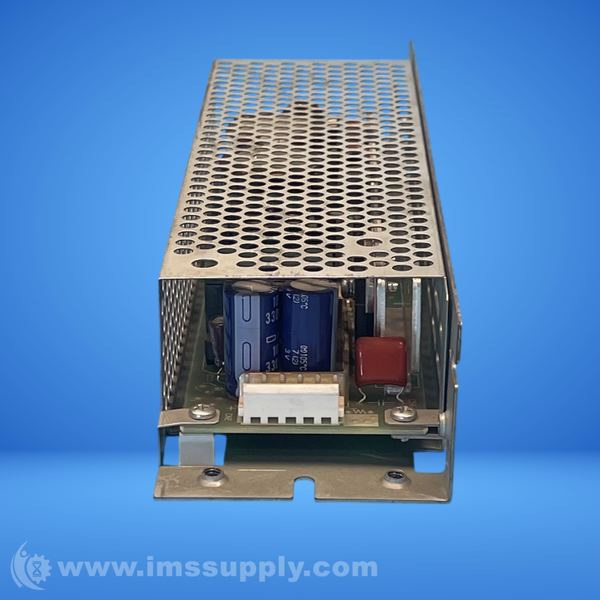

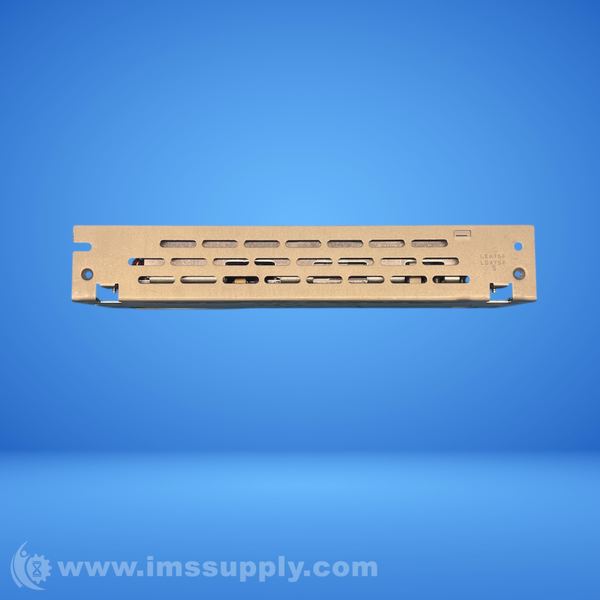

COSEL LDA75F-5 AC-DC POWER SUPPLY
Quick Overview
Manufactured By: COSEL
Manufacturer Part Number: LDA75F-5
IMS Product Code: 2121695
Packaging: Sold Individually
Description:
Cosel LDA75F-5 AC-DC Power Supply
Enclosed AC-DC power supply with 75W output power, 5V output voltage, and 15A output current. Input voltage range is 100-240VAC at 50/60Hz.
Specifications
- Input Voltage Range: AC85 - 264V (47-63Hz)
- Output Voltage: DC 5V
- Output Current: 15A
- Output Power: 75W
- Efficiency: Typically 85% (at 230VAC, 100% load)
- Ripple Noise: 100mVp-p max
- Operating Temperature: -10 to +70 degrees C (derating required above 50 degrees C)
- Storage Temperature: -20 to +75 degrees C
- Isolation Voltage: Input-Output: 3kVAC, Input-FG: 2kVAC, Output-FG: 500VAC
- Safety Standards: UL60950-1, C-UL, EN60950-1, EN50178, CE, RoHS compliant
- Dimensions (WxHxD): 99 x 30 x 97 mm (3.90 x 1.18 x 3.82 inches)
- Weight: 350g (0.77 lbs)
- Cooling Method: Convection cooling
- Protection: Overcurrent protection, Overvoltage protection, Thermal protection
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
