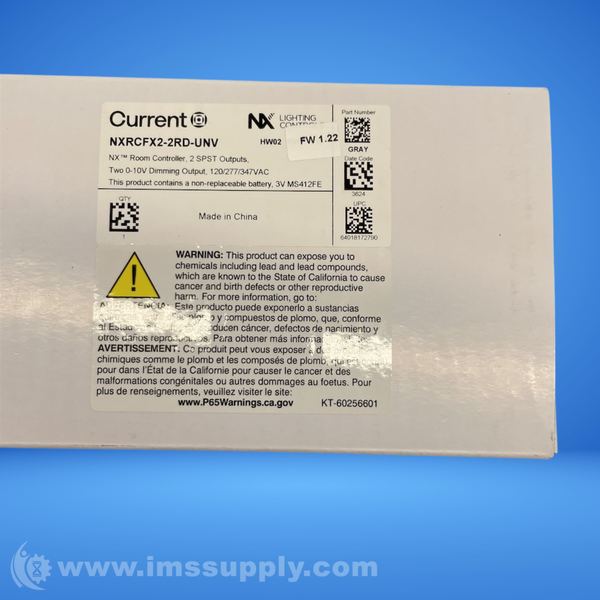

CURRENT NXRCFX2-2RD-UNV ROOM CONTROLLER
Quick Overview
Manufactured By: CURRENT LIGHTING
Manufacturer Part Number: NXRCFX2-2RD-UNV
IMS Product Code: 2143701
Packaging: Sold Individually
Description:
Current NXRCFX2-2RD-UNV Room Controller
NX Room Controller with 2 SPST Outputs and 2 0-10V Dimming Outputs
Specifications
- Voltage: 120/277/347VAC
- Width: 3.85"
- Height: 5.25"
- Depth: 1.37"
- Color: Gray
- Max Current: 20A Max
- Frequency: 50/60 Hz
- Low Voltage Port: 24VDC, 250mA MAX
- Communication: RS-485 Digital Communication Via Cat. 5 / Cat. 6 Network Cable
- Operating Temperature: 32F To 104F
- Certification: CSA Canada & US
- Output Rating: 16A Output Rating For Electronic LED Drivers/Ballasts, 20A Tungsten
- Dimming Control: 0-10V Interface For Full Range Dimming Control x 2
- Mounting: Plenum Rated For External J-Box Mounting
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships today if ordered in the next 12 hours and 19 minutes.
