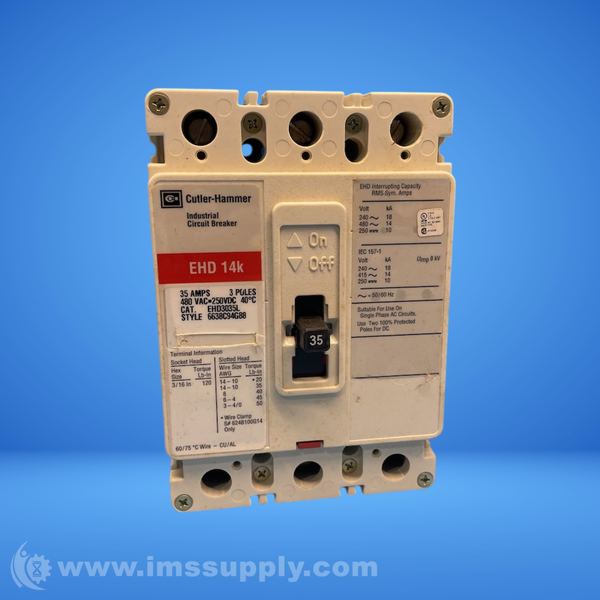

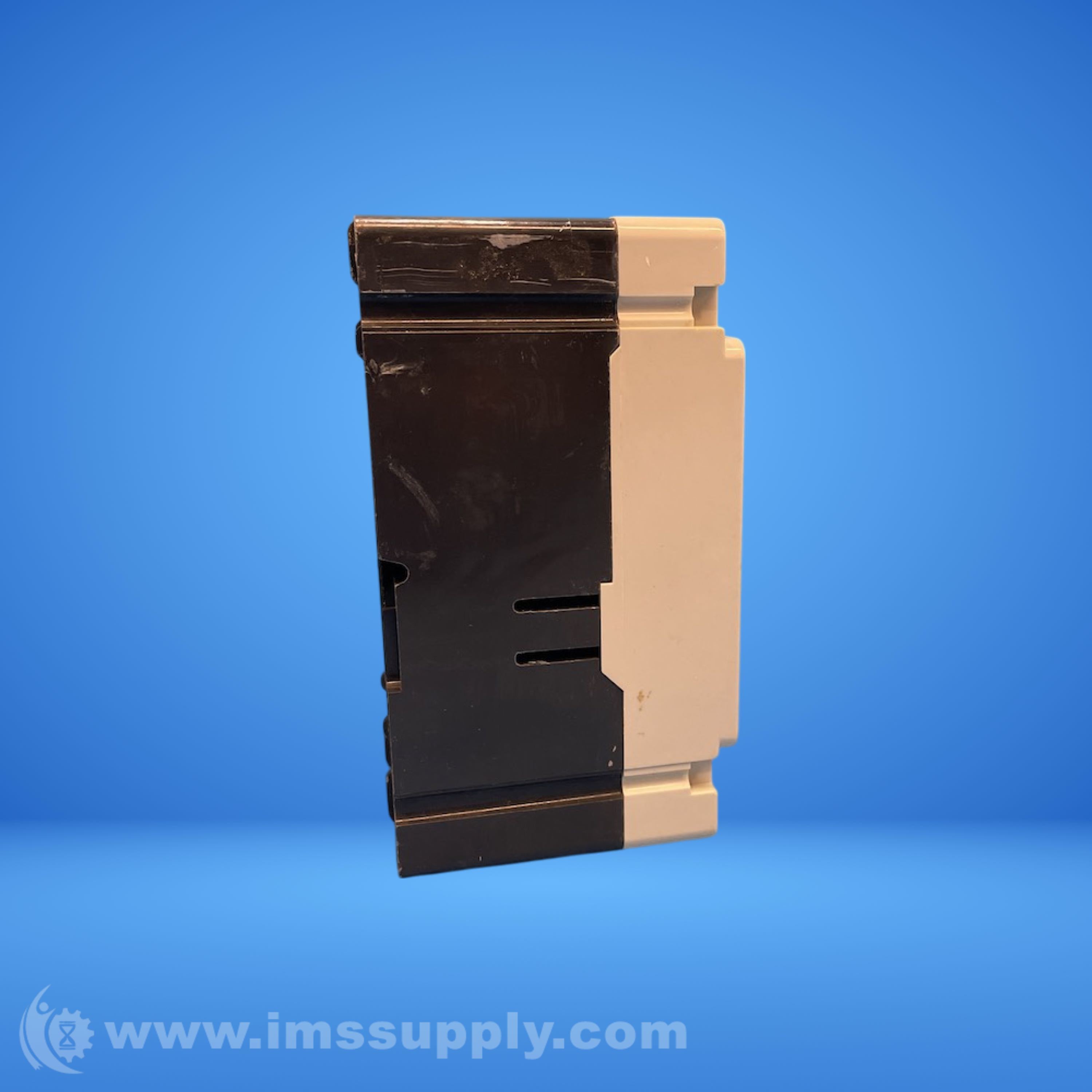

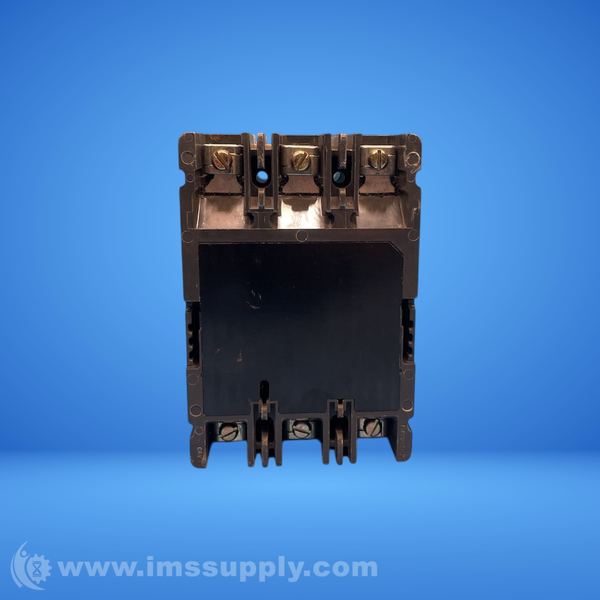

CUTLER HAMMER EHD3035L 3-POLE 35A CIRCUIT BREAKER
Quick Overview
Manufactured By: CUTLER HAMMER
Manufacturer Part Number: EHD3035L
IMS Product Code: 2124148
Packaging: Sold Individually
Description:
Cutler Hammer EHD3035L 3-Pole 35A Circuit Breaker
3-pole, 35A, 480V, thermal magnetic molded case circuit breaker with long-time and instantaneous trip functions. Series C, type EHD, feed-thru connection, 14kA@480V interrupting capacity.
Specifications
- AIC Ratings: 14kA@480V
- Amp: 35
- Amperage: 35
- Application: HACR, Switchboard
- Approval: UL 489, CSA C22.2
- Applicable Standard: IEC 60947-2, SABS 156, SEV 157-1, NFC 63-120, VDE0660, Federal Specification W-C-375b 13b
- Category: Molded Case
- Connection: Feed-Thru
- Contactor Type: Magnetic
- Current Rating: 35 A
- Current Rating: 35 Amp at 40 Deg C
- Dimensions (HxWxD): 6" x 4.13" x 3.38"
- Family: Series C
- Frame Amps: 100
- Frame Type: F Frame
- Frame Type: FD
- Functions: LI - Long-Time and Instantaneous
- Interrupting Rating: 18 Kiloamp at 240 Volt AC, 14 Kiloamp at 480 Volt AC, 10 Kiloamp at 250 Volt DC (UL), 18 Kiloamp at 220/240 Volt AC, 14 Kiloamp at 440 Volt AC, 10 Kiloamp at 250 Volt DC (IEC)
- Max Voltage: 480 VAC
- Maximum AC Voltage Rating: 480 Volt
- Maximum DC Voltage Rating: 250 Volt
- Mounting: Panel
- Neutral Pole: No
- Neutral Protection: No
- Number of Poles: 3
- Phase: 3
- Pole: 3
- Poles: 3
- Protection: Thermal Magnetic
- Short Circ Int Cap: 14kA@480V
- Size: 4.13 Inch Width x 3.38 Inch Depth x 6 Inch Height
- Terminal Type: Line and Load
- Trip Amps: 35
- Trip Unit: Fixed Thermal / Fixed Magnetic
- Type: EHD
- Volt: 480
- Voltage: 480
- Voltage Rating: 480
- Voltage Rating: 480 Volt AC 50/60 Hertz, 250 Volt DC
- Weight: 5 lbs

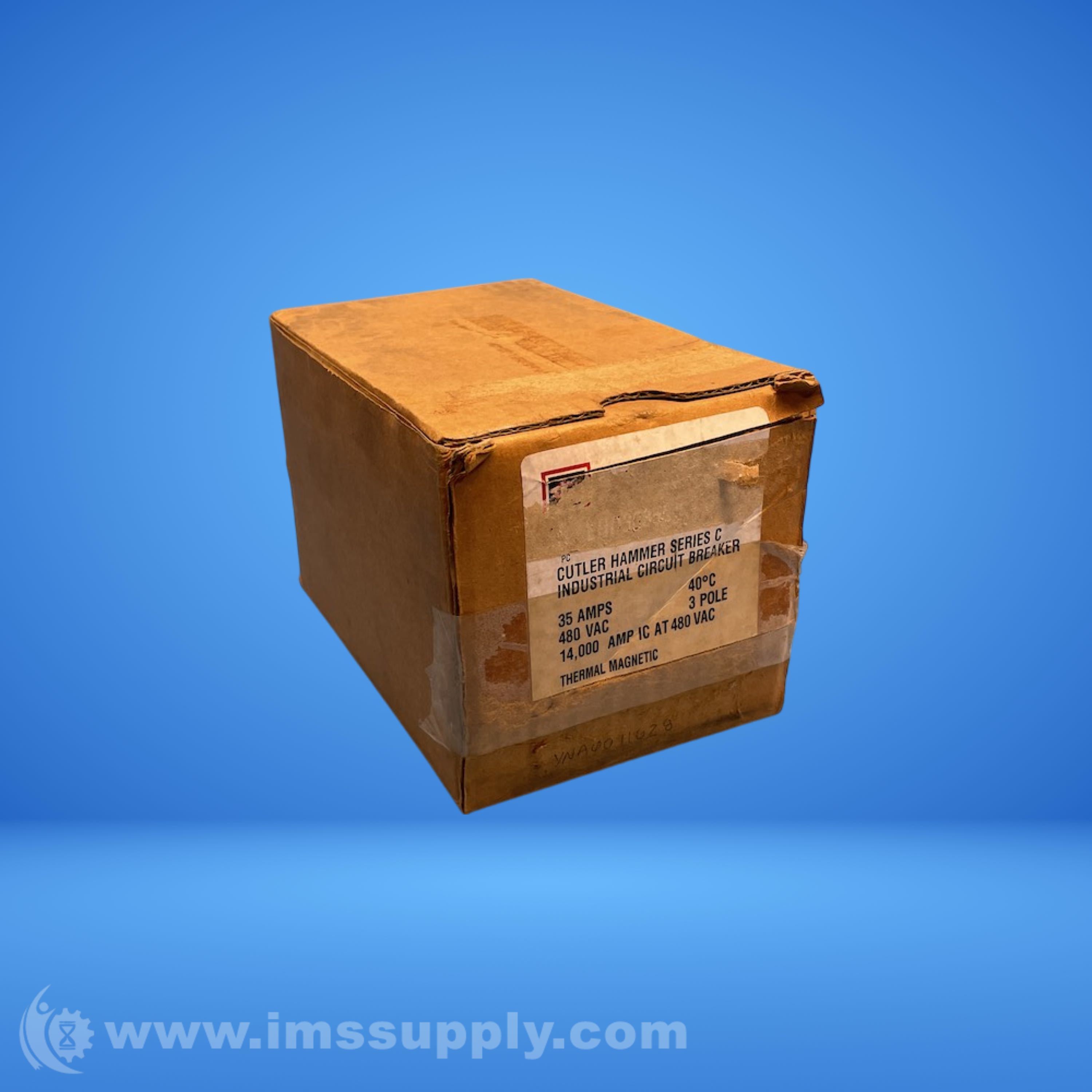

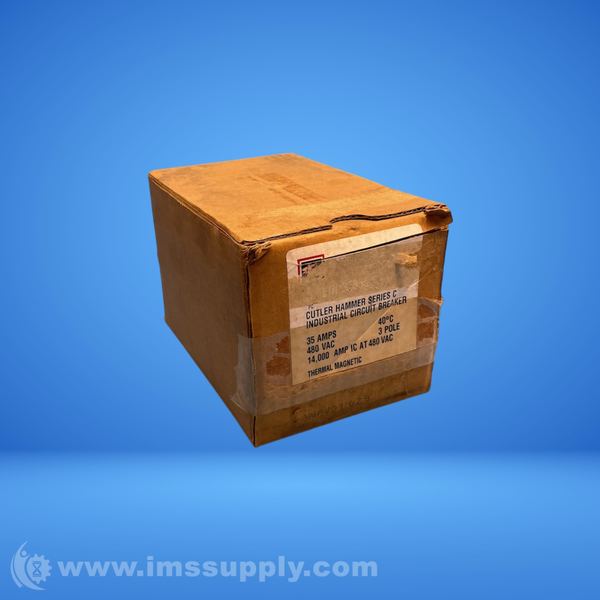

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
