CUTLER HAMMER EHD3045L MOLDED CASE CIRCUIT BREAKER
Quick Overview
Manufactured By: CUTLER HAMMER
Manufacturer Part Number: EHD3045L
IMS Product Code: 2124208
Packaging: Sold Individually
Description:

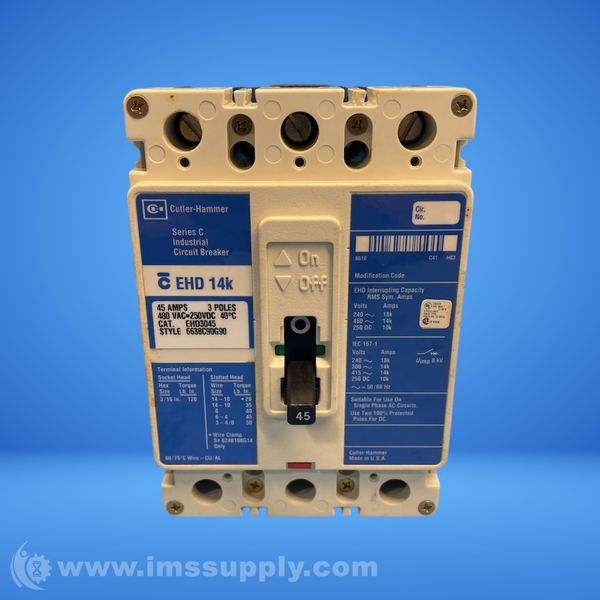

Cutler Hammer EHD3045L Molded Case Circuit Breaker
Molded case circuit breaker with thermal magnetic protection, 3 poles, 45A, 480V AC, 14kA interrupting capacity at 480V. Fixed thermal and fixed magnetic trip type.
Specifications
- AIC Ratings: 14kA@480V
- Amp: 45
- Amperage: 45
- Application: Branch Circuit, Commercial, Industrial
- Category: Molded Case
- Connection: Feed-Thru
- Country/Region of Manufacture: United States
- Current Rating: 45 A
- Current Type: AC
- Dimensions (HxWxD): 6" x 4.13" x 3.38"
- Family: Series C
- Frame Type: F Frame
- Functions: LI - Long-Time and Instantaneous
- Item Height: 6 in
- Item Width: 4.13 in
- Max Voltage: 480 VAC
- Mounting: Panel
- Number of Poles: 3
- Pole: 3
- Protection: Thermal Magnetic
- Short Circ Int Cap: 14kA@480V
- Trip Unit: Fixed Thermal / Fixed Magnetic
- Type: EHD
- UL Standard: 489
- Volt: 480
- Voltage (AC): 480 V-AC
- Voltage Rating: 480
- Weight: 4.5 lbs
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 2 hours and 19 minutes.
