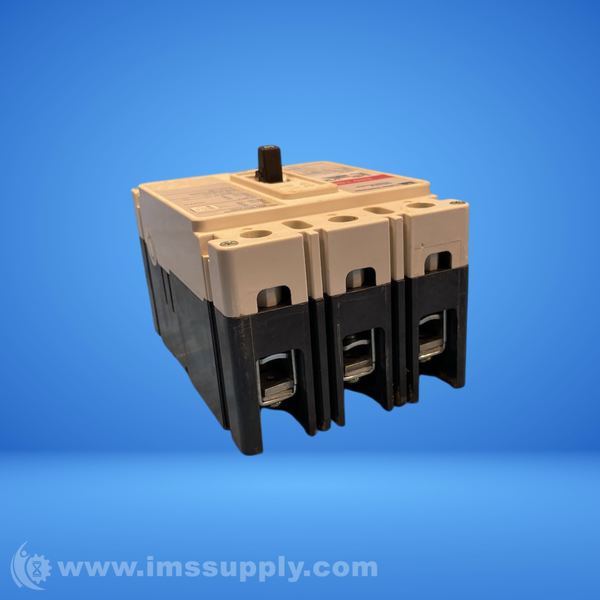

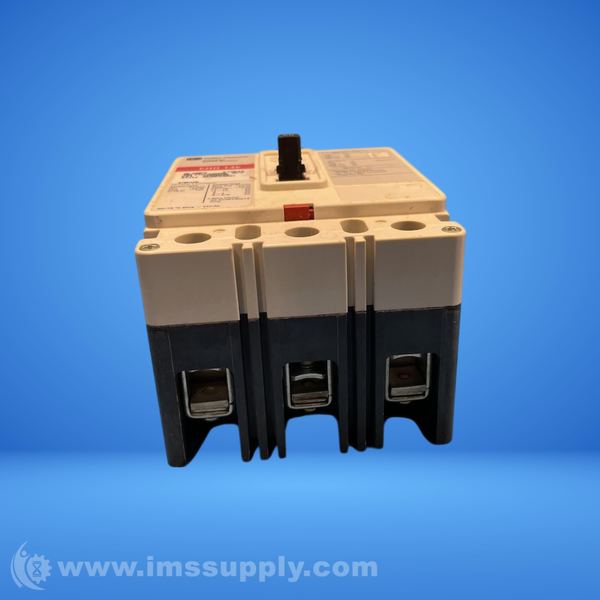

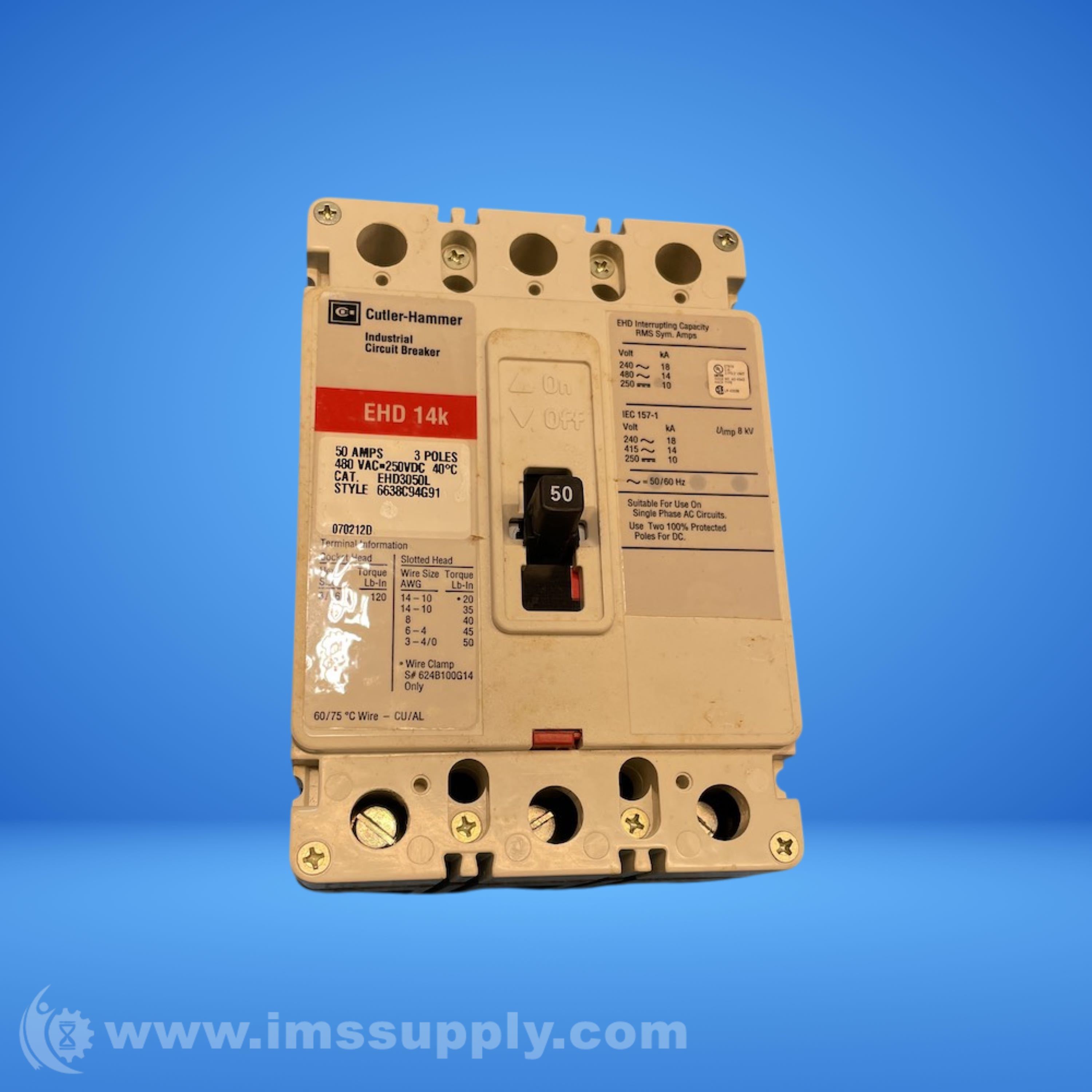

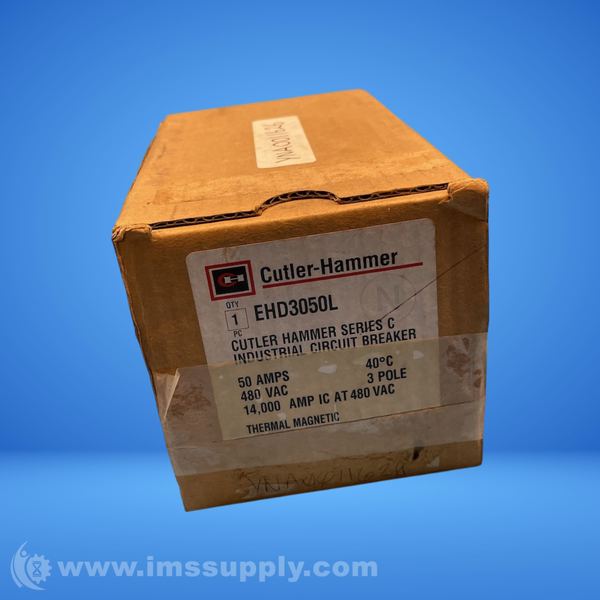

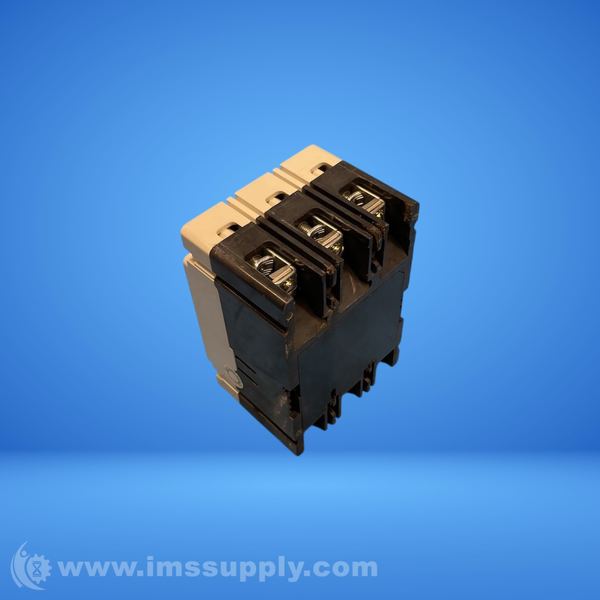

CUTLER HAMMER EHD3050L 3 POLE CIRCUIT BREAKER
Quick Overview
Manufactured By: CUTLER HAMMER
Manufacturer Part Number: EHD3050L
IMS Product Code: 2123917
Packaging: Sold Individually
Description:
Cutler Hammer EHD3050L 3 Pole Circuit Breaker
3 pole, 50 ampere, 480V, thermal magnetic circuit breaker with non-interchangeable trip functions and line & load side lug terminals.
Specifications
- Series: EHD
- Voltage: 480 VAC/250 VDC
- Poles: 3
- Amperage: 50 A
- Interrupt Rating: 14 kA
- Trip Type: Long Time and Instantaneous
- Mounting Type: Panel
- Frequency Rating: 50/60 Hz
- Temperature Rating: 40 degrees C
- Dimensions: 6" x 4.13" x 3.38"
- Weight: 5 lbs
- Wire Size: 14 to 1/0 AWG
- Application: For panelboard, switchboard, motor control center and busway applications
- Standard & Approvals: UL Listed, CSA Certified, Federal Spec. W-C-375b
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 2 hours and 19 minutes.
