CUTLER HAMMER EHD3100L 100A 3P CIRCUIT BREAKER

Starting At: $300.00

Quick Overview

Manufactured By: CUTLER HAMMER
Manufacturer Part Number: EHD3100L
IMS Product Code: 2124156
Variation: Unspecified
Unspecified Series: C
Packaging: Sold Individually

Description:

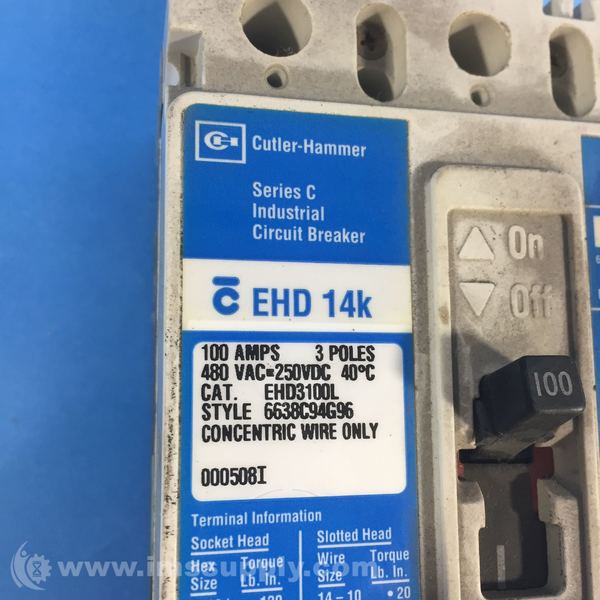

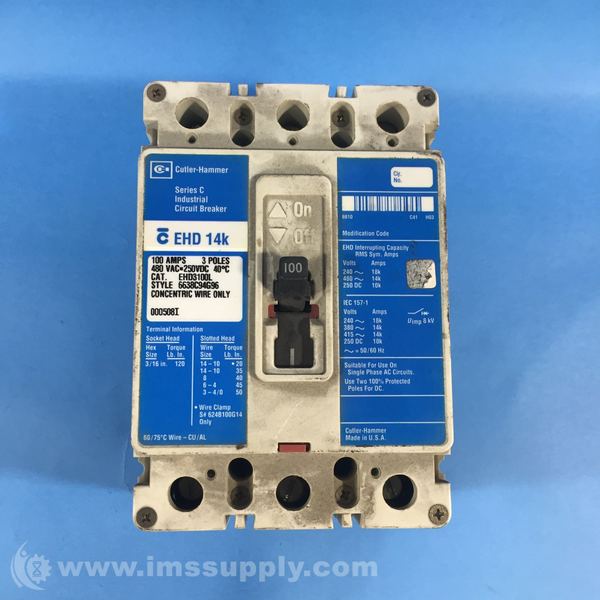

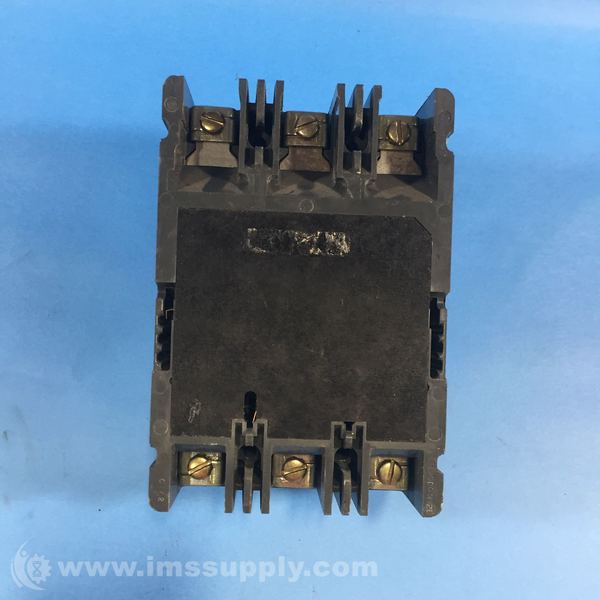

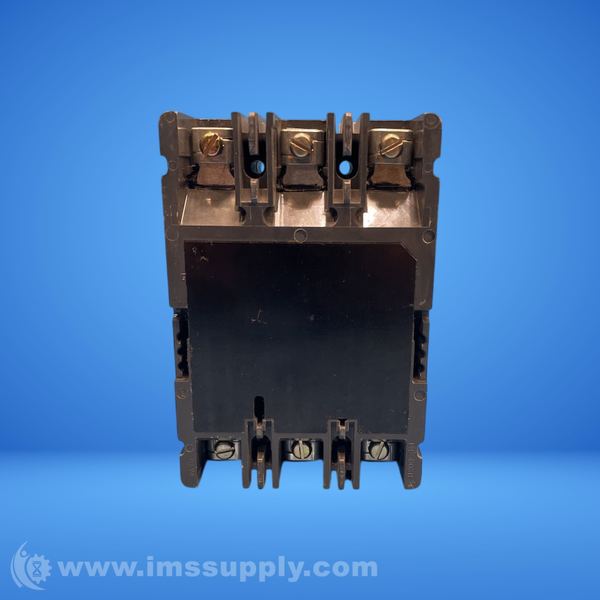

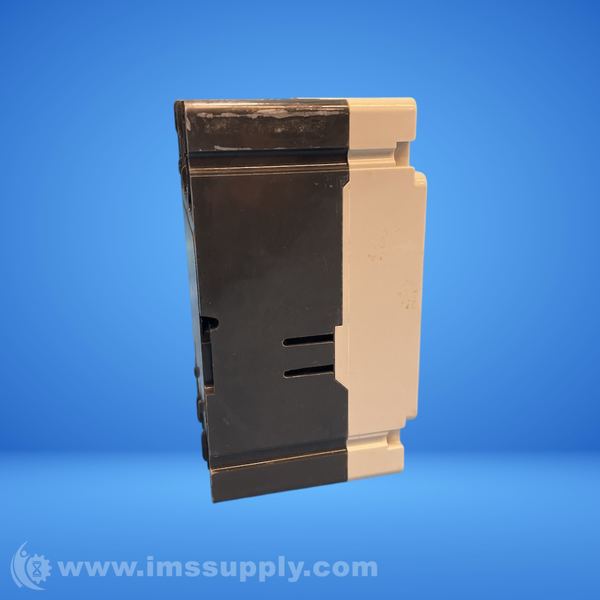

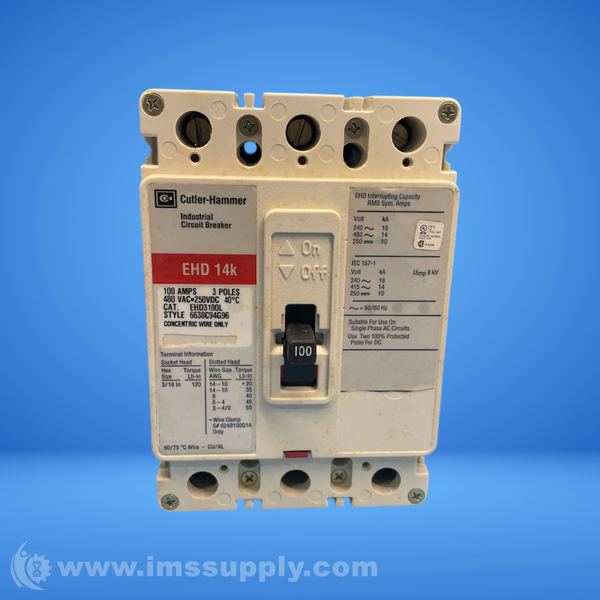

Cutler Hammer EHD3100L 100A 3P Circuit Breaker

Three-pole, 100A, 480V, molded case circuit breaker with thermal-magnetic trip unit and line & load side lug terminals.

Specifications

  • AIC Ratings: 14kA@480V
  • Amp: 100
  • Amperage Rating: 100 A
  • Application: For panelboard, switchboard, motor control center and busway applications
  • Brand: Cutler-Hammer
  • Category: Molded Case
  • Connection Type: Line and Load Lug
  • Dimensions (HxWxD): 6" x 4.13" x 3.38"
  • Dimensions: 3.38 x 4.13 x 6 in
  • Enclosure Type: NEMA AB1-1993
  • Family: Series C
  • Frame: F
  • Frame Type: F Frame
  • Frequency Rating: 50/60 Hz
  • Functions: LI - Long-Time and Instantaneous
  • Interrupt Rating: 14 kA
  • Manufacturer: Cutler-Hammer
  • Max Voltage: 480 VAC
  • Mounting Type: Panel
  • Neutral Pole: No
  • Neutral Protection: No
  • Number Of Poles: 3
  • Phase: 3
  • Poles: 3
  • Protection: Thermal Magnetic
  • Series: C
  • Standard & Approvals: UL Listed, CSA Certified, Federal Spec. W-C-375b
  • Temperature Rating: 40 deg C
  • Trip Type: Long Time and Instantaneous
  • Type: Type EHD Thermal Magnetic
  • UL Standard: 489
  • Voltage: 480
  • Voltage Rating: 480 VAC/250 VDC
  • Volt: 480
  • Weight: 4.6 lbs
  • Wire Size: 14 to 1/0 AWG


New - Open Box:

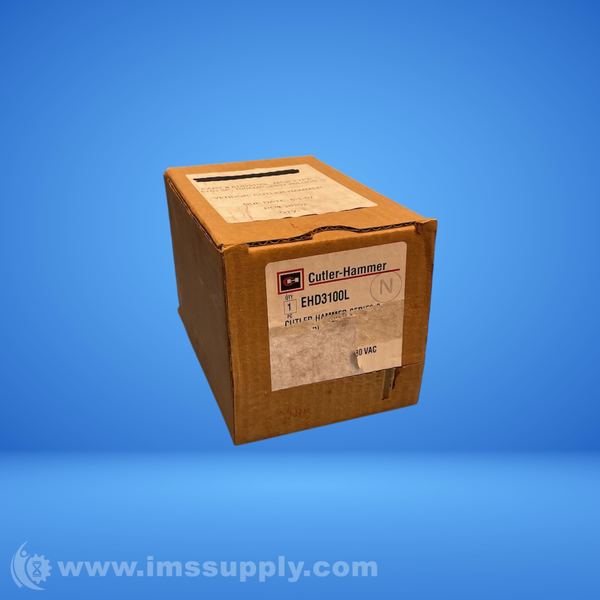

A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.

Availability: 1 In Stock

Ships Tomorrow

Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.


Product images shown are for illustration purposes only and may not be an exact representation of the product you will receive. IMS Supply is not an authorized distributor, reseller or representative of Cutler Hammer. All product names, trademarks, brands and logos used on this site are the property of their respective owners and are used for identification purposes only.
