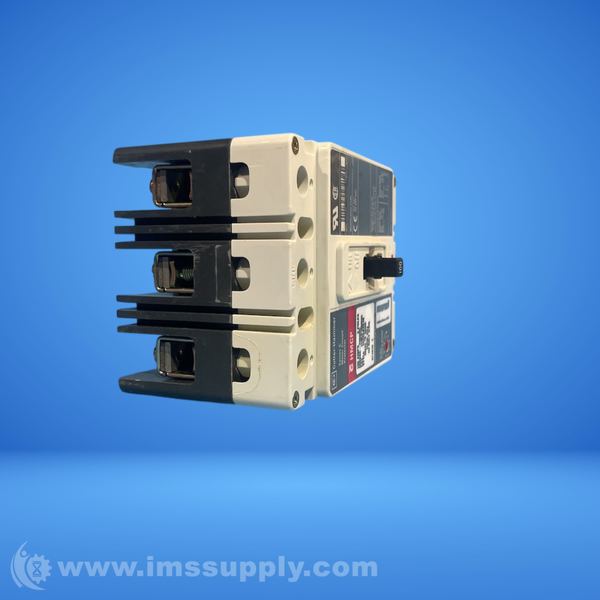

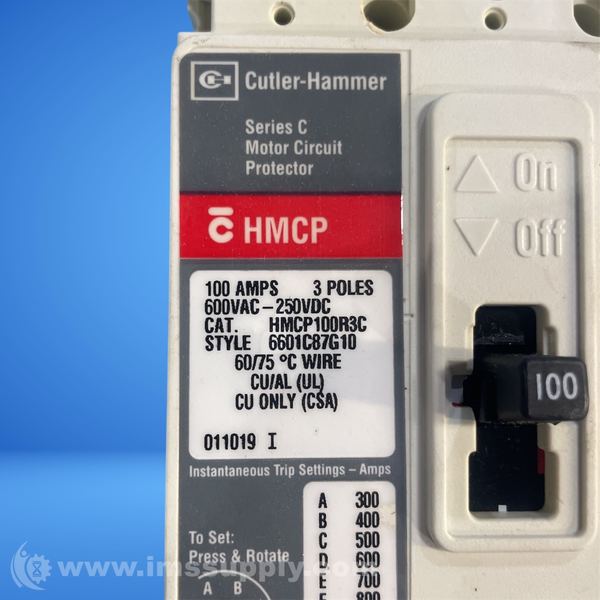

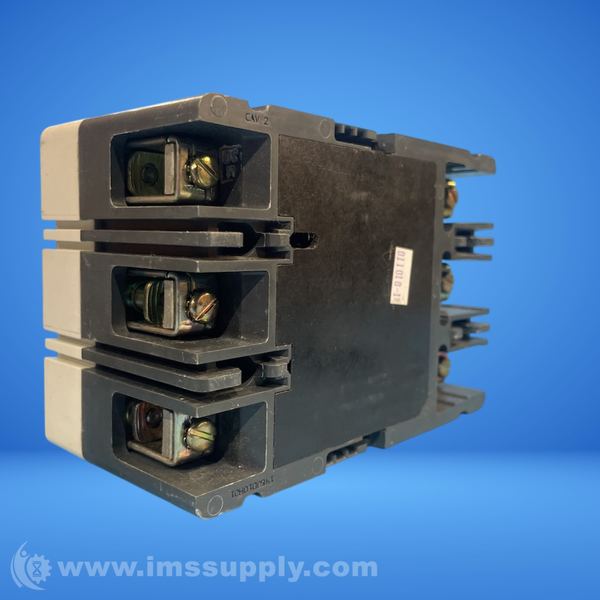

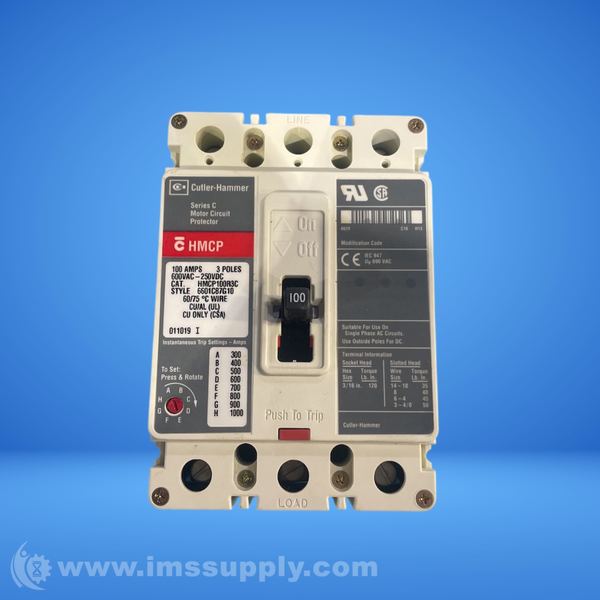

CUTLER HAMMER HMCP100R3C 3-POLE MOTOR CIRCUIT PROTECTOR
Quick Overview
Manufactured By: CUTLER HAMMER
Manufacturer Part Number: HMCP100R3C
IMS Product Code: 2163607

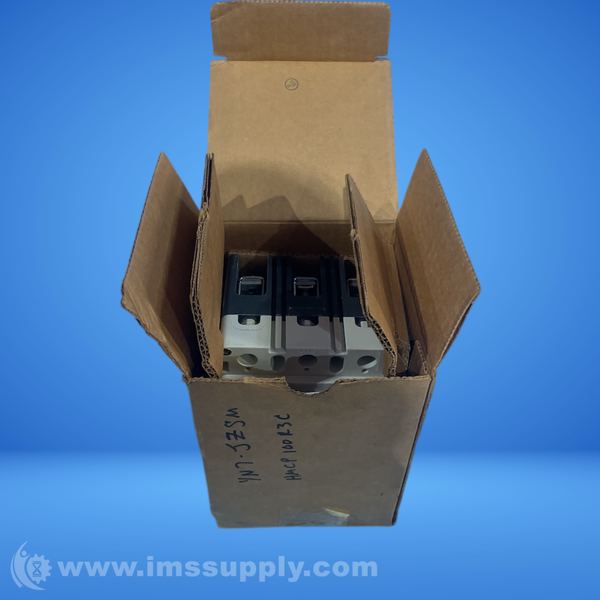

Packaging: Sold Individually
Description:
Cutler Hammer HMCP100R3C 3-Pole Motor Circuit Protector
3-pole, 100A motor circuit protector with magnetic-only trip unit and adjustable instantaneous trip range of 300-1000A. Rated 65 kAIC at 480V. For use with Eaton Series C F-Frame motor starters and motor control centers.
Specifications
- Amperage: 100A
- Voltage: 240VAC, 480VAC, 600VAC, 250VDC
- Poles: 3
- Phase: 3
- AIC Rating: 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 10kA @ 250VDC
- Trip Technology: Magnetic Only
- Trip Function: Instantaneous Only
- Trip Adjustability: Adjustable Magnetic
- Wire Gauge: 14 AWG - 1/0 AWG (Cu)
- Terminal Type: Lugs
- Mounting Style: Unit Mount
- Standards: CSA C22.2 No. 5.1, IEC 60947-2, NEMA AB 1, UL 489
- Approval: CE, CSA, UL
