CUTLER HAMMER HMCP100R3CA13 MOTOR CIRCUIT PROTECTOR
Quick Overview
Manufactured By: CUTLER HAMMER
Manufacturer Part Number: HMCP100R3CA13
IMS Product Code: 1802934
Packaging: Sold Individually
Description:
Cutler Hammer HMCP100R3CA13 Motor Circuit Protector
Three-pole motor circuit protector with 100A continuous current rating, 600V AC/250V DC voltage, and adjustable trip setting from 300-1000A. Features non-aluminum line and load terminals and 2A-2B auxiliary switch with right pigtail rear connection.
Specifications
- Number of Poles: 3
- Continuous Amps: 100A
- Voltage Maximum: 600Vac, 250Vdc
- Trip Setting Amps: 300 to 1000A

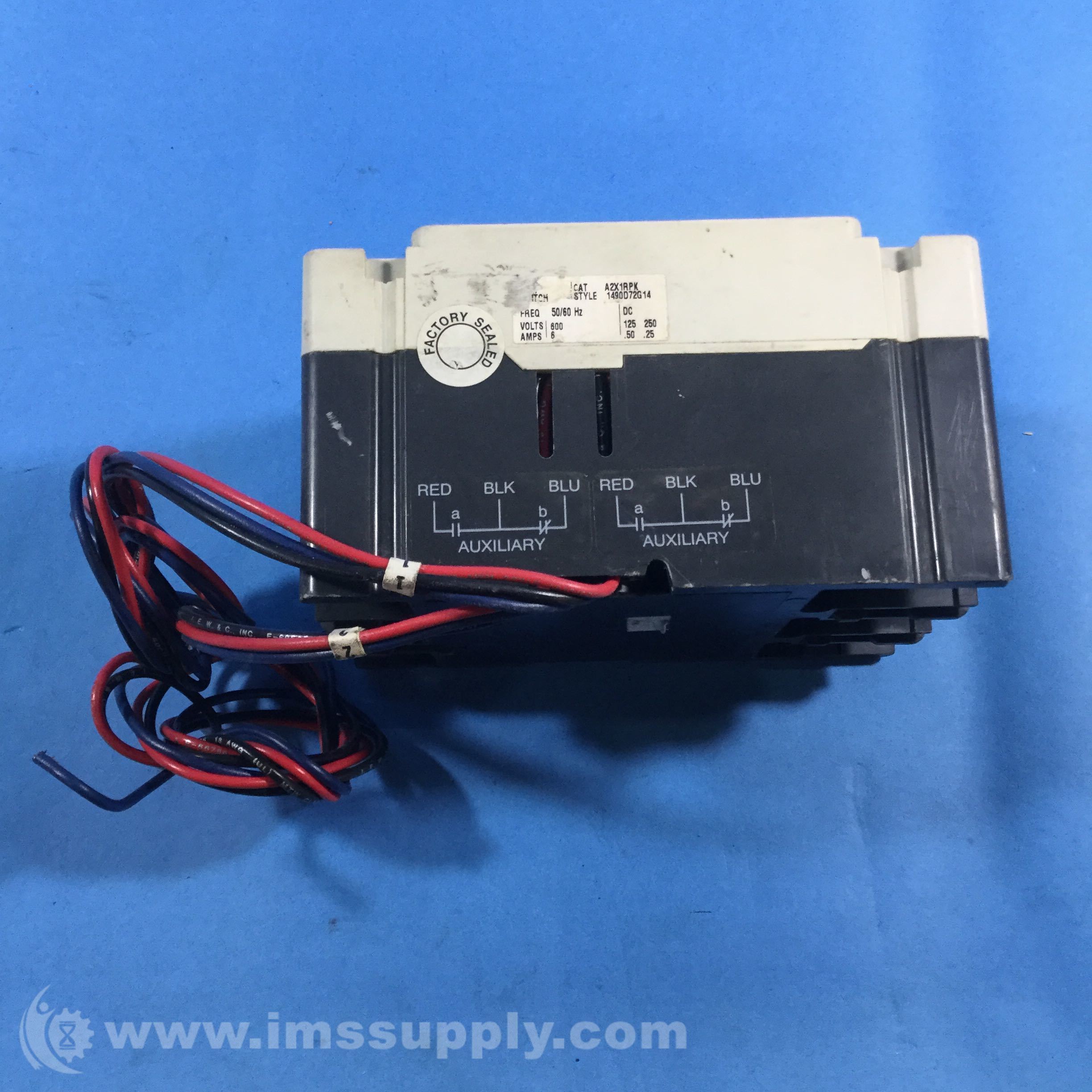

- Auxiliary Switch: 2A-2B Right Pigtail Rear
- Terminals: Non-Aluminum Line and Load
- Dimensions: 3.38 x 4.13 x 6.00 in. (86 x 105 x 152mm)
- Frame Type: J-K Frame
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
