DANFOSS VLT 6032 AC DRIVE
Quick Overview
Manufactured By: DANFOSS
Manufacturer Part Number: VLT 6032
IMS Product Code: 2148097
Packaging: Sold Individually
Description:

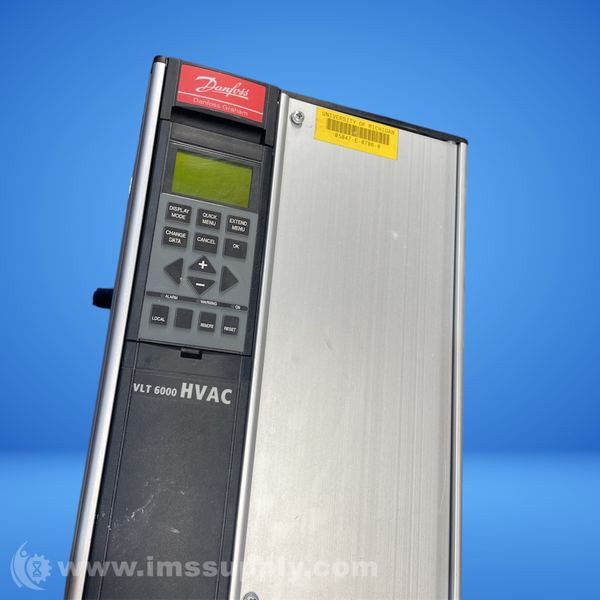

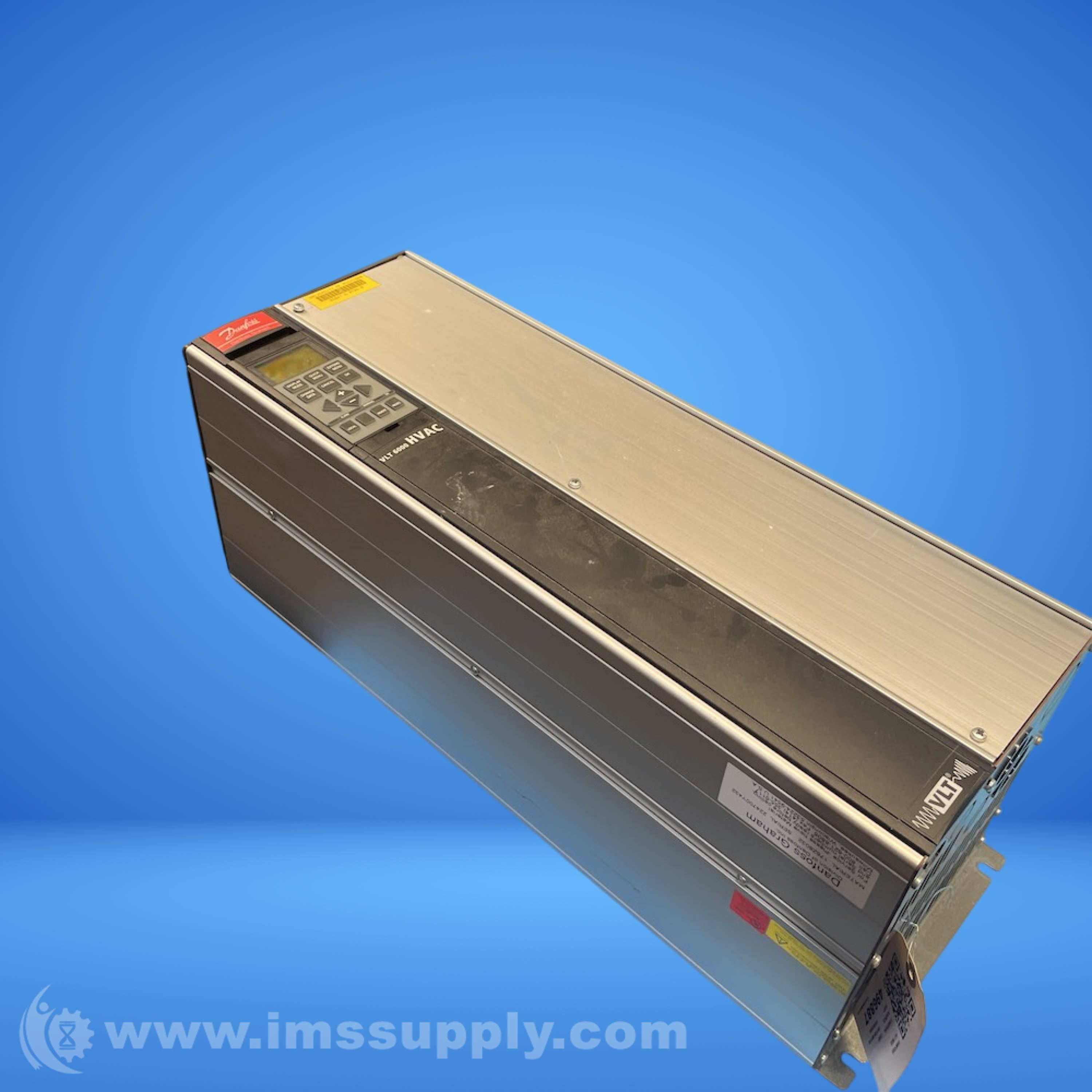

Danfoss VLT 6032 AC Drive
Danfoss VLT 6032 AC Drive, 30 HP, 22 kW, 3-phase, 380-460V input, IP20/IP54 protection
Specifications
- Brand: Danfoss
- MPN: 175Z7368
- Type: General Purpose AC Drive
- Maximum Load: 30 HP
- Input Voltage: 3 x 380-460 V AC
- Efficiency At Rated Frequency: 0.96
- Max Cable Cross-section (to Motor): 16 mm˛ / 6 AWG
- Max Input Current (380 V): 44.0 A
- Max Input Current (460 V): 41.0 A
- Max Output Current (380-415 V, 60s): 48.4 A
- Max Output Current (440-460 V, 60s): 44.0 A
- Max Pre-fuse (a/ul): 63 A / 60 A
- Nominal Output Current (380-415 V): 44.0 A
- Nominal Output Current (440-460 V): 41.0 A
- Output Apparent Power (400 V): 31.6 kVA
- Output Apparent Power (460 V): 31.9 kVA
- Protection Class: IP 20 / IP 54
- Typical Shaft Output Power: 22 kW / 30 HP
- Weight (ip 20 / Ip 54): 30 kg / 51 kg
