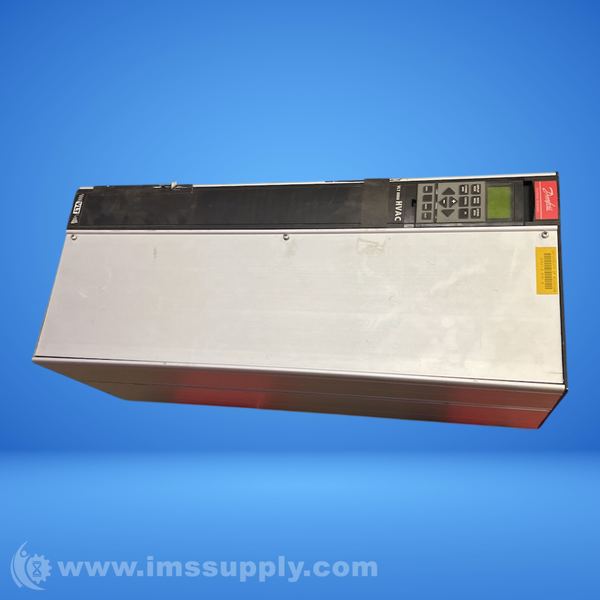

DANFOSS VLT 6072 HVAC DRIVE
Quick Overview
Manufactured By: DANFOSS
Manufacturer Part Number: VLT 6072
IMS Product Code: 2148099
Packaging: Sold Individually
Description:
Danfoss VLT 6072 Hvac Drive
HVAC Drive under VLT Series with 55 kW power rating and 380-460 V nominal motor voltage.
Specifications
- Ambient Temperature Max: 40 degrees C (35 degrees C for 24h avg)
- Cable Cross-section Max: 2.5 mm^2 (24V), 1.5 mm^2 (control)
- Enclosure Rating: IP20, IP21/NEMA 1, IP54
- Max Motor Cable Length (screened): 150 m
- Max Motor Cable Length (unscreened): 300 m
- Max Output Current: 101 A
- Mechanical Dimensions: 800 x 308 x 296 mm
- Output Frequency Range: 0-120 Hz, 0-450 Hz
- Overload Capacity: 110% for 1 min
- Power Factor: 0.90 nominal at full load
- Rated Input Voltage: 3 x 380-460 V ±10%
- Rated Motor Voltage: 380/400/415/440/460 V
- Rated Power Output: 55 kW
- Supply Frequency: 48-62 Hz ±1%
- Weight: 80 kg typical
