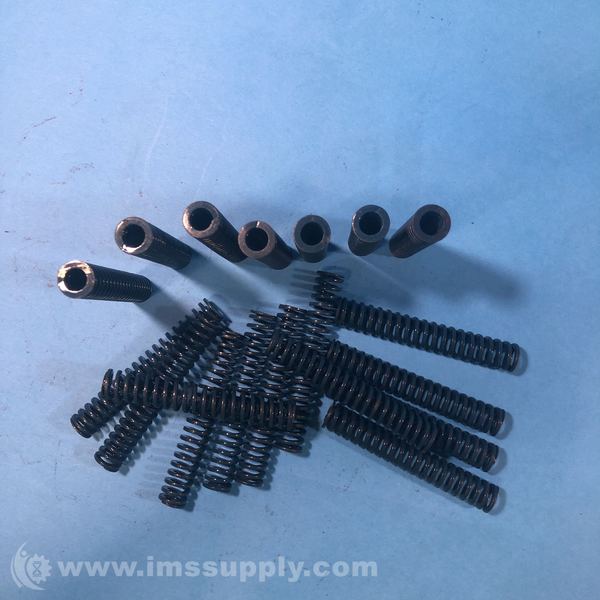

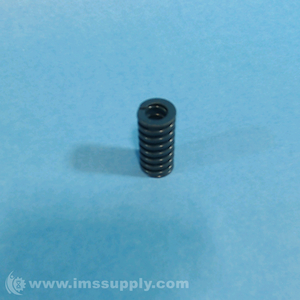

DANLY 9-0812-21 DIE SPRING
Quick Overview
Brand: DANLY
Part Number: 9-0812-21
IMS Product Code: 1945749
Packaging: Set of 19
Description:
Danly 9-0812-21 Die Spring
DieMax XL Blue Spring Medium Load
Specifications
- Wire Type: Rectangular
- A - Hole Diameter: 1/2(in) 12.5(mm)
- C - Free Length: 3.00(in) 76(mm)
- Spring Constant: 5.00(lbs per 1/10in) 8.7(N/mm)
- Hole Diameter (Inch): 1/2
- Free Length (Inch): 3
- Color: Blue
- Wire Shape: D-Shaped
- Material: Chromium Vanadium Steel
- Travel To Solid Load (Decimal Inch): 1.5400
- Maximum Deflection Load (Lb.): 5.00
- Maximum Deflection (Decimal Inch): 1.1200
- Standards: ISO 10243 International Standard, ISO 9001 2015 Registered, NAAMS (North American Automotive Metric Standard)
- Rod Diameter: 0.281
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 12 hours and 41 minutes.
