DAYTON 6JR78 THREE PHASE MOTOR
Quick Overview
Manufactured By: DAYTON
Manufacturer Part Number: 6JR78
IMS Product Code: 1799046
Packaging: Sold Individually
Description:

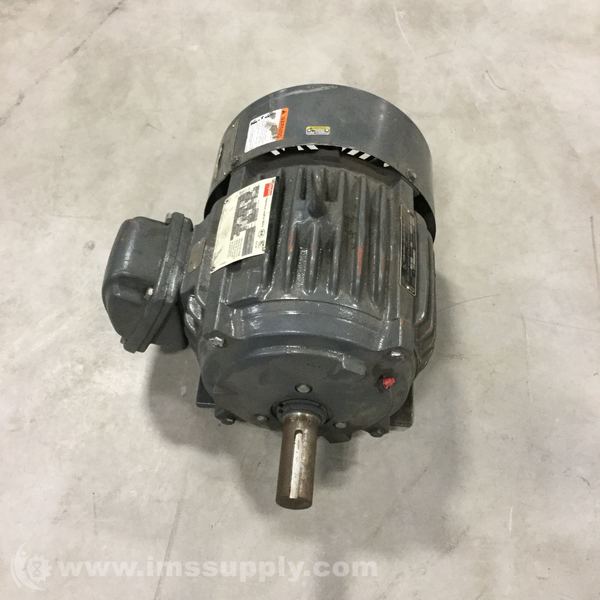

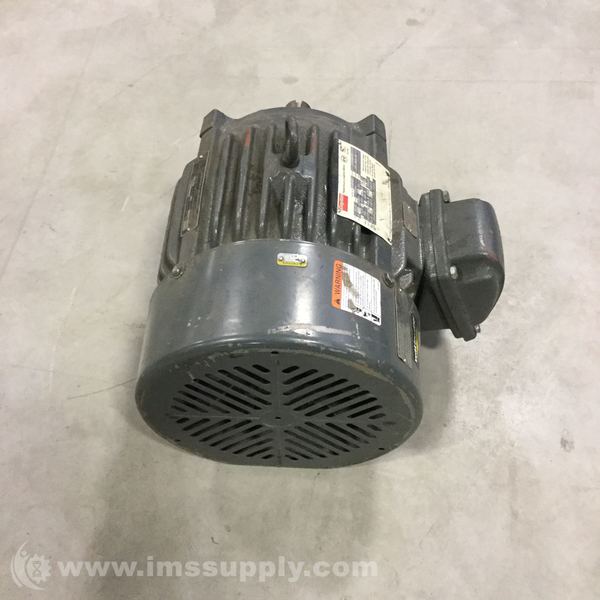

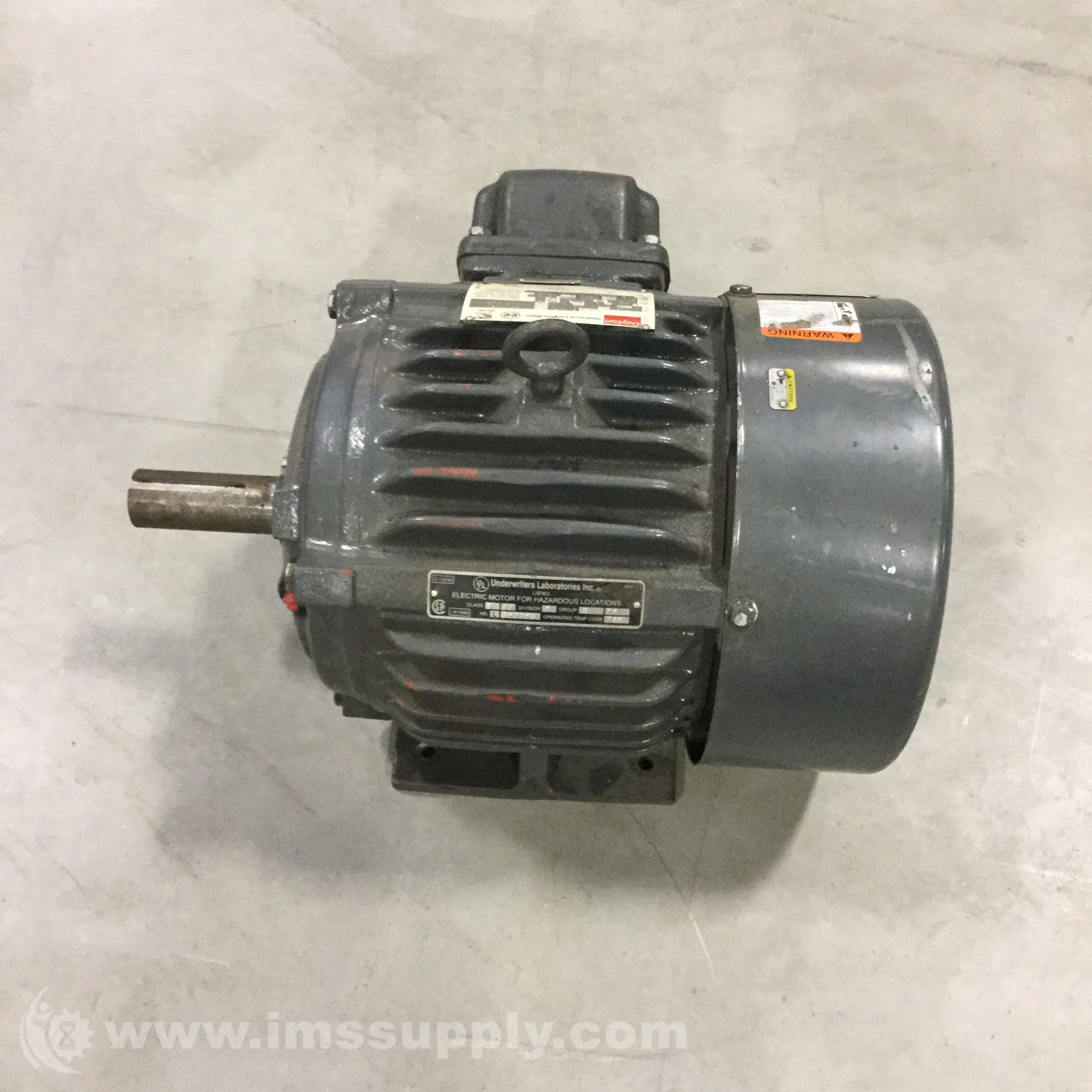

Dayton 6JR78 Three Phase Motor
Three Phase Energy Efficient AC Motor, TEFC Enclosure, Rigid Mount, 7.5 hp, 230/460V
Specifications
- Ambient Operating Temperature: 40 degrees F
- Applications: General Purpose
- Bearing Type: Ball
- Enclosure Style: TEFC
- Frame Material: Cast Iron
- Frame Size: 213T
- Frequency: 60 Hz
- Full Load Amperage: 18.6/9.3
- Full Load Efficiency Rating: 91.0
- Horsepower: 7.5
- Insulation Class: F
- Motor Rotation: Reversible
- Motor Type: Three Phase Energy Efficient
- Mount Style: Rigid
- Name Plate RPM: 1760
- Overall Length: 17.19 inches
- Service Factor Rating: 1.0
- Thermal Protection: T-Stat
- Type: TEFC
- Voltage: 230/460V
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 8 hours and 20 minutes.
