DELTROL CMM20B INLINE CHECK VALVE
Quick Overview
Manufactured By: DELTROL FLUID PRODUCTS.
Manufacturer Part Number: CMM20B
IMS Product Code: 2166970
Packaging: Sold Individually
Description:

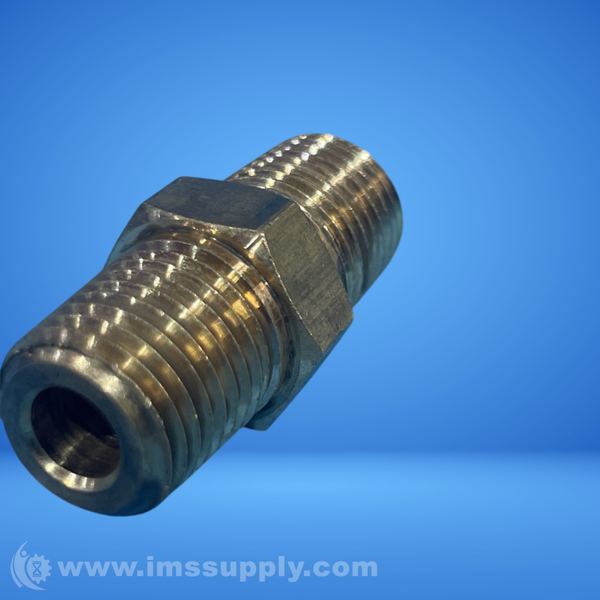

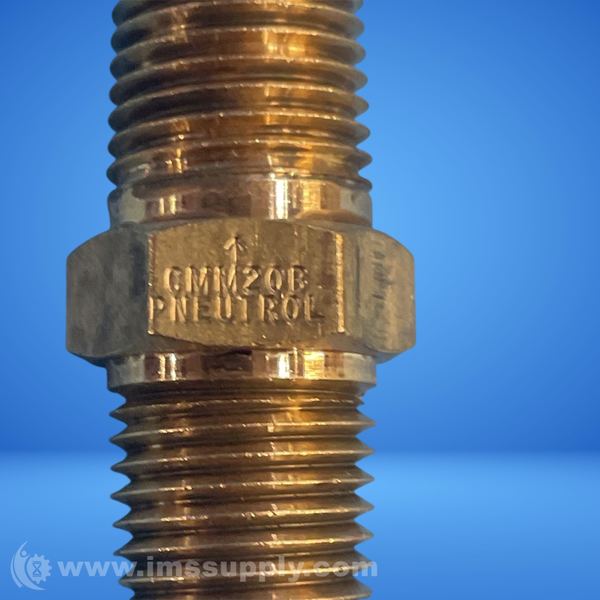

Deltrol CMM20B Inline Check Valve
Brass, metal-to-metal seat for leak tight seal on liquid, 2000 PSI, free flows in one direction, blocked in opposite direction. 1/4" male pipe thread.
Specifications
- Cv Factor: 0.56
- Max Cracking Pressure bar: 0.17
- Max Cracking Pressure psi: 2.50
- Max Flow gpm: 2.50
- Max Flow lpm: 9.50
- Max Operating Pressure (bar): 138
- Max Operating Pressure (psi): 2000
- Material: Brass
- Port Size: 1/4"
- Port Type: NPTF
- Recommended Operating Tempature Range (�C): -34 to +93
- Recommended Operating Tempature Range (�F): -30 to +200
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 15 hours and 24 minutes.
