DESTACO 385 PULL ACTION LATCH CLAMP
Quick Overview
Manufactured By: DESTACO
Manufacturer Part Number: 385
IMS Product Code: 2133291
Packaging: Sold Individually
Description:

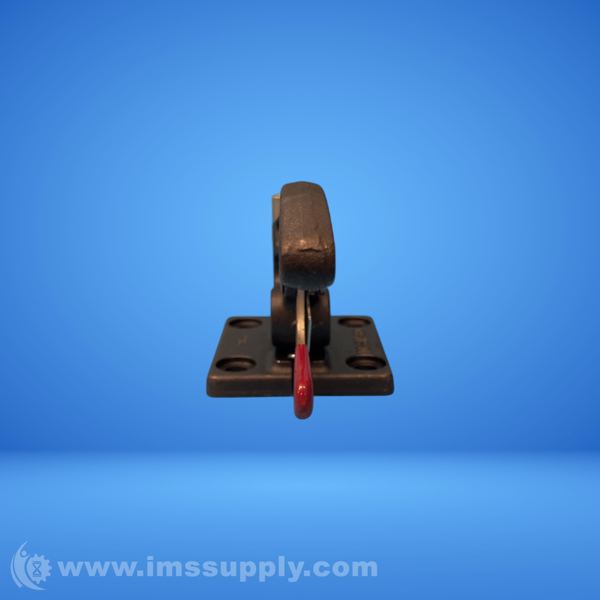

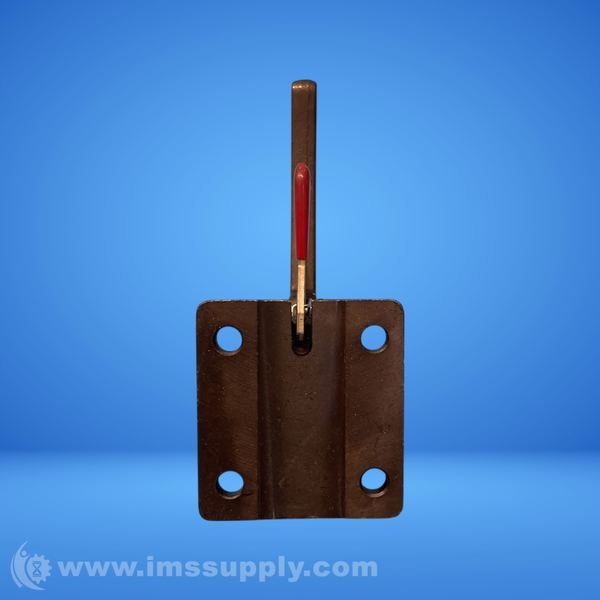

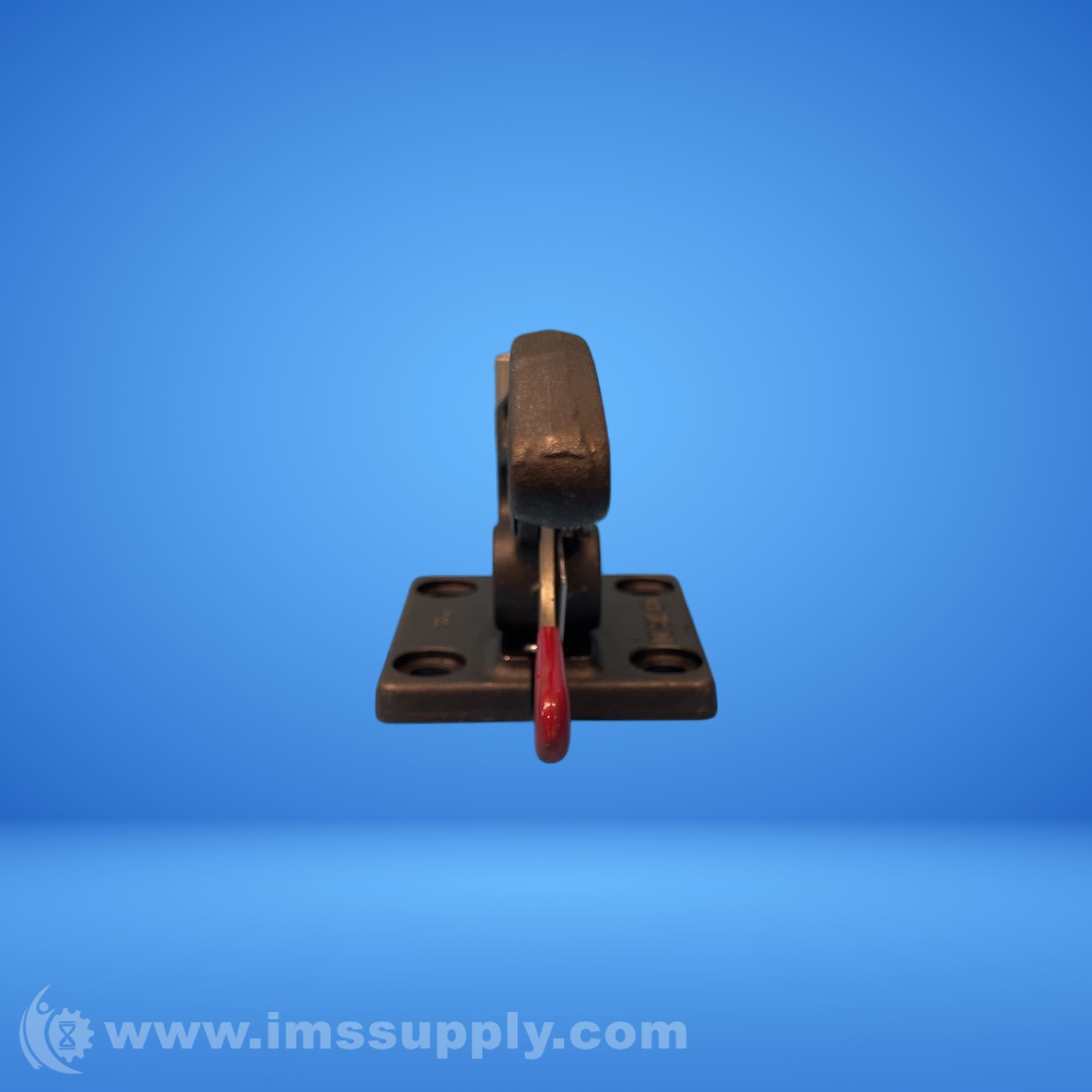

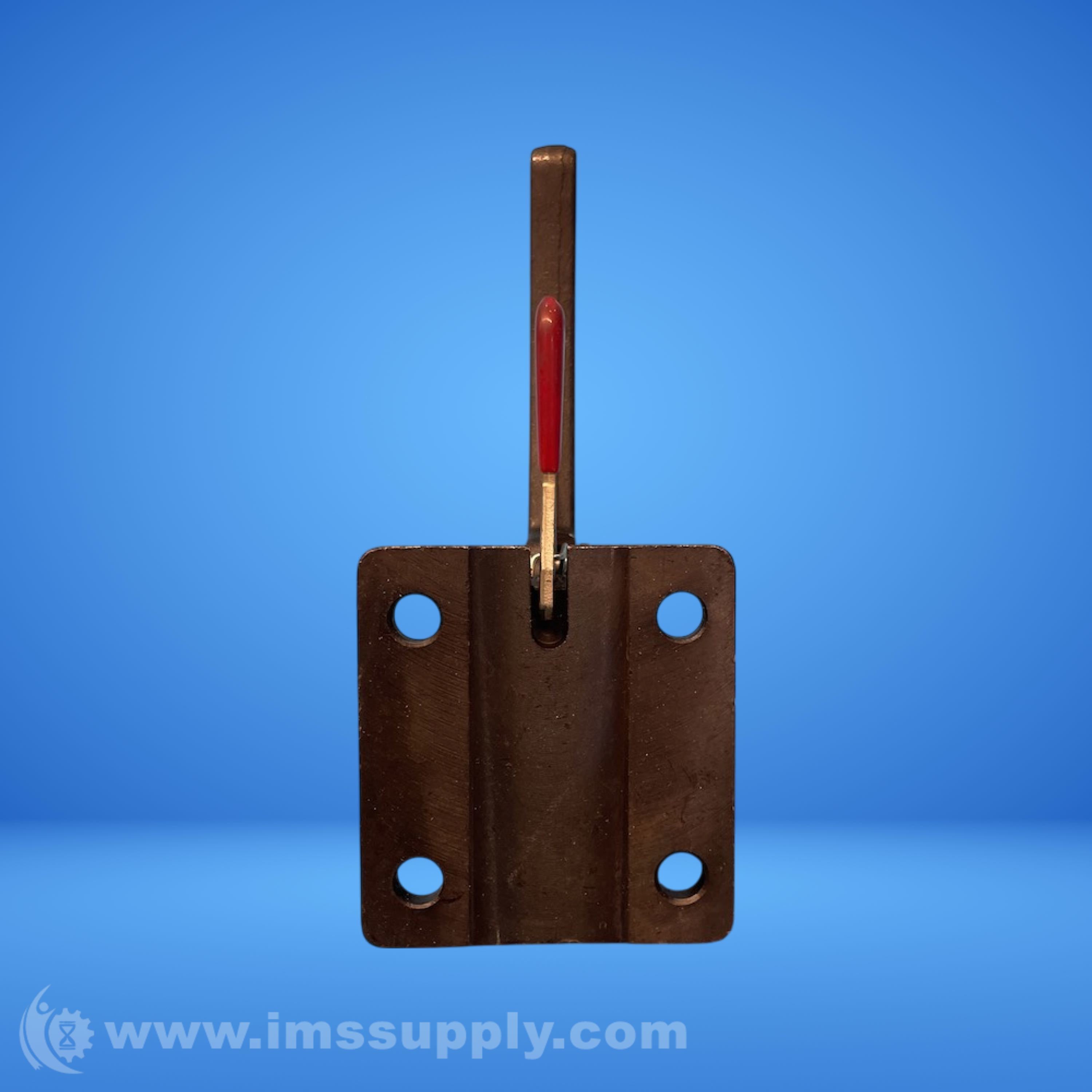

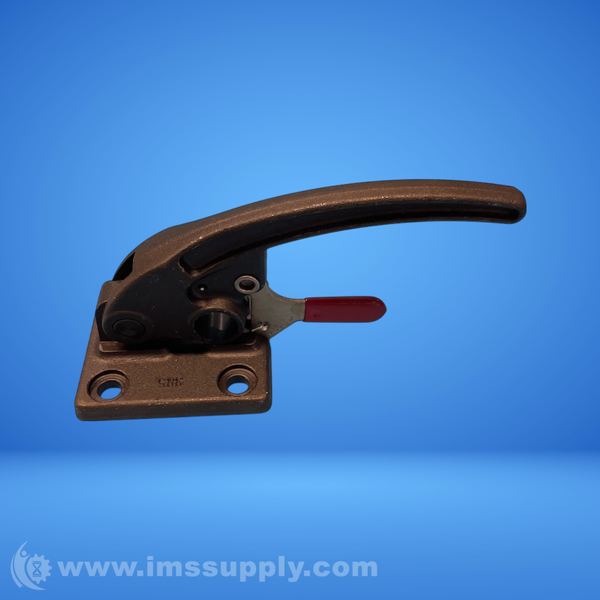

Destaco 385 Pull Action Latch Clamp
Heavy duty pull action latch clamp with horizontal U-hook bar and flanged base. Maximum holding capacity of 7500 lbsf. Made of steel.
Specifications
- Series: 385 Series
- Holding Capacity: 7500 lb
- Overall Length: 9.65 in
- Height Under Arm: 1.13 in
- Overall Height: 3.67 in
- Thread: M12
- Handle Type: Straight Handle
- U-Hook Bar Type: Horizontal U-Hook Bar
- Base Type: Flanged Base
- Mounting Centers: 2-1/4 x 2-1/4 in
- Material: Steel
- Drawing Movement: 2.310 in
- Max Hook Adjustment: 1.070 in
- Ef:Af Exerting Force: Applied Force: 44:1
- Weight: 3.3 lb
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
