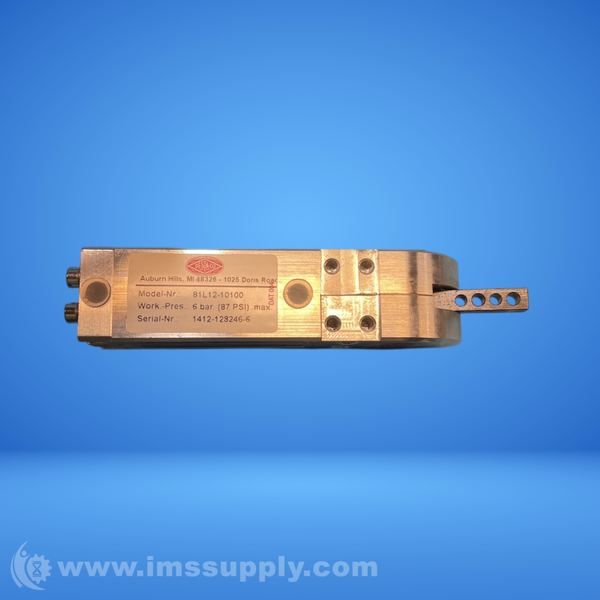

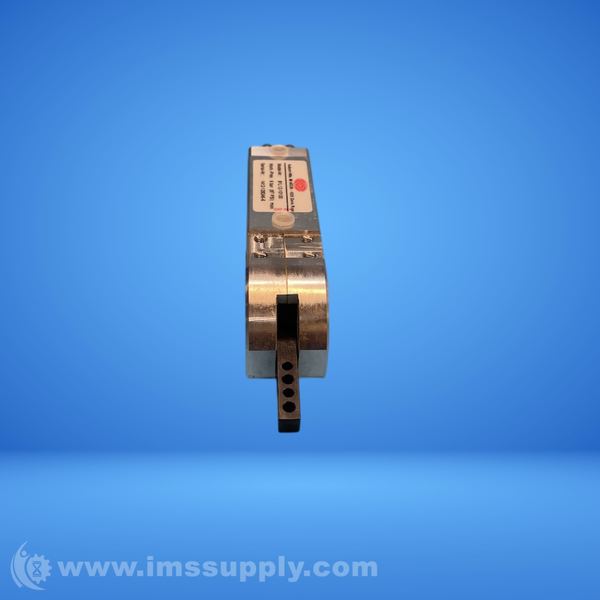

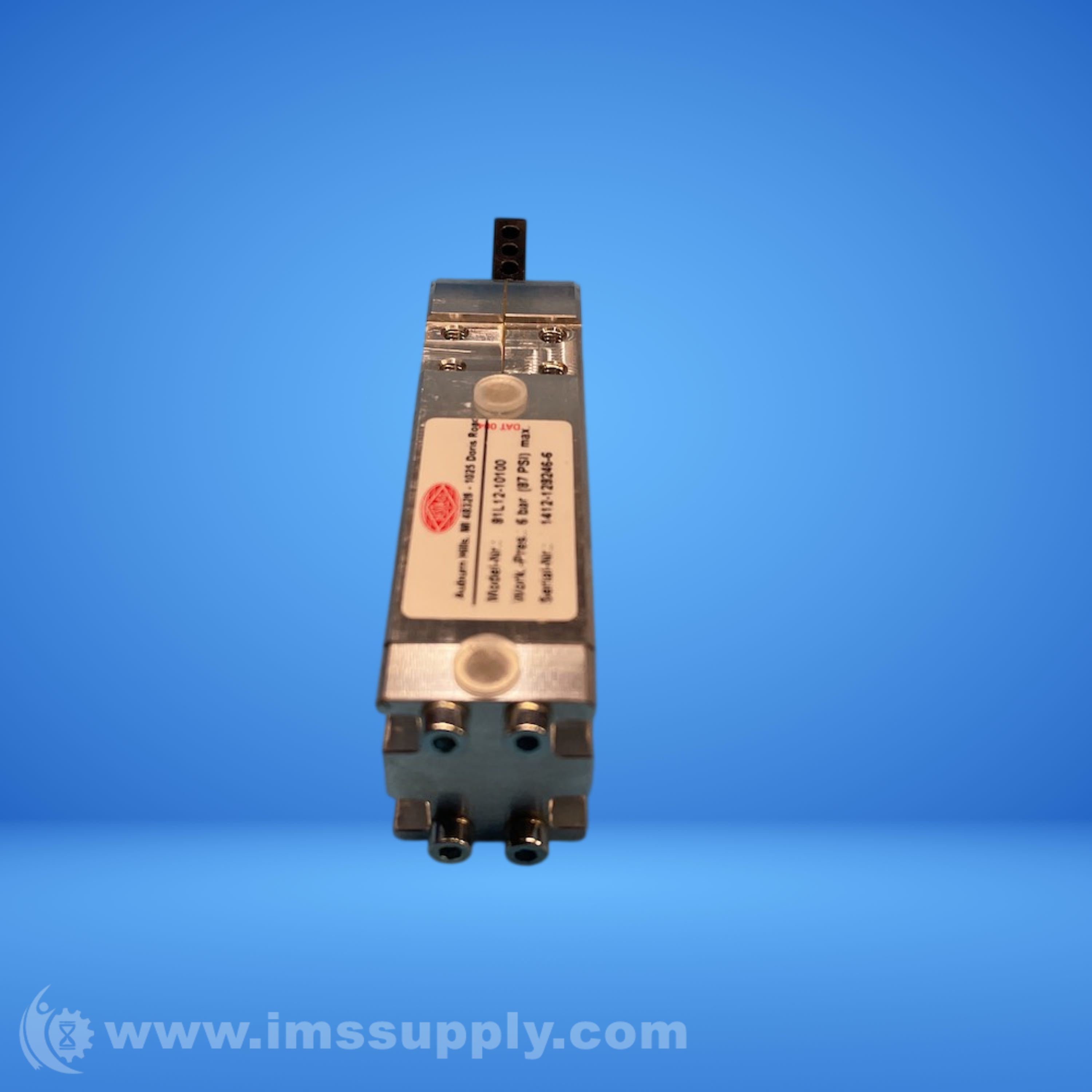

DESTACO 81L12-10100 PNEUMATIC POWER CLAMP
Quick Overview
Manufactured By: DESTACO
Manufacturer Part Number: 81L12-10100
IMS Product Code: 2156195
Packaging: Sold Individually
Description:
Destaco 81L12-10100 Pneumatic Power Clamp
Pneumatic power clamp with toggle-action mechanism and aluminum body. Offers horizontal clamping arm configuration and center clamp arm style. Maximum holding torque of 25 Nm and cylinder bore size of 12mm.
Specifications
- Brand: Destaco
- Product Type: Pneumatic Power Clamp
- Clamp Arm Style: Center
- Configuration: Horizontal clamping arm
- Cylinder Bore: 12mm
- Holding Torque (Max): 25 Nm
- Port Size: M5
- Body Material: Aluminum
- Arm Material: Aluminum
- Opening Angle: 120 degrees
- Air Consumption per double stroke at 5 bar: 0.25 dm³
- Weight: 0.16 kg
- Operating Temperature: -14 to 195 degrees F
- Max Input Air Pressure: 6 bar

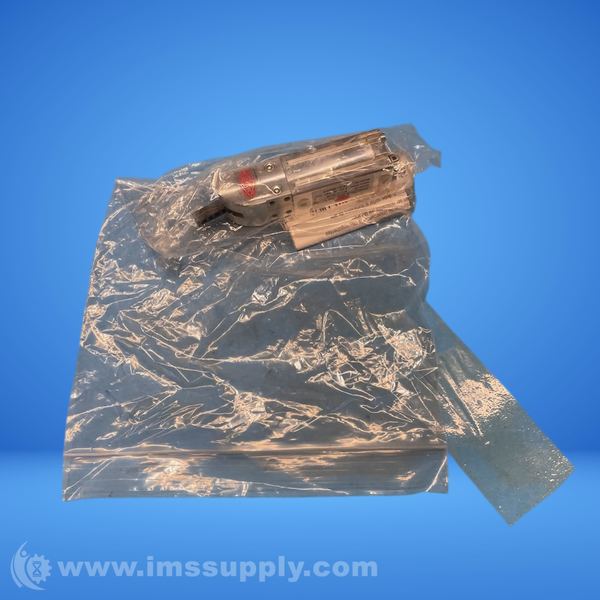

New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
