DODGE 070336 PILLOW BLOCK BEARING
Quick Overview
Manufactured By: DODGE
Manufacturer Part Number: 070336
IMS Product Code: 2162352
Packaging: Sold Individually
Description:

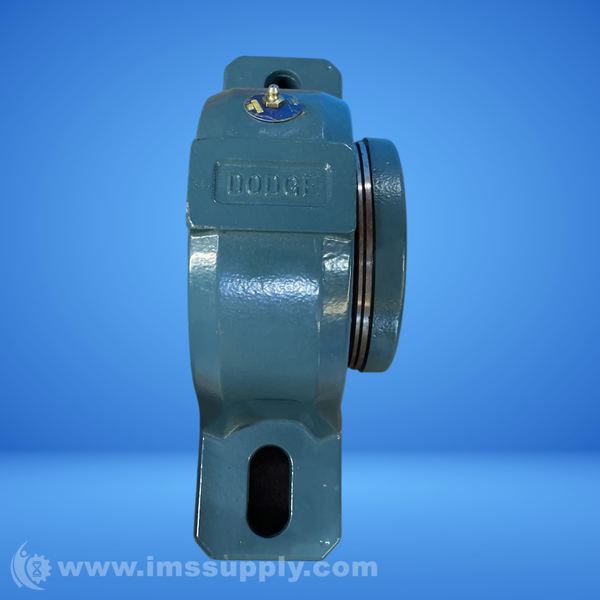

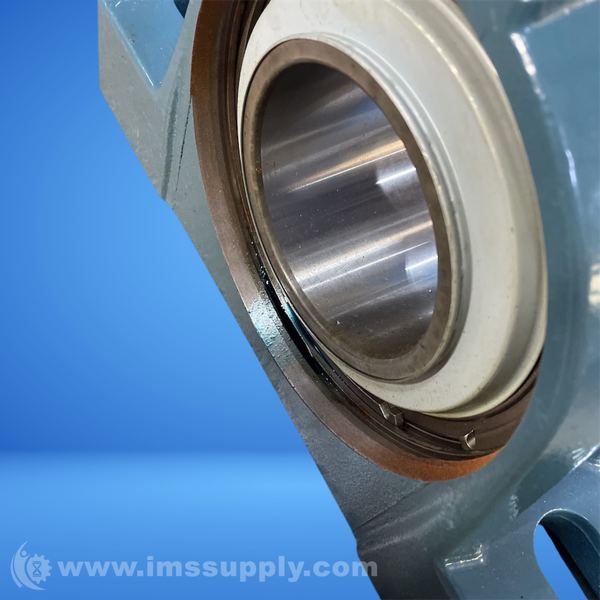

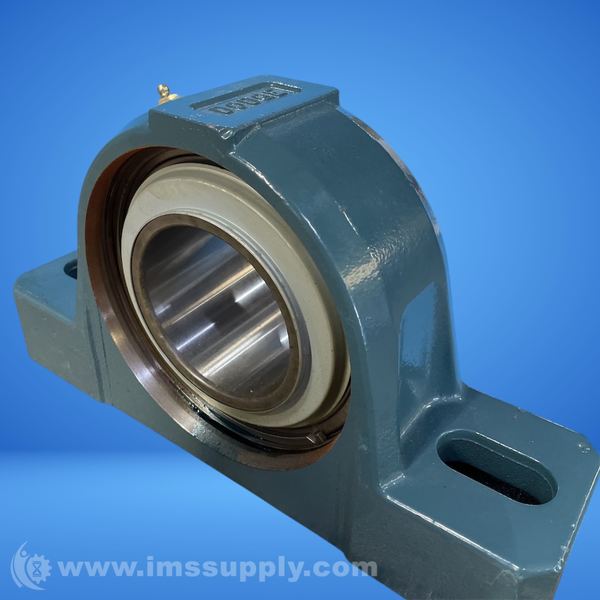

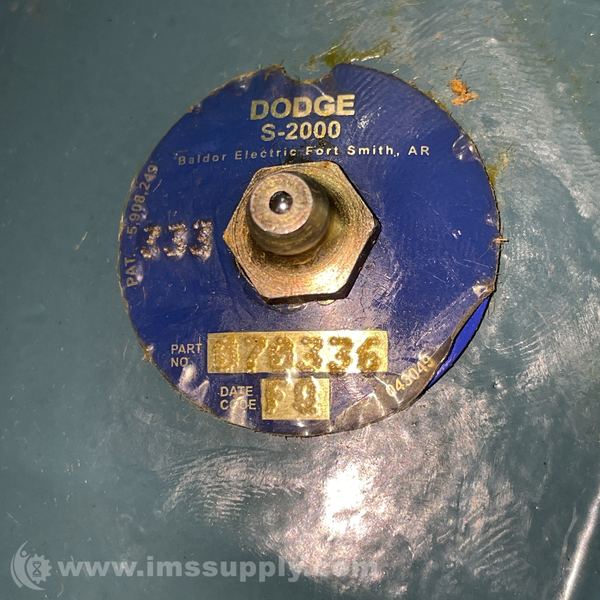

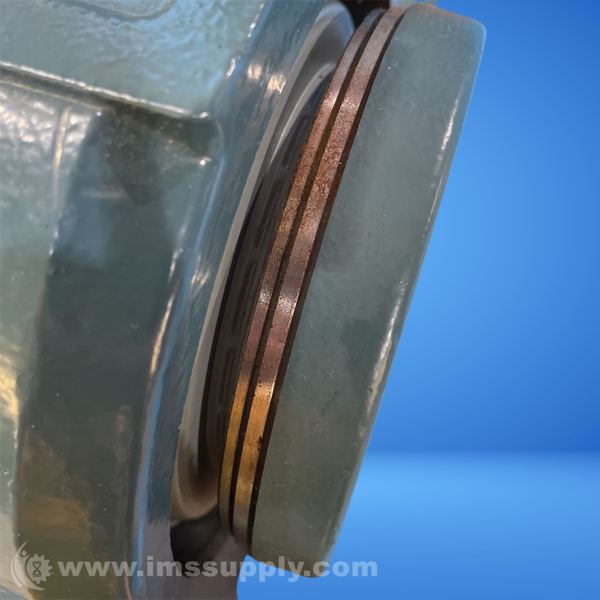

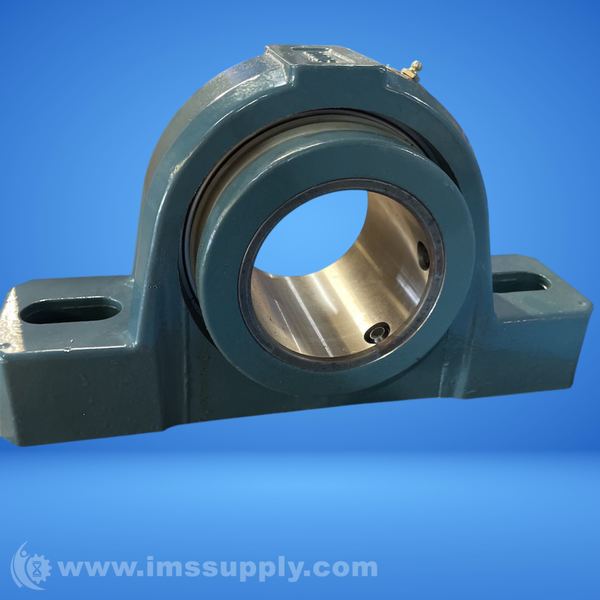

Dodge 070336 Pillow Block Bearing
Two-bolt pillow block bearing with 3-15/16" bore, set screw locking, cast iron housing, spherical roller insert, non-expansion fixed design.
Specifications
- Base to Bore Centerline: 4.25 in
- Base Width: 3.94 in
- Bolt Center-to-Center Length: 10.63 to 12.88 in
- Bore Diameter: 3.9375 in
- Bore Length: 4.7 in
- Bore Type: Round
- Expansion Type: Non-Expansion Bearing (Fixed)
- Finish: Black Oxide
- Housing Construction: Solid
- Housing Material: Cast Iron
- Insert Material: Steel
- Load Capacity: 83000 lb Dynamic/104000 lb Static
- Locking Device: Set Screw
- Lubrication: Grease
- Maximum Speed: 1320 rpm
- Mounting Type: 2-Bolt Base
- Overall Height: 8.38 in
- Overall Length: 15.25 in
- Overall Width: 4.47 in
- Seal Type: Labyrinth
- Series: 315
- Shaft Attachment: Setscrew
- Temperature Rating: -100 to 200 deg F
- Type: Pillow Block Bearing
