DODGE 117036 TAPER LOCK BUSHING
Quick Overview
Manufactured By: DODGE
Manufacturer Part Number: 117036
IMS Product Code: 1842027
Packaging: Sold Individually
Description:

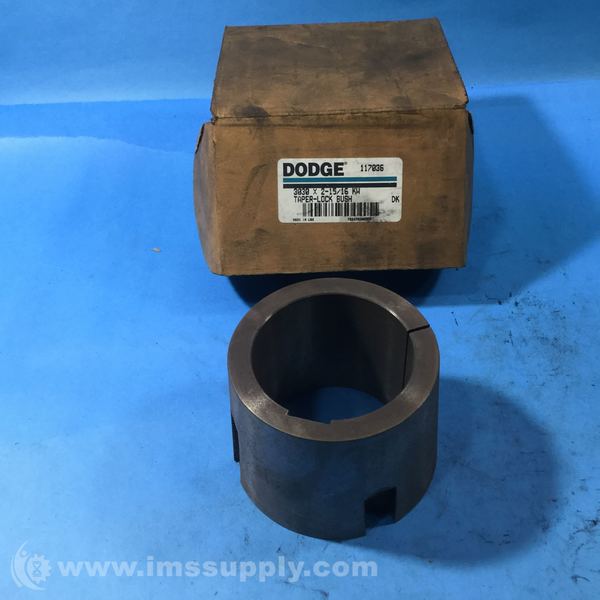

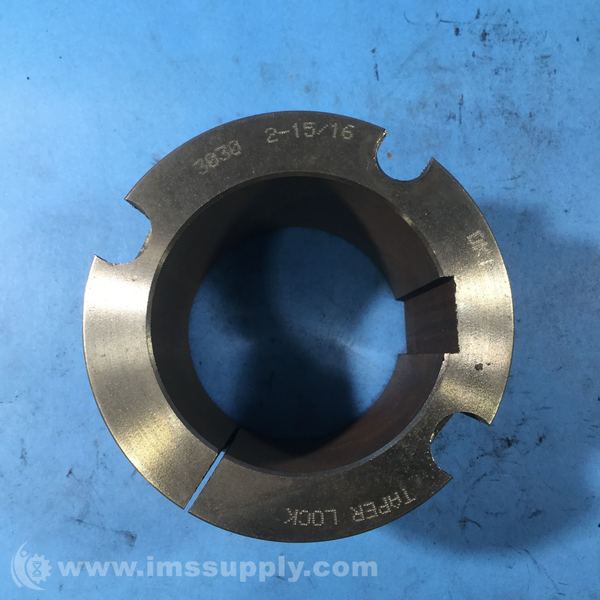

Dodge 117036 Taper Lock Bushing
Taper lock bushing with stock bore, 2-15/16 in bore diameter, 4-1/4 in barrel diameter, 5-3/4 in hub diameter, 8 deg taper, 4 in bolt circle diameter, 2 bolt holes, 5/8 x 1-1/4 in screw size, 24000 in-lb torque rating, 3 in overall length, 3/4 x 1/8 in keyway, made of cast iron.
Specifications
- Bushing Size: 3030
- Bushing Type: Taper-lock
- Bore Diameter: 2-15/16 in
- Barrel Diameter: 4-1/4 in
- Hub Diameter: 5-3/4 in
- Taper: 8 deg
- Bolt Circle Diameter: 4 in
- Number of Bolt Holes: 2
- Screw Size: 5/8 x 1-1/4 in
- Torque Rating: 24000 in-lb
- Overall Length: 3 in
- Keyway Size: 3/4 x 1/8 in
- Material: Cast Iron, Class 30
- Shaft Attachment: Finished Bore
- Type: Stock Bore
- Installation Torque: 800 in-lb
- Weight: 5.19 lbs
