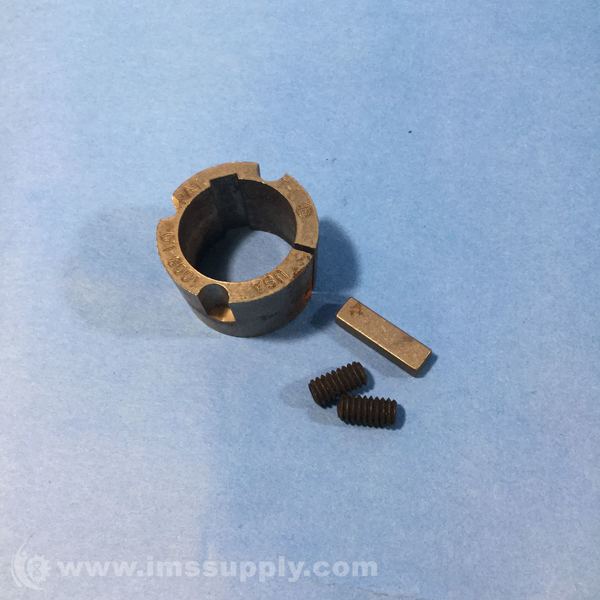

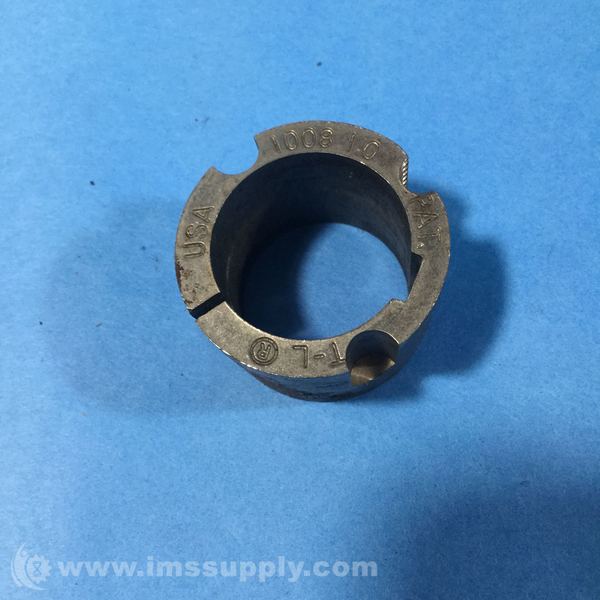

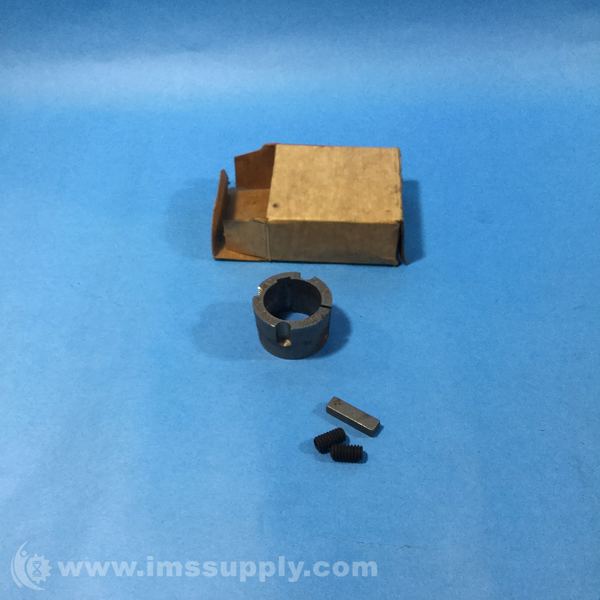

DODGE 117151 TAPER-LOCK BUSHING
Starting At: $9.20
Quick Overview
Manufactured By: DODGE
Manufacturer Part Number: 117151
IMS Product Code: 1806225
Packaging: Sold Individually
Description:
Dodge 117151 Taper-Lock Bushing
Specifications:
- Bore Diameter: 1.0000 inch
- Torque capacity: 1200 in-lbs
- Outside Diameter: 1.39 inch
- Screw Torque: 55 in-lbs
- Length through Bore: 0.87 inch
- Maximum Hub Outside Diameter: 1.94 (Steel) inch, 2.19 (Class 30 Gray Iron) inch
- Bushing Size: 1008
- Bolt Circle Diameter: 1.33 inch
- Bore type: Finished w/ Keyway
- Number of Bolt Holes: 2
- Keyway Size: 1/4 x 1/8 inch
- Screw Thread Size: 1/4 inch
- Material: Sintered Steel
- Screw Length: 1/2 inch
