DODGE 119196 TAPER-LOCK BUSHING
Quick Overview
Manufactured By: DODGE
Manufacturer Part Number: 119196
IMS Product Code: 1842006
Packaging: Sold Individually
Description:
Dodge 119196 Taper-Lock Bushing

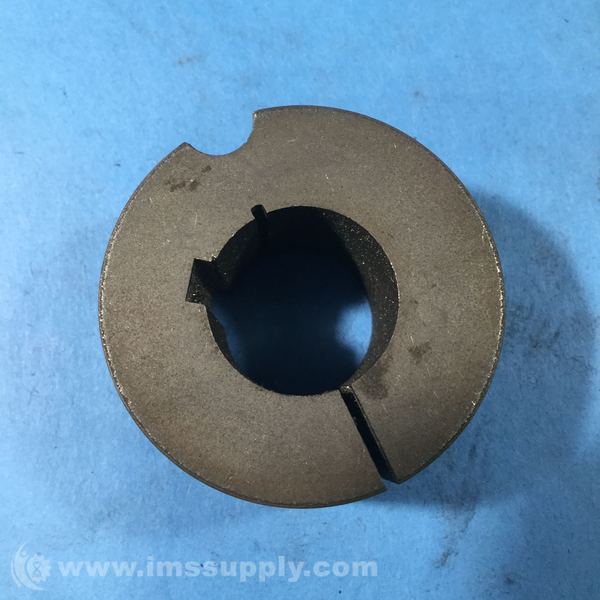

Taper-Lock bushing for shaft mounting with 13/16" bore, sintered steel construction, and 3600 lbf rated torque. It has a finished bore with keyway and 2 bolt holes.
Specifications
- Bore Diameter: 0.8125 in
- Bore Length: 1 in
- Bushing Size: 1210
- Bushing Type: Taper-Lock
- Installation Torque: 175 in/lb
- Keyway Size: 3/16 x 3/32 in
- Material: Sintered Steel
- Number of Bolts: 2
- Rated Torque: 3600 in/lb
- Outside Diameter: 1.87 in
- Max Hub Outside Diameter: 2.88 in
- Screw Thread Size: 3/8 in
- Screw Length: 5/8 in
- Weight: 0.49 lbs

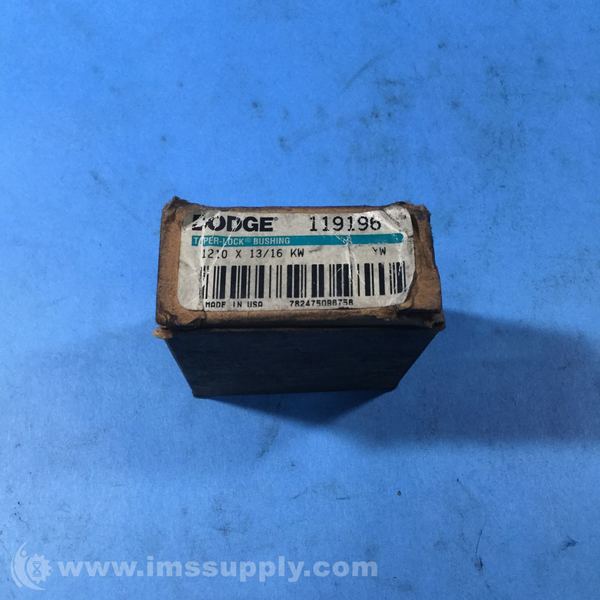

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships on Tuesday, May 26, 2026
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
