DODGE 20Q07L56 RIGHT ANGLE WORM GEAR REDUCER
Quick Overview
Manufactured By: DODGE
Manufacturer Part Number: 20Q07L56
IMS Product Code: 1896180
Packaging: Sold Individually
Description:

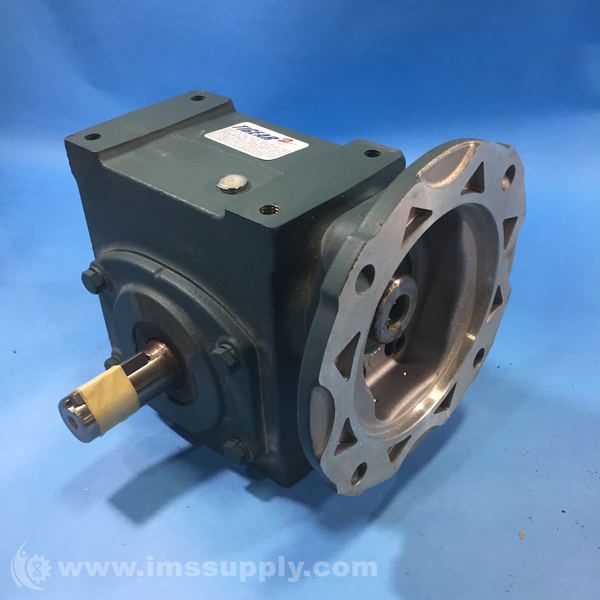

Dodge 20Q07L56 Right Angle Worm Gear Reducer
Right angle worm gear speed reducer with 7:1 gear ratio and quill input.
Specifications
- Case Size: 20
- Center Distance: 2.00 in
- Output Size: 1.0000 in
- Ratio: 7:1
- Shaft Diameter Output: 1 in
- Horsepower Rating Normal Duty Output: 2.54 hp
- Housing Material: Cast Iron
- Lubrication: PAG, Standard Temperature
- Output Direction: Left Hand
- Torque Rating (in-lb) Output: 678 inch pound (pound inch)
- Centre Distance: 2 in
- Dimensions: 8.6 in L x 5.01 in W x 7.5 in H
- Efficiency: 60 to 95 %
- Horsepower: 2.78 hp
- Input Maximum Speed: 1750 rpm
- Output Maximum Speed: 233 rpm

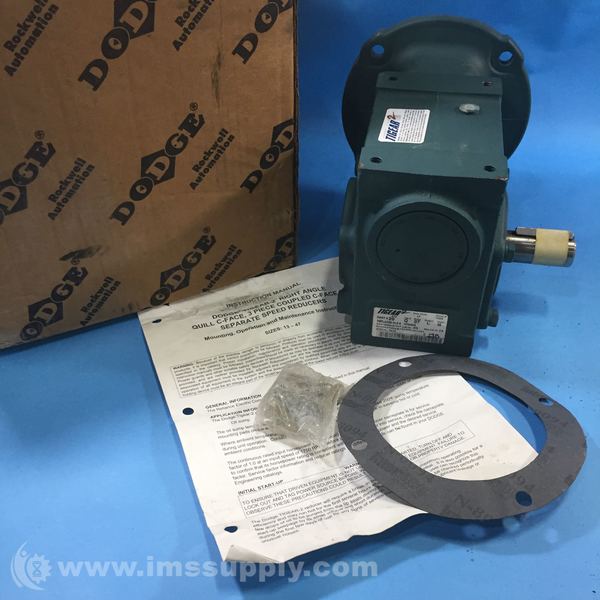

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
