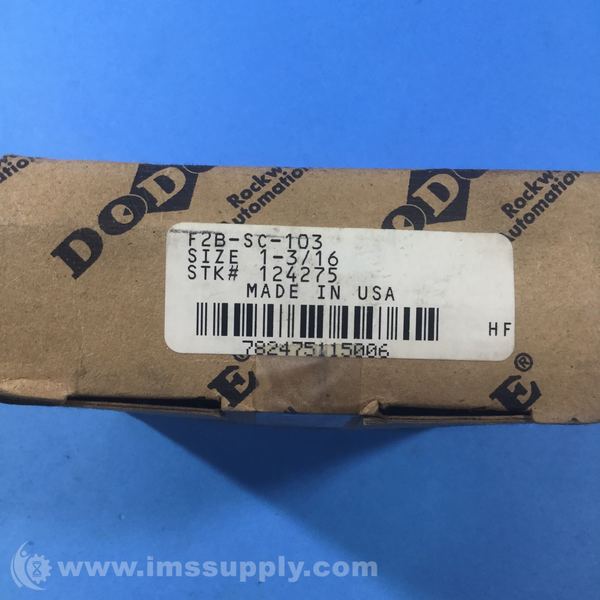

DODGE F2B-SC-103 FLANGE MOUNT BALL BEARING
Quick Overview
Manufactured By: DODGE
Manufacturer Part Number: F2B-SC-103
IMS Product Code: 1815853
Packaging: Sold Individually
Description:

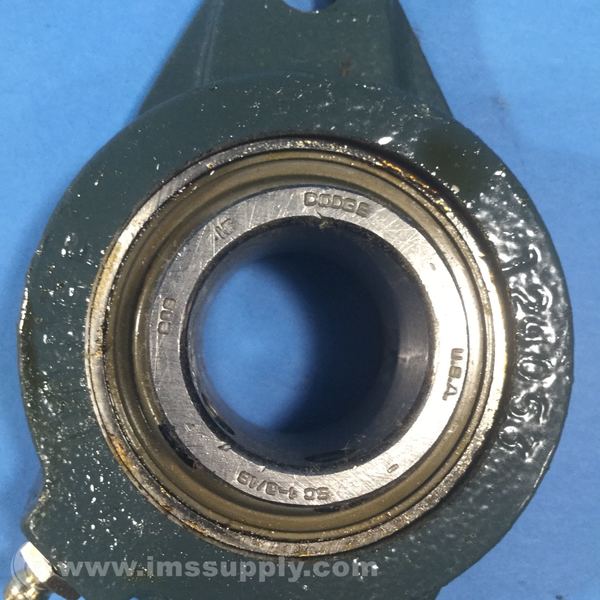

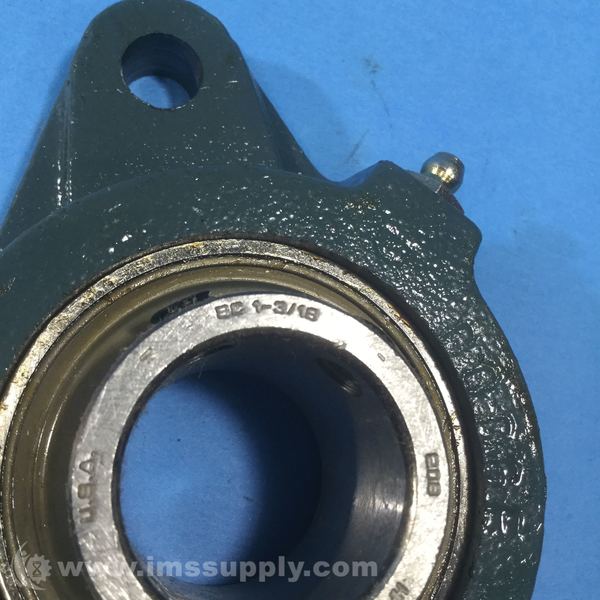

Dodge F2B-SC-103 Flange Mount Ball Bearing
Flange-mount ball bearing unit with 1-3/16 in bore, 2-bolt flange mount, set screw locking, cast iron housing, non-expansion bearing, and single lip contact seal.
Specifications
- Bearing Type: Set Screw Ball Bearing
- Product Type: Flange-Mount Ball Bearing Units
- Bore Diameter: 1-3/16 in
- Housing Material: Cast Iron
- Duty Type: Standard Duty
- Bolt Hole Diameter: 0.4375 in
- Locking Device: Set Screw
- Expansion Type: Non-Expansion Bearing (Fixed)
- Seal Type: Single Lip Contact Seal
- Bore Shape: Round
- Bore Type: Straight
- Bolt Size: 0.4375 in
- Bore Length: 1.52 in
- Dynamic Load Capacity: 4368 lbf
- Expansion Capability: Non-Expansion (Fixed)
- Grease Type: Unirex N2
- Lubrication: Grease
- Housing Construction: Solid
- Housing Type: 2-Bolt Flange (Light Duty)
- Insert Material: Steel
- Maximum Speed: 4500 rpm
- Max Bolt Hole Spacing: 4.5900 in
- Weight: 1.86 lbs
- Static Load Capacity: 2538 lbf
- Min Bolt Hole Spacing: 4.5900 in
- Bearing Series: 206 Series
- Relubricatable: Yes
- Mounting Type: 2-Bolt Flange
- Application: General Purpose
- Bore: 1 3/16 in
- Duty: Standard Duty
- Expansion: No
- Finish: Powder coated
- Greasable: Yes
- High temp: No
- I.D.: 1 3/16 in
- Locking: Set screw
- Lubrication type: Grease
- Max RPM: 6500 rpm
- Relubrication: Yes
- Rolling element: Standard duty ball
- Shaft attachment: Setscrew
- Suitable for high temperature: No
- Suitable for washdown: No
- Type: 2-bolt flange
- Bore / Inner Diameter Inch: 1.188
- Number of Mounting Holes: 2
- Bolt Center to Center Inch: 4.594
- Bearing Locking Style: Set Screw
- Rolling Element: Ball Bearing
- Housing Style: 2 Bolt Flange Block
- Split Housing: 1 Piece Solid
- Length Across Bore Inch: 1.391
