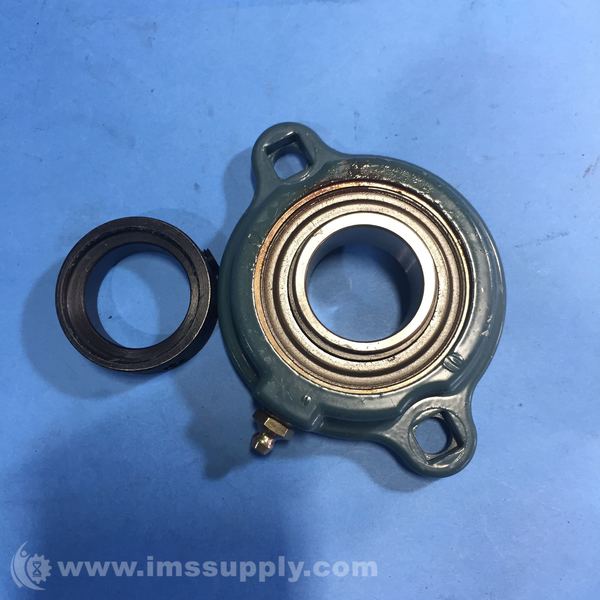

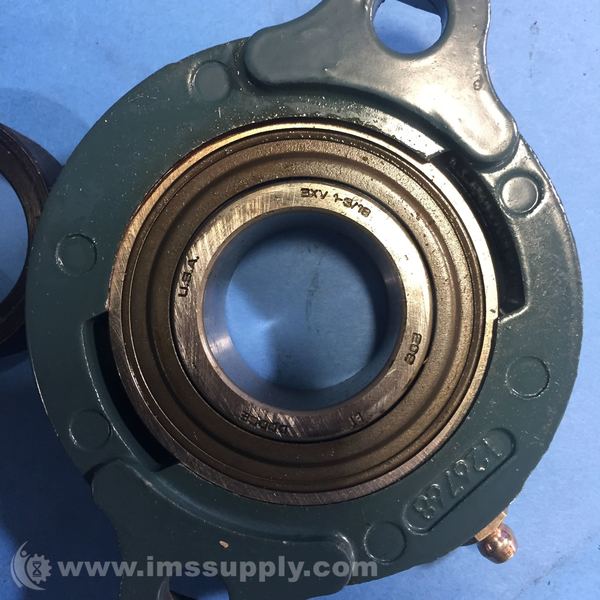

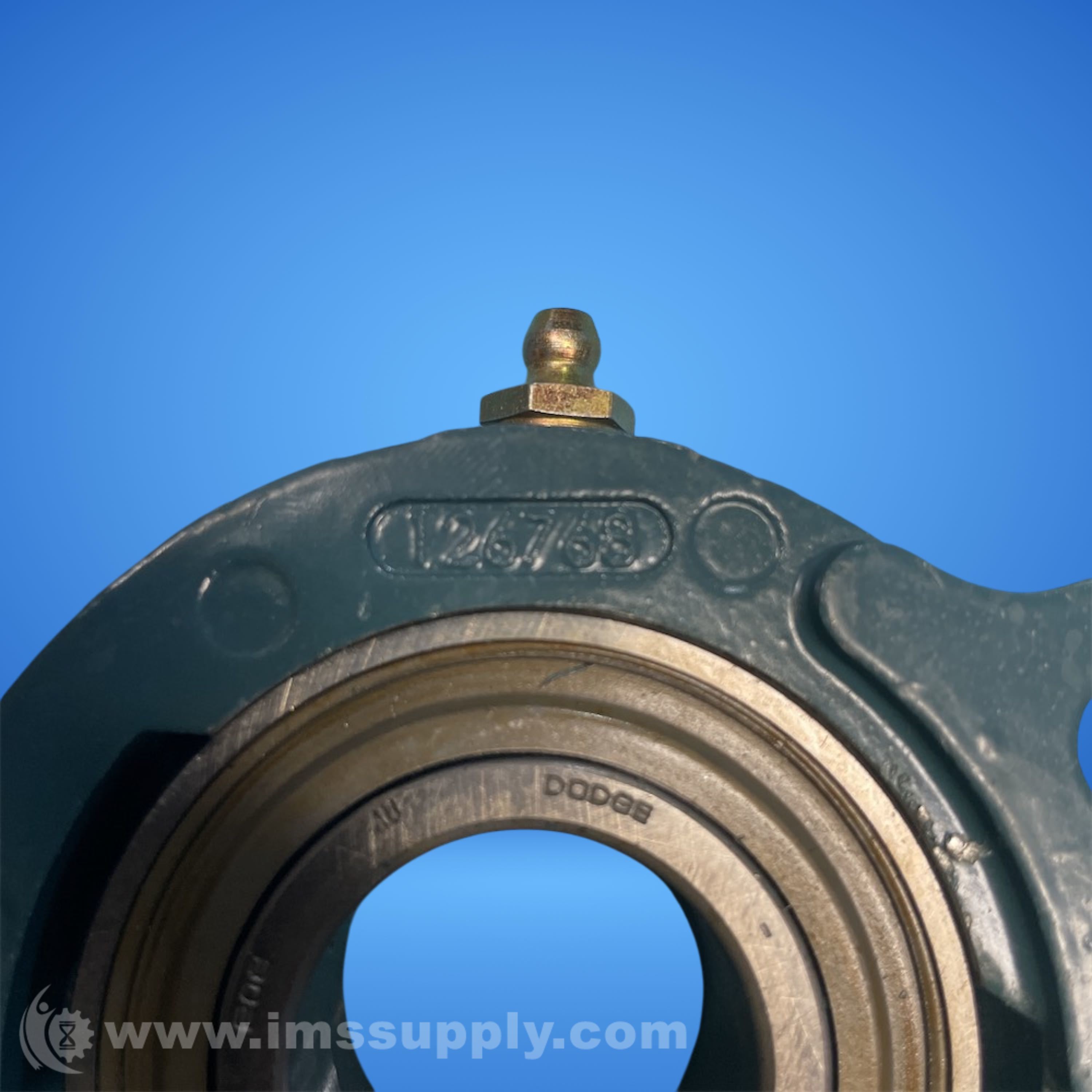

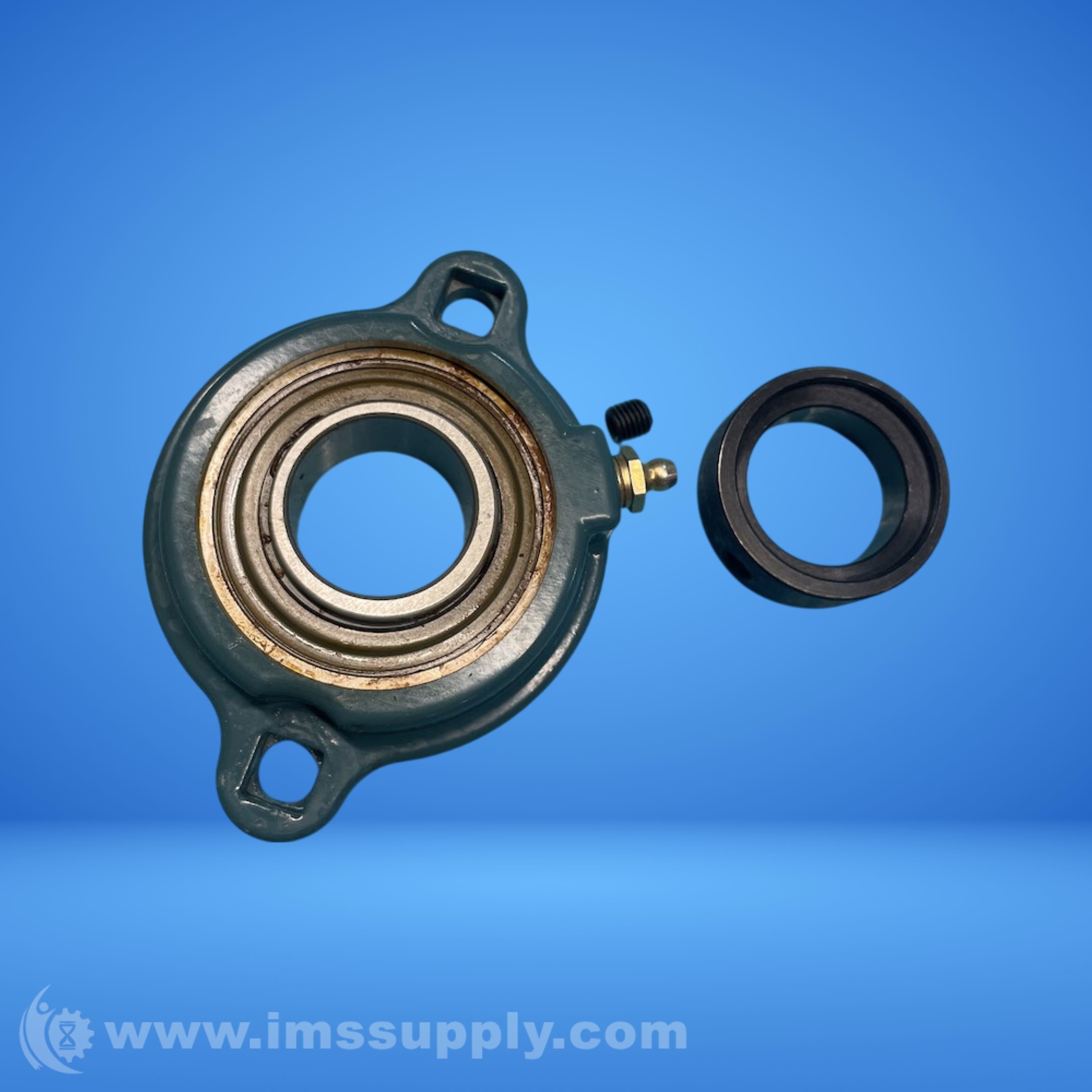

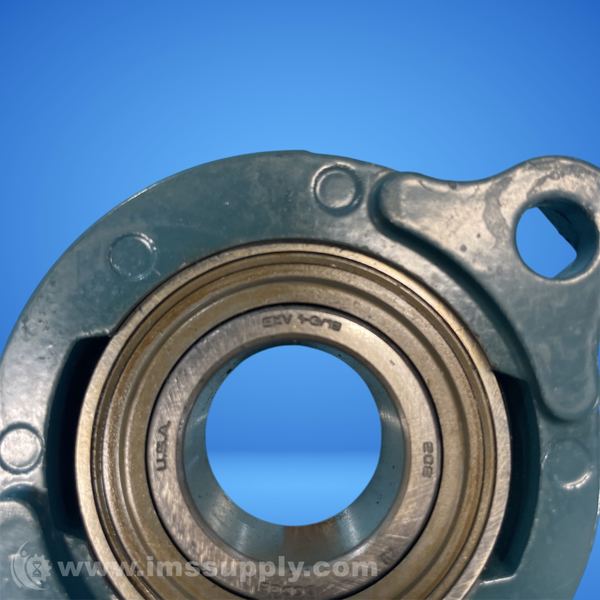

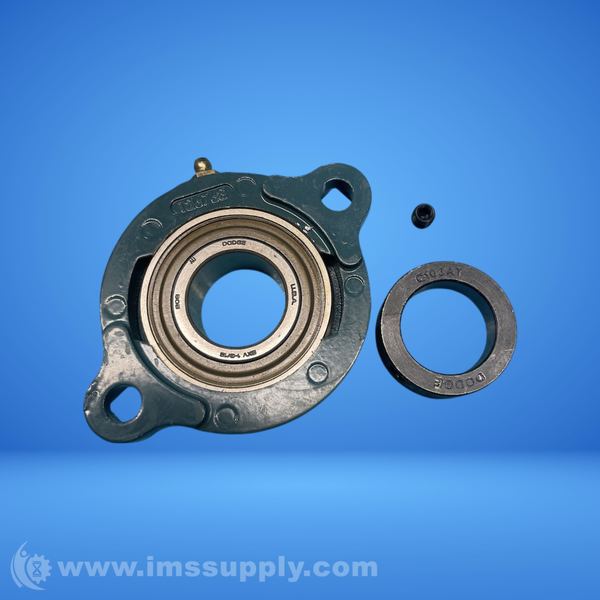

DODGE LFT-SXV-103 FLANGE MOUNT BALL BEARING UNIT
Quick Overview
Manufactured By: DODGE
Manufacturer Part Number: LFT-SXV-103
IMS Product Code: 1824082
Packaging: Sold Individually
Description:
Dodge LFT-SXV-103 Flange Mount Ball Bearing Unit
Flange-Mount Ball Bearing Unit with 1-3/16 in Bore, 3-Bolt Bracket Mount, Eccentric Collar Locking, Alloy Housing Material, Non-Expansion Bearing (Fixed), Single Lip Contact Seal
Specifications
- Bearing Type: Eccentric Ball Bearing
- Product Type: Flange-Mount Ball Bearing Units
- Bore Diameter: 1-3/16 in
- Housing Material: Alloy
- Duty Type: Standard Duty

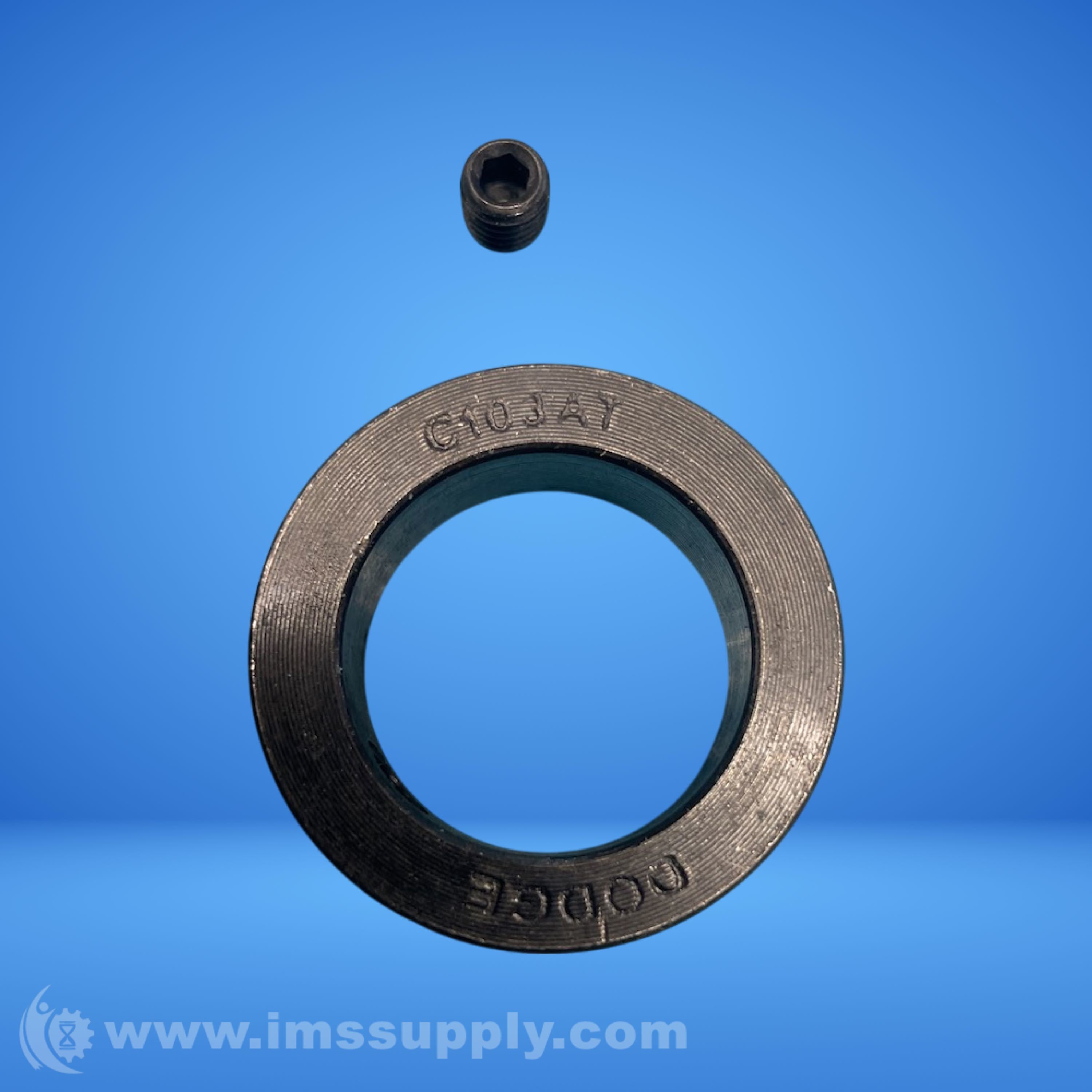

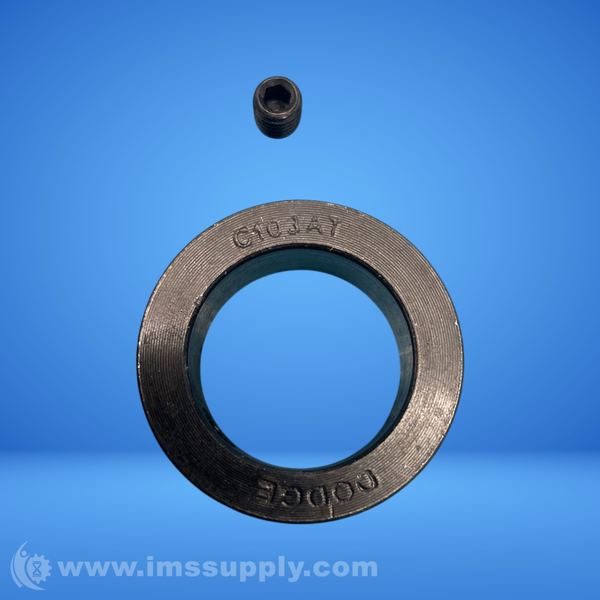

- Locking Device: Eccentric Collar
- Expansion Type: Non-Expansion Bearing (Fixed)
- Seal Type: Single Lip Contact Seal
- Country of Origin: US
- Bore Shape: Round
- Bore Type: Straight
- Bore Length: 1.41 in
- Expansion Capability: Non-Expansion (Fixed)
- Lubrication: Grease
- Housing Construction: Solid
- Insert Material: Steel
- Relubricatable: Yes
- Mounting Type: 3-Bolt Bracket
- Bearing Series: 206 Series
- Application: General Purpose
- Bolt Diameter: 0.4063 in
- Duty: Light Duty
- Expansion: No
- Finish: Powder coated
- Greasable: Yes
- High temp: No
- Housing option: Cast iron
- Housing type: Two-bolt flange (light duty)
- I.D.: 1 3/16 in
- Locking: Eccentric locking
- Lubrication type: Grease
- Max RPM: 6500 rpm
- Relubrication: Yes
- Shaft attachment: Eccentric collar
- Shaft diameter: 1.1875 in
- Standoff housing: No
- Suitable for high temperature: No
- Suitable for washdown: No
- Type: 2-bolt light duty flange
- Bolt Center-to-Center Length: 3.56 in
- Flange Mounting Type: 2-Bolt Base
- Load Capacity: 4368 lb Dynamic/2538 lb Static
- Maximum Speed: 6500 rpm
- Overall Depth: 1.6 in
- Overall Height: 3-1/4 in
- Overall Length/Diameter: 4.44 in
- Series: 206
- Temperature Rating: 225 to 400 deg F
- Type: Intermediate Duty Non-Expansion Single Lip
- Item Weight: 1.00 lbs per EA
- Number of Mounting Holes: 2
- Mounting Method: Eccentric Collar
- Housing Style: 2 Bolt Flange Block
- Rolling Element: Ball Bearing
- Expansion / Non-expansion: Non-Expansion
- Mounting Bolts: 13/32 Inch
- Insert Part Number: INS-SXV-103
- Seals: Single Lip Contact
- Housing Configuration: 1 Piece Solid
- Pilot Configuration: No Pilot
- Inch - Metric: Inch
- Other Features: Single Row | Intermediate Duty | Narrow Inner Race

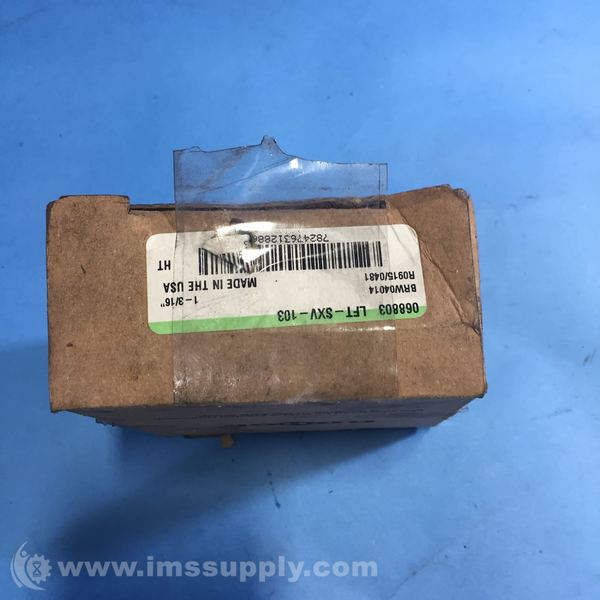

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 3 In Stock
Ships today if ordered in the next 6 hours and 7 minutes.
New - Missing Box (Special):
Part is missing the locking collar.
Availability: 1 In Stock
Ships today if ordered in the next 6 hours and 7 minutes.
