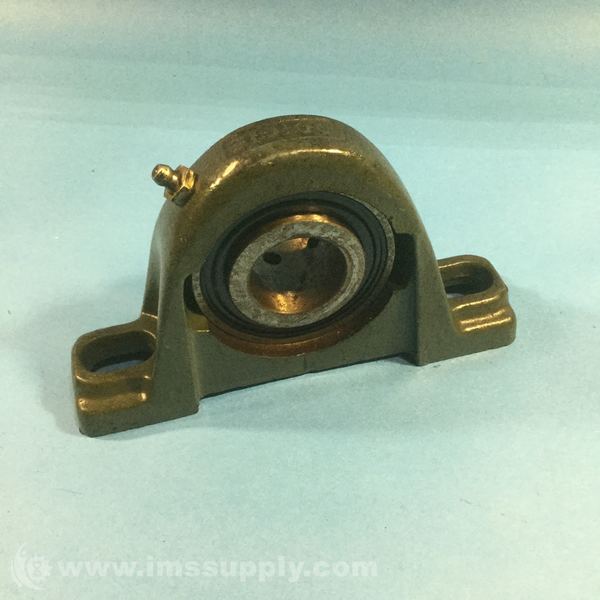

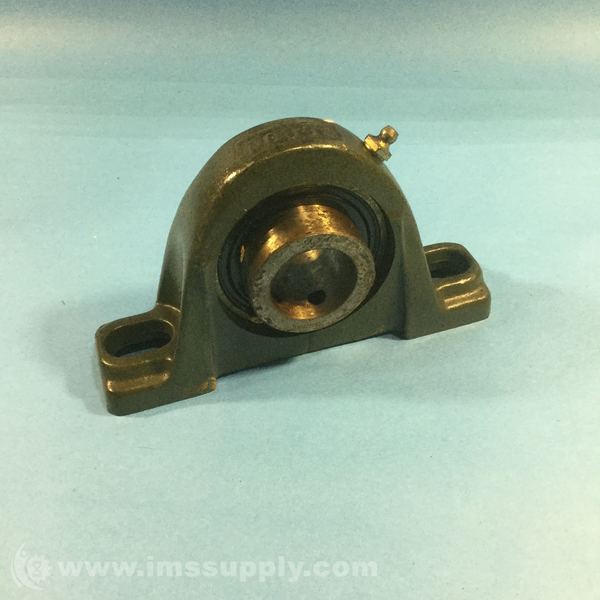

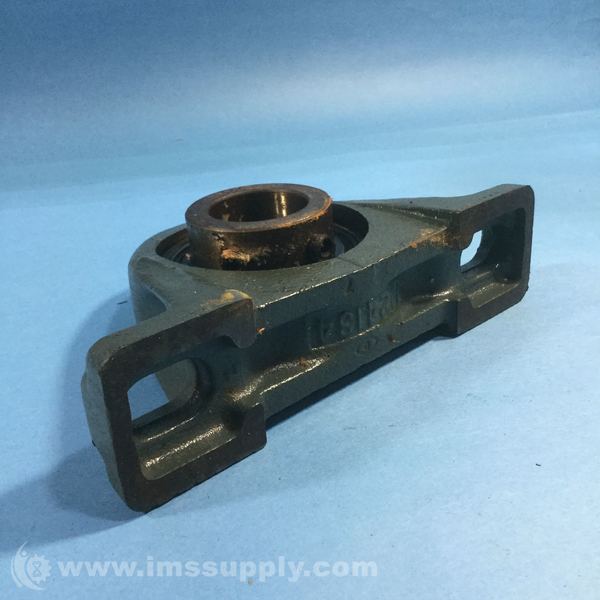

DODGE P2B-SC-103 PILLOW BLOCK BALL BEARING
Quick Overview
Manufactured By: DODGE
Manufacturer Part Number: P2B-SC-103
IMS Product Code: 646543
Packaging: Sold Individually
Description:
Dodge P2B-SC-103 Pillow Block Ball Bearing
Two-Bolt Pillow Block Ball Bearing with Set Screw locking used in General Purpose applications
Specifications
- Mounting Type: 2-Bolt Base
- Bore Diameter: 1-3/16 in
- Bolt Center To Center Length: 4.2500 to 5.0000 in
- Base To Bore Centerline: 1.6300 in
- Duty Type: Standard Duty
- Locking Device: Set Screw
- Seal Type: Single Lip Contact
- Housing Material: Cast Iron
- Expansion Type: Non-Expansion Bearing (Fixed)
- Insert Material: Steel
- Bore Length: 1.52 in
- Max Rpm: 6500 rpm
- Housing Type: Two-Bolt Pillow Block
- Lubrication: Grease
- Dynamic Load Capacity: 4368 lbf
- Static Load Capacity: 2538 lbf
- Bearing Series: 206 Series
- Relubricatable: Yes
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 2 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
