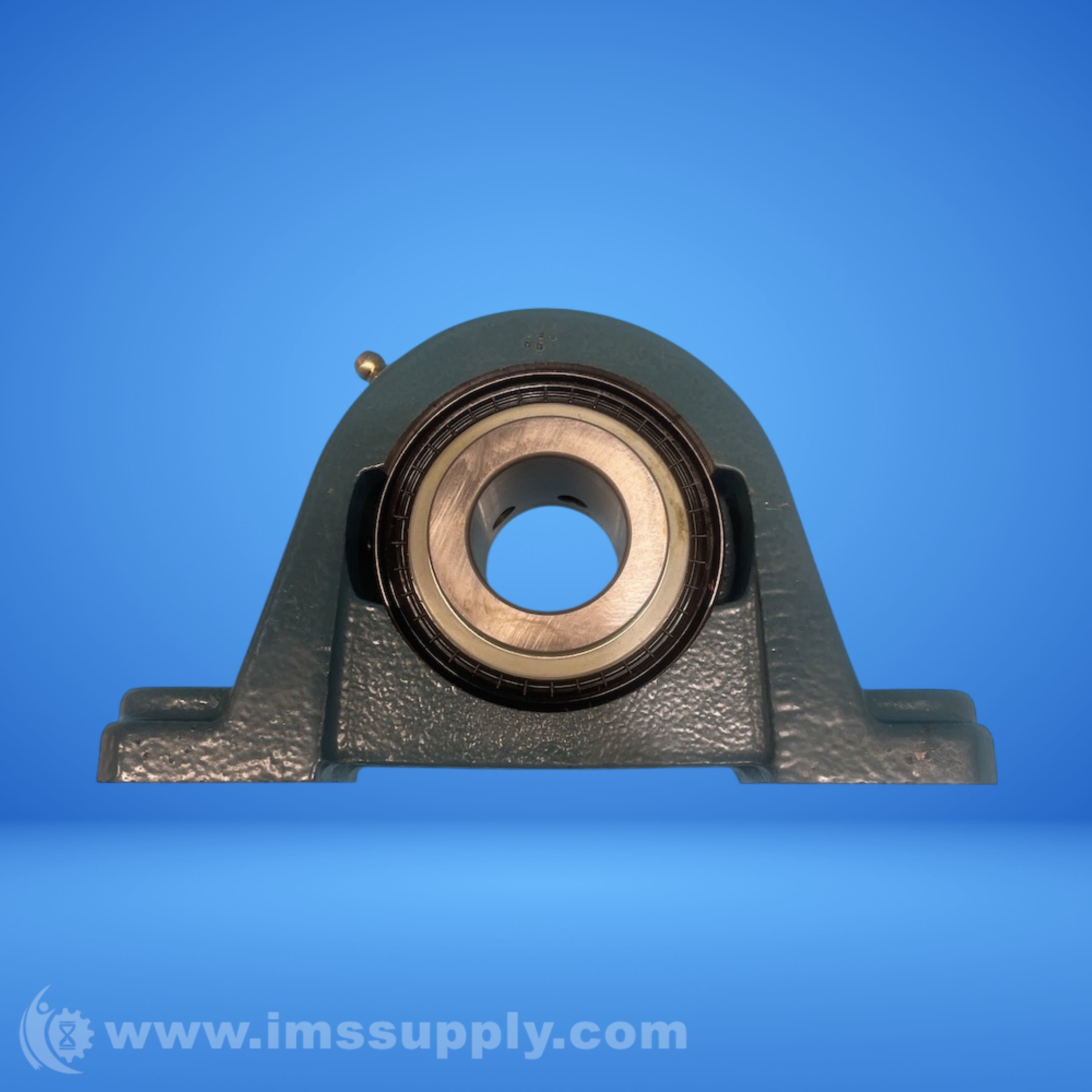

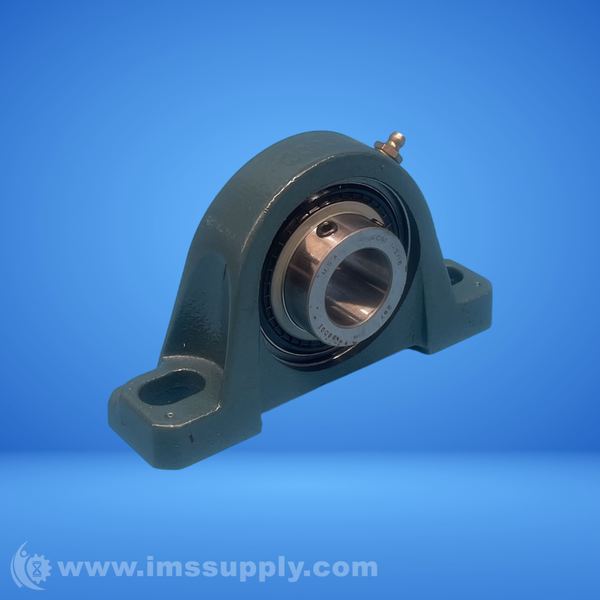

DODGE P2B-SCM-103 PILLOW BLOCK BALL BEARING UNIT
Quick Overview
Manufactured By: DODGE
Manufacturer Part Number: P2BSCM103
IMS Product Code: 646686
Packaging: Sold Individually
Description:
Dodge P2B-SCM-103 Pillow Block Ball Bearing Unit
Pillow Block Ball Bearing Unit - 1-3/16 in Bore, 2-Bolt Base Mount, Set Screw Locking, Non-Expansion Bearing (Fixed), Cast Iron Housing Material, Medium Duty
Specifications
- Mounting Type: 2-Bolt Base
- Bore Diameter: 1-3/16 in
- Bolt Center To Center Length: 4.6800 to 5.4400 in
- Base To Bore Centerline: 1.8800 in
- Duty Type: Medium Duty
- Locking Device: Set Screw
- Seal Type: Single Lip Contact
- Housing Material: Cast Iron
- Expansion Type: Non-Expansion Bearing (Fixed)
- Country of Origin: US
- Insert Material: Steel
- Radial Dynamic Load Capacity: 5759 lbf
- Radial Static Load Capacity: 3461 lbf
- Bore Length: 1.71 in
- Max Rpm: 3500 rpm
- Series: 207
- Housing Type: Two-Bolt Pillow Block
- Grease Type: Unirex N2
- Type Of Bearing: Ball Bearing
- Housing Construction: Solid
- Lubrication: Grease
- Dynamic Load Capacity: 5759 lbf
- Sealing Type: Single-Lip Contact
- Shaft Attachment: Setscrew
- Static Load Capacity: 3461 lbf
- Weight: 4.6 lbs
- Bearing Series: 207 Series
- Relubricatable: Yes
- Standoff Included: No
- Bolt Center Diameter: 0.5000 in
- Locking Type: Set Screw
- Number Of Mounting Holes: 2
