DUPLOMATIC E5P4M-TA/I/20N-D24K1 HYDRAULIC VALVE
Quick Overview
Manufactured By: DUPLOMATIC
Manufacturer Part Number: E5P4M-TA/I/20N-D24K1
IMS Product Code: 2140667
Packaging: Sold Individually
Description:

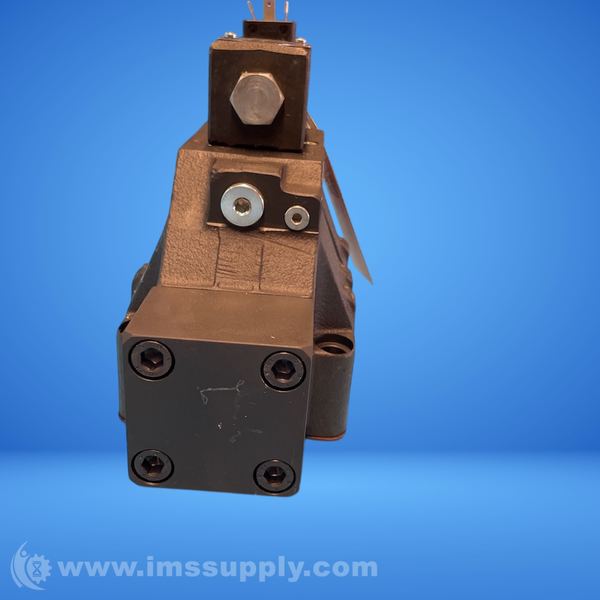

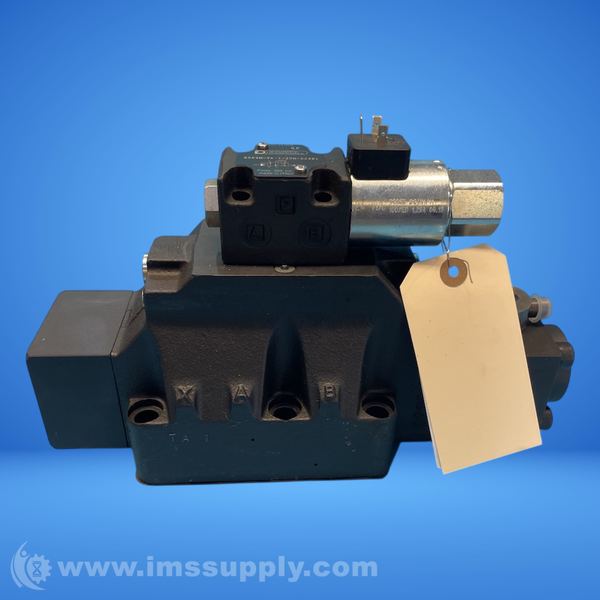

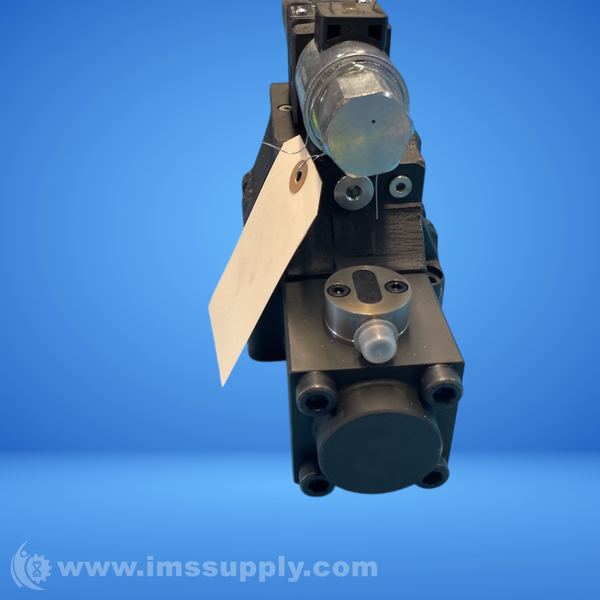

Duplomatic E5P4M-TA/I/20N-D24K1 Hydraulic Valve
Pilot operated distributor solenoid or hydraulic controlled hydraulic valve.
Specifications
- Maximum Operating Pressure - Ports P - A - B: 320 bar
- Maximum Operating Pressure - Port T (External Drainage): 210 bar
- Maximum Operating Pressure - Port T (Internal Drainage): 140 bar
- Maximum Flow Rate from Port P to A - B - T: 600 l/min
- Ambient Temperature Range: -20 / 50 degrees C
- Fluid Temperature Range: -20 / 80 degrees C
- Fluid Viscosity Range: 10 ÷ 400 cSt
- Fluid Contamination Degree: According to ISO 4406:1999 Class 20/18/15
- Recommended Viscosity: 25 cSt
- Mass: 15 kg
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 11 hours and 56 minutes.
