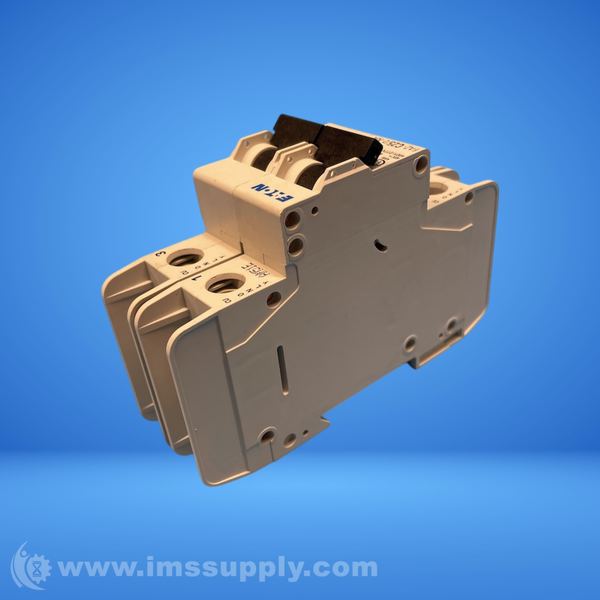

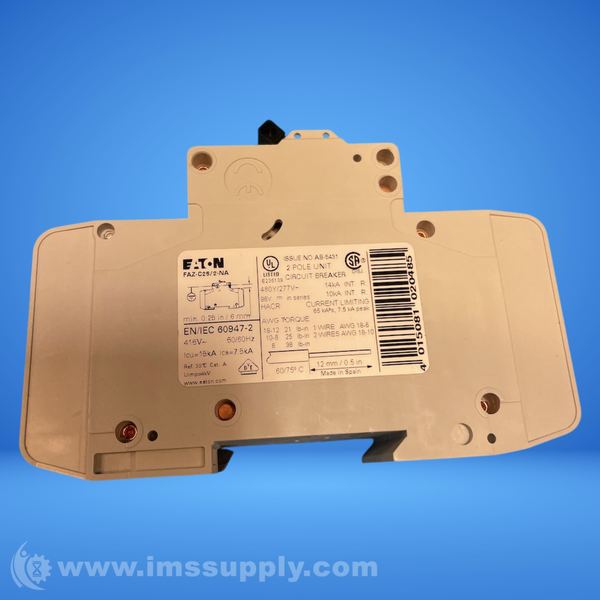

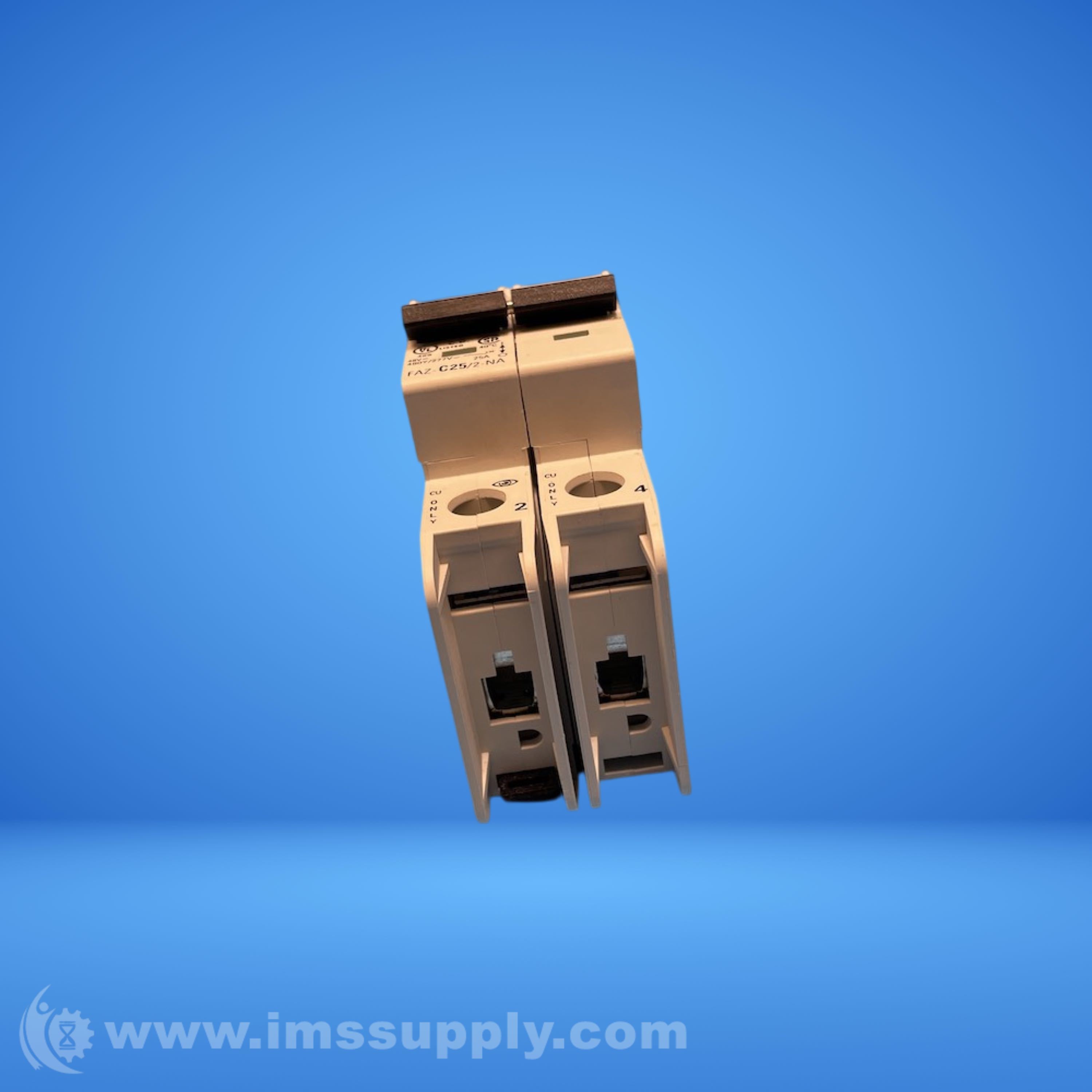

EATON FAZ-C25/2-NA 2-POLE CIRCUIT BREAKER
Quick Overview
Manufactured By: EATON
Manufacturer Part Number: FAZ-C25/2-NA
IMS Product Code: 2123834
Packaging: Sold Individually
Description:
Eaton FAZ-C25/2-NA 2-Pole Circuit Breaker
2-pole thermal-magnetic molded case circuit breaker with 25A current rating and 277/480VAC, 48/96VDC voltage rating. 14kAIC, 10kAIC interrupting rating. Din rail mounting.
Specifications
- Amperage: 25
- Voltage: 277/480VAC, 48/96VDC
- Poles: 2
- Phase: 1
- Mounting Type: Din Rail
- Interrupting Rating: 14kAIC, 10kAIC
- Protection: Thermal Magnetic
- Functions: LI - Long Time and Instantaneous
- Connection Type: Feed-Thru
- Terminal Connection: Line and load
- Wire Gauge: 18 to 6 AWG, 18 to 10 AWG
- Standard: IEC 60947-2
- Curve: C-curve
- Actuator Type: Toggle
- Series: FAZ

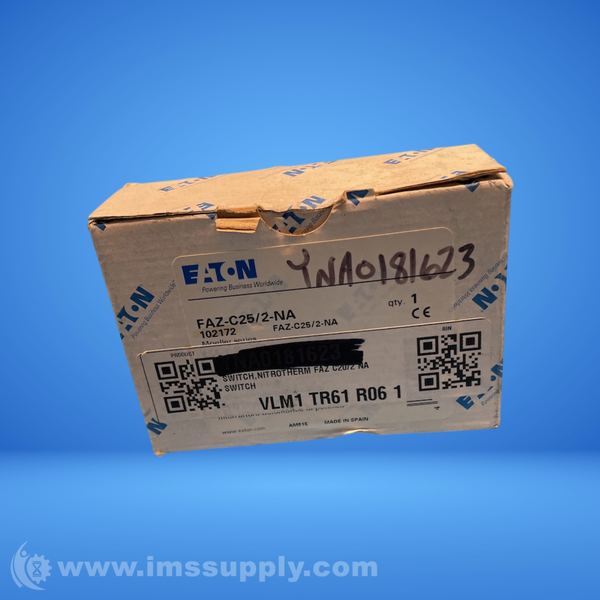

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
