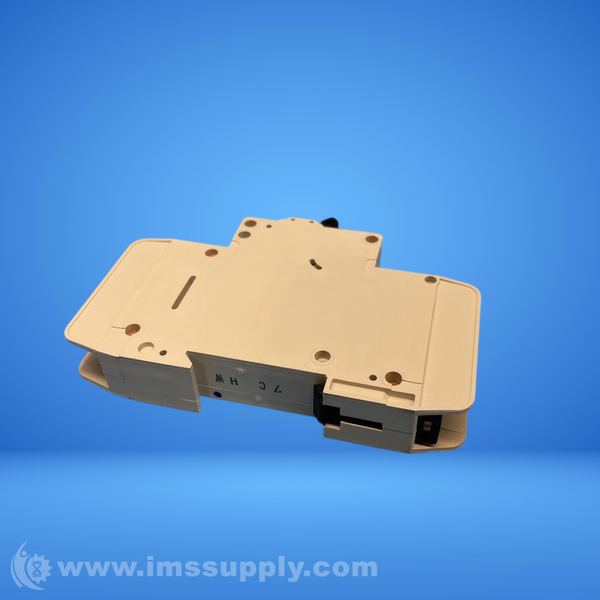

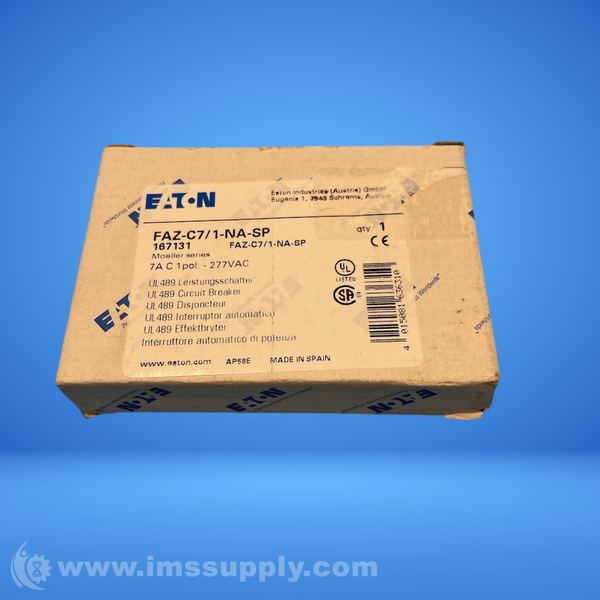

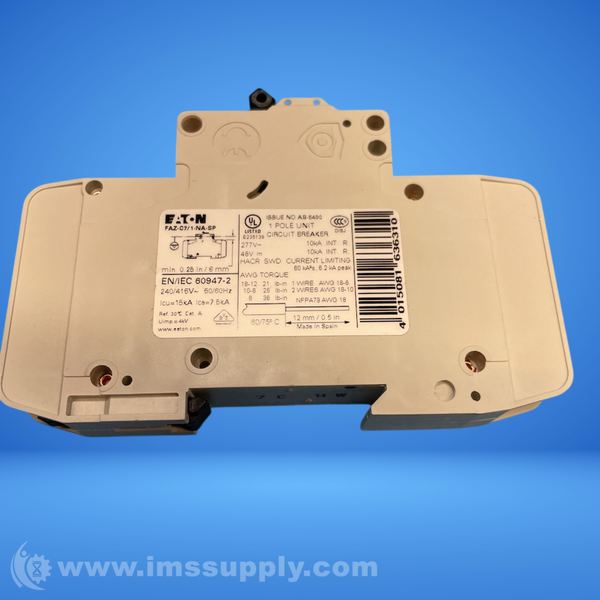

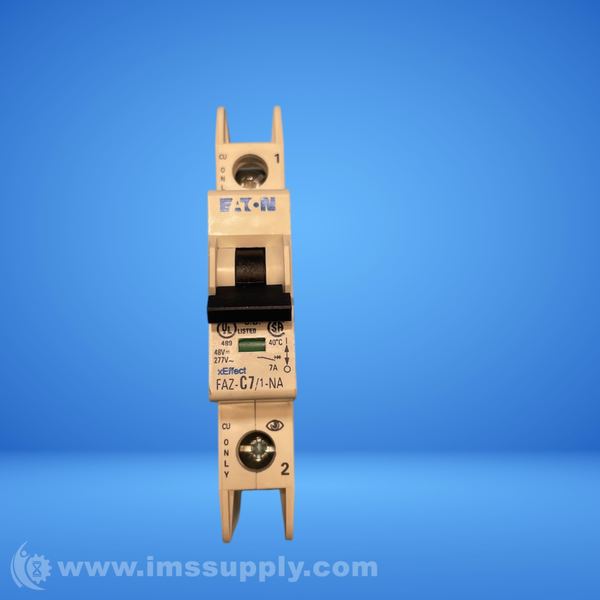

EATON FAZ-C7/1-NA-SP MINIATURE CIRCUIT BREAKER
Quick Overview
Manufactured By: EATON
Manufacturer Part Number: FAZ-C7/1-NA-SP
IMS Product Code: 2156031
Packaging: Sold Individually
Description:
Eaton FAZ-C7/1-NA-SP Miniature Circuit Breaker
Eaton miniature circuit breaker, current-limiting, 7A, 277 VAC/48 VDC, 1-pole, C curve, thermal magnetic, 10kA @ 277 VAC interrupting rating, 35mm DIN rail mount.
Specifications
- Amperage: 7A
- Voltage: 277VAC, 48VDC
- Number of Poles: 1
- Curve Type: C
- Interrupting Rating: 10kA @ 277VAC, 10kA @ 48VDC
- Mounting Type: 35mm DIN rail
- Terminal Type: Box Lugs
- Trip Technology: Thermal Magnetic
- Trip Function Code: LI
- Trip Function: Long-Time, Instantaneous
- Trip Curve: C
- Trip Adjustability: Fixed
- Wire Gauge: 18-6 AWG
- Standards: CSA C22.2 No. 5, IEC 60947-2, UL 489
- Construction Features: Current Limiting, HACR Rated, Reverse Feed, Trip-Free Mechanism
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
