EATON FAZ-D7/3-NA 7A 3-POLE CIRCUIT BREAKER
Quick Overview
Manufactured By: EATON
Manufacturer Part Number: FAZ-D7/3-NA
IMS Product Code: 2156085
Packaging: Sold Individually
Description:

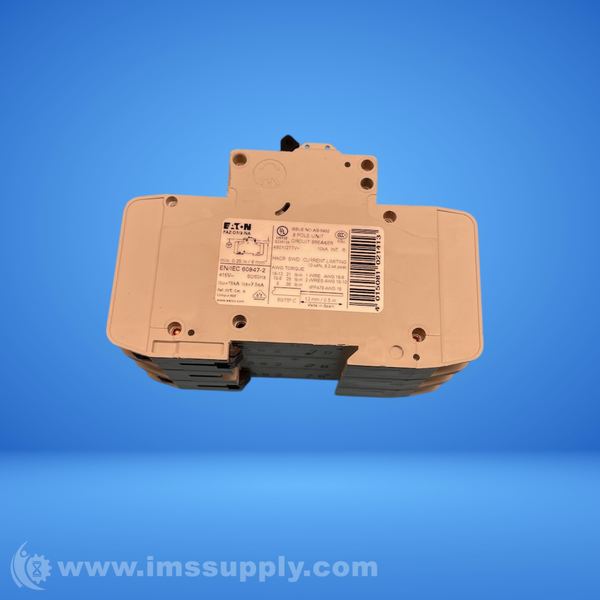

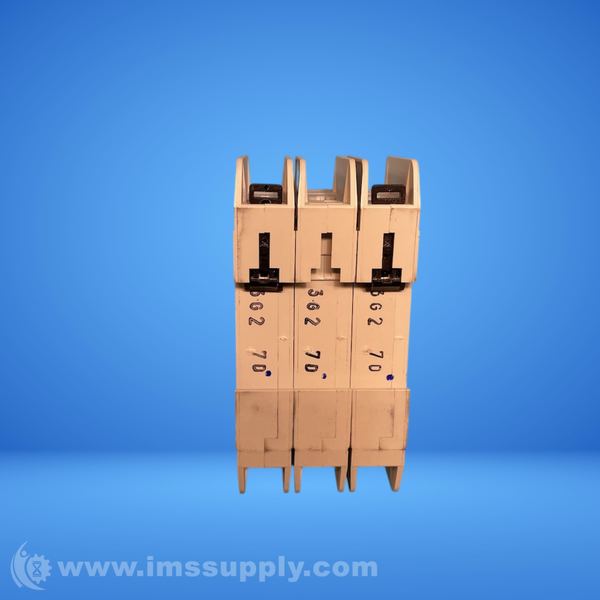

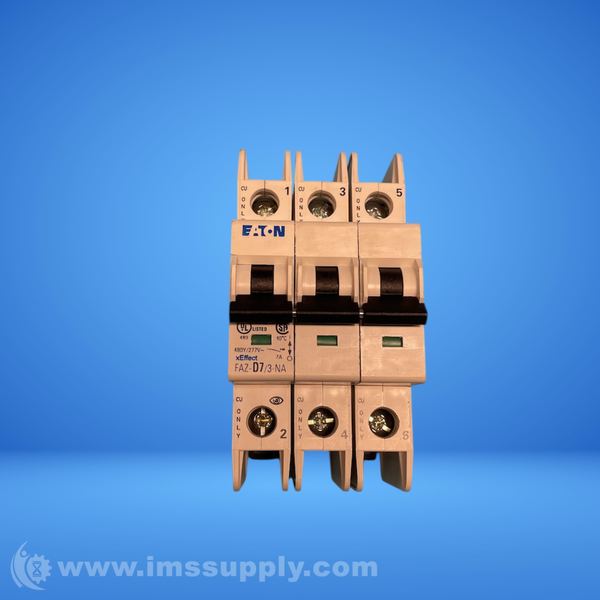

Eaton FAZ-D7/3-NA 7A 3-Pole Circuit Breaker
3-pole thermal-magnetic circuit breaker with D-curve trip, 7A current rating, 10kA interrupting rating at 480Y/277VAC. Mounts on 35mm DIN rail.
Specifications
- Current Rating: 7A
- Curve: D
- Number of Poles: 3
- Interrupting Rating: 10kA @ 480Y/277 VAC
- Voltage Rating: 480Y/277 VAC/96 VDC
- Mounting Type: 35mm DIN rail mount
- Series: FAZ-NA
- AIC Rating: 10kA @ 480Y/277VAC, 10kA @ 96VDC
- Mounting Style: DIN Rail
- Terminal Type: Box Lugs
- Trip Technology: Thermal Magnetic
- Trip Function Code: LI
- Trip Function: Long-Time, Instantaneous
- Trip Curve: D
- Trip Adjustability: Fixed
- Wire Gauge: 18-6 AWG
- Standards: CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS
- Temp Rating: -25C to 75C
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 10 hours and 59 minutes.
