EATON FD3030L MOLDED CASE CIRCUIT BREAKER
Quick Overview
Manufactured By: EATON
Manufacturer Part Number: FD3030L
IMS Product Code: 2157815
Packaging: Sold Individually
Description:

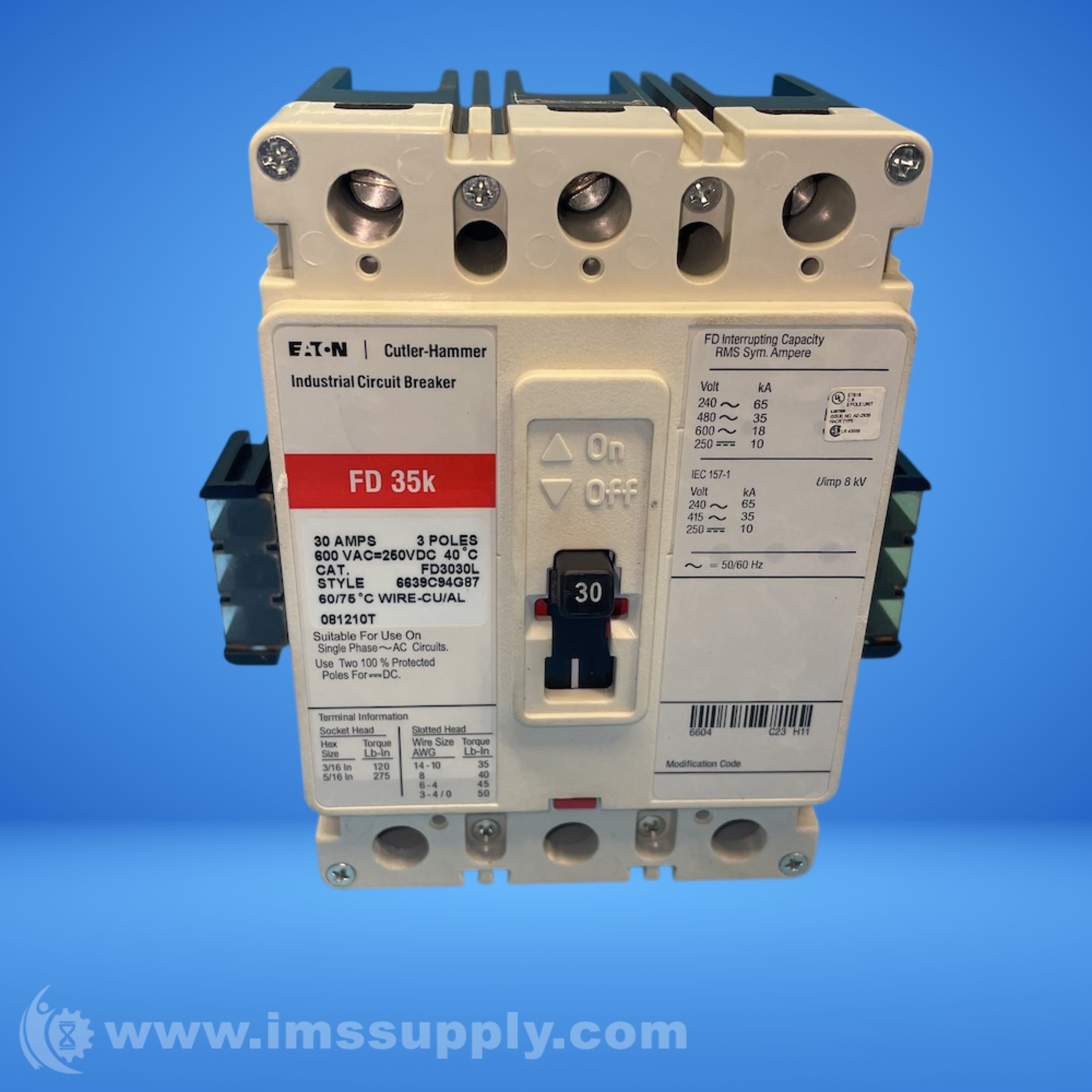

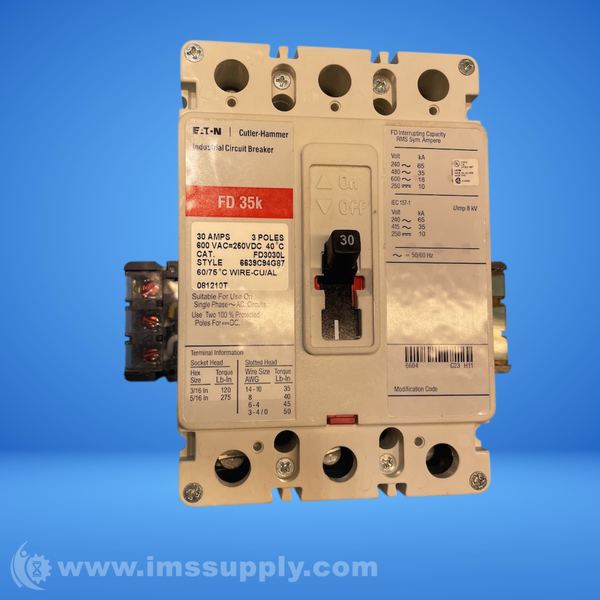

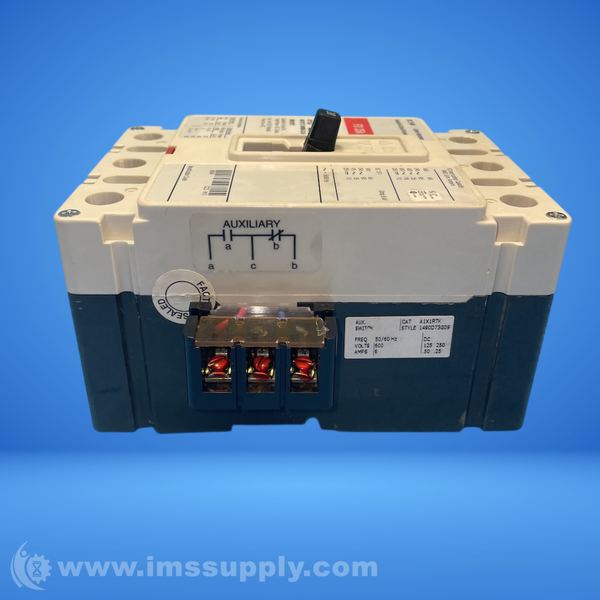

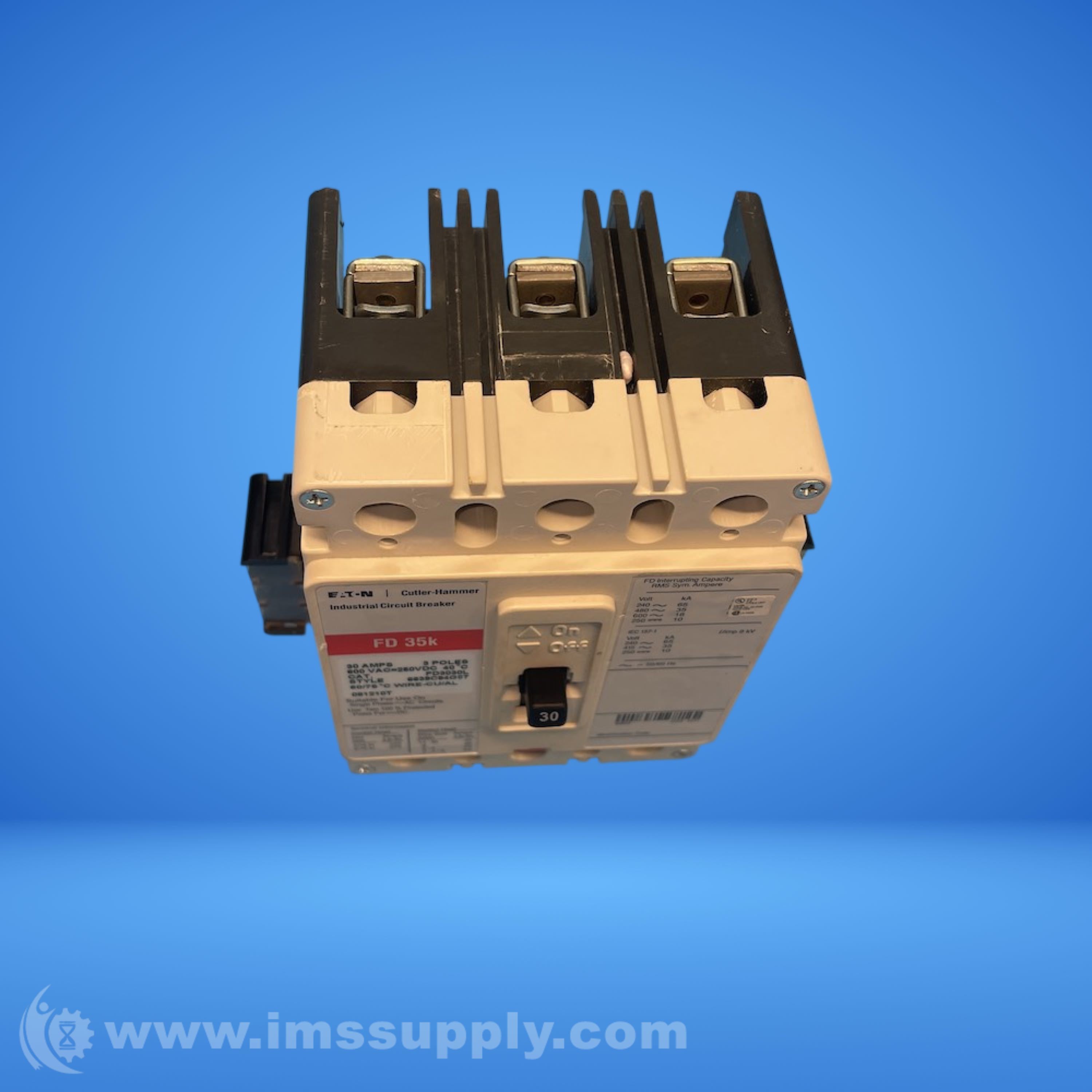

Eaton FD3030L Molded Case Circuit Breaker
Eaton Series C molded case circuit breaker, 600V, 30A, 3-pole, thermal magnetic, F-frame, feed-through mounting.
Specifications
- Amps: 30 Amp
- Breaker Interrupt Rating 1: 65KA @ 240VAC
- Breaker Interrupt Rating 2: 35KA @ 480VAC
- Breaker Interrupt Rating 3: 18KA @ 600VAC
- Breaker Line Side Term Method: Lugs
- Breaker Load Side Term Method: Lugs
- Circuit Breaker Type: Series C Molded Case Circuit Breaker
- Dimensions (HxWxD): 6" x 4.13" x 3.38"
- Frame: F-Frame
- Frame Type: F Frame
- Maximum Interrupt Rating: 18KA @ 600VAC
- Mount Type: Feed-Through
- Number of Poles: 3 Pole
- Trip Functions: LI
- Trip Type: Thermal Magnetic
- Voltage: 600V
- AIC: 35kA@480V
- Weight: 5 lbs
New - Missing Box (Special):

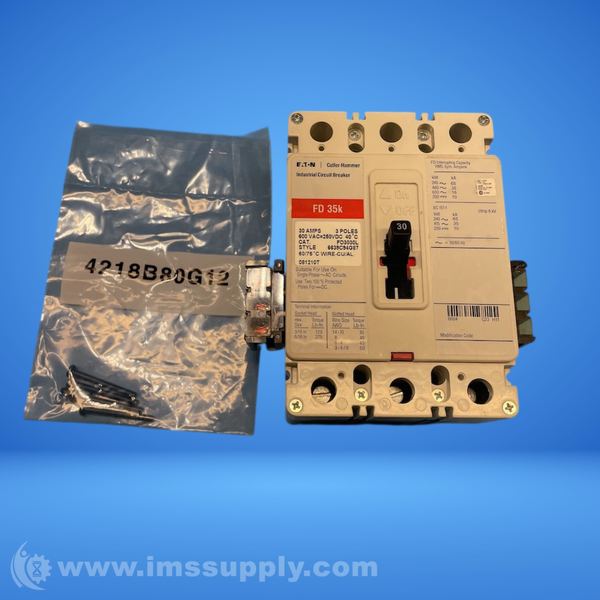

Part comes with hardware P/N 4218B80G12,and installation instructions.
