EATON FD3225L 225A 3P CIRCUIT BREAKER
Quick Overview
Manufactured By: EATON
Manufacturer Part Number: FD3225L
IMS Product Code: 2124595
Packaging: Sold Individually
Description:

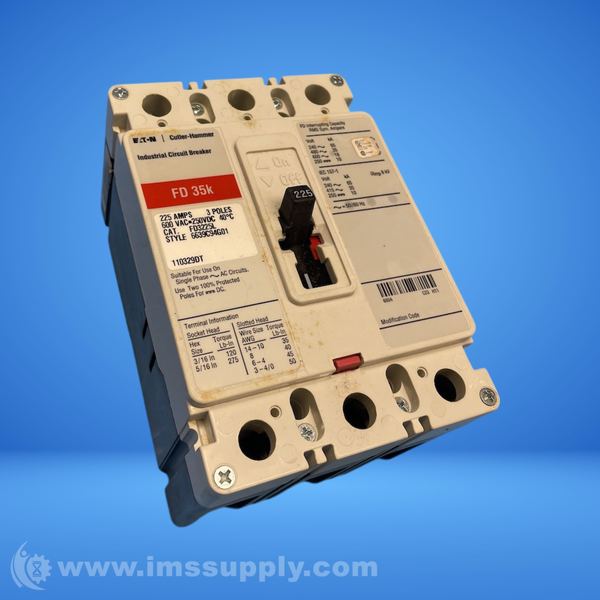

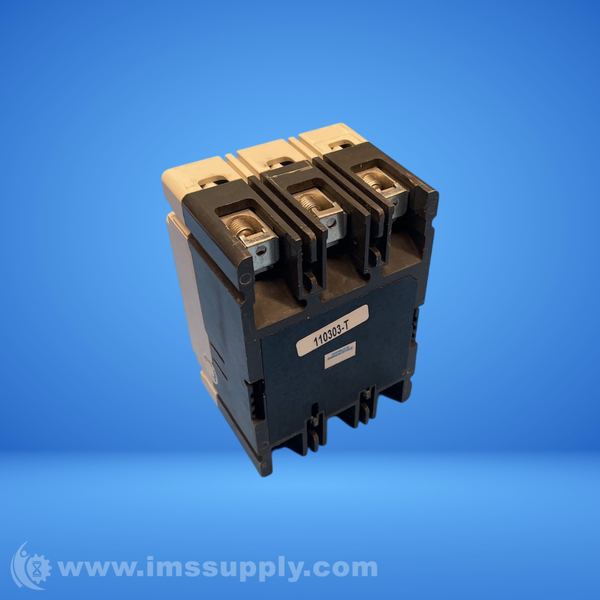

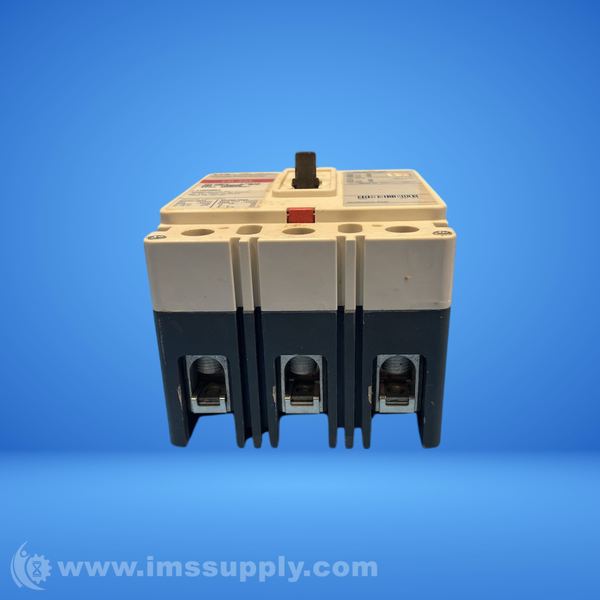

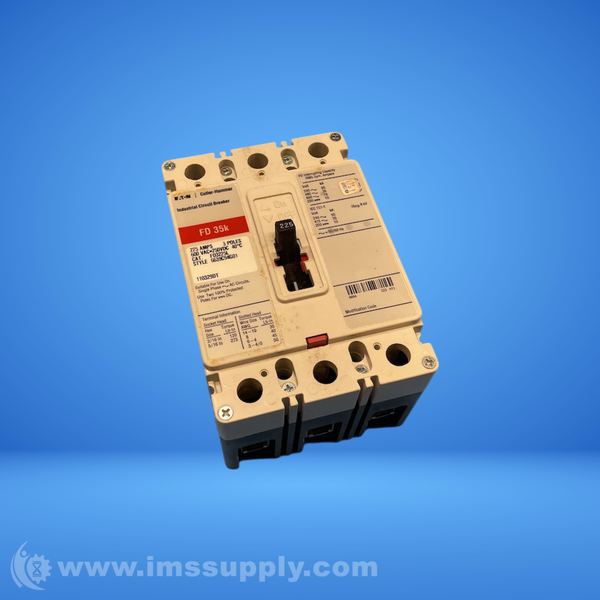

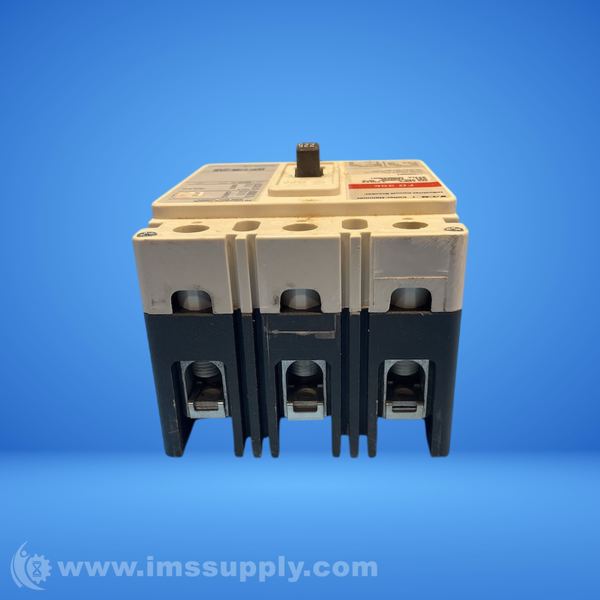

Eaton FD3225L 225A 3P Circuit Breaker
Eaton FD3225L is a 225 Amp, 3-Pole molded case circuit breaker with thermal-magnetic trip, 600VAC max, 35kAIC at 480VAC.
Specifications
- Ampere Rating: 225
- Approvals: UL, CSA, CE
- Connection Type: Feed-Thru
- Dimensions (HxWxD): 6" x 4.13" x 3.38"
- Frame Size: F Frame
- Interrupting Capacity: 35kA @ 480VAC, 65kA @ 240VAC, 18kA @ 600VAC
- Mounting: Panel mount
- Number of Poles: 3
- Series: Series C
- Trip Type: Thermal Magnetic
- Voltage Rating: 600 VAC
- Weight: 4.5 lbs
