EATON PDG23M0015TFFL MOLDED CASE CIRCUIT BREAKER
Quick Overview
Manufactured By: EATON
Manufacturer Part Number: PDG23M0015TFFL
IMS Product Code: 2163749
Packaging: Sold Individually
Description:

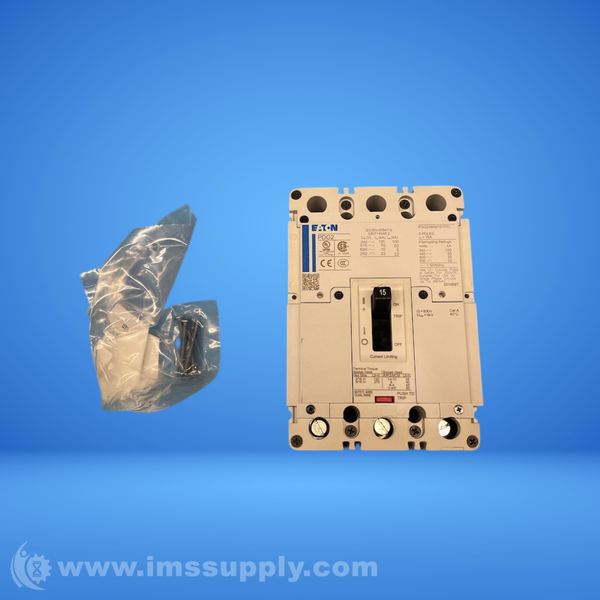

Eaton PDG23M0015TFFL Molded Case Circuit Breaker
3-pole, 15A molded case circuit breaker with thermal-magnetic trip unit, 65kAIC at 480V, panel mount, for use with Eaton Power Defense enclosures and panelboards.
Specifications
- AIC Rating: 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC
- Amperage: 15A
- Connection: Feed-Thru
- Dimensions (HxWxD): 3.5 in x 6 in x 4.11 in
- Functions: LI - Long-Time and Instantaneous
- Mounting Style: Panel Mount
- Phase: 3
- Poles: 3
- Protection: Thermal Magnetic
- Series: PDG2
- Terminal Type: Lugs
- Trip Adjustability: Fixed Thermal, Fixed Magnetic
- Trip Function: Long-Time, Instantaneous
- Trip Technology: Thermal Magnetic
- Voltage: 240VAC, 480VAC, 600VAC, 250VDC
- Weight: 4.89 lbs
- Wire Gauge: 14 AWG - 1/0 AWG
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
