EFECTOR OJ5005 RETRO-REFLECTIVE SENSOR
Quick Overview
Manufactured By: EFECTOR
Manufacturer Part Number: 0J5005
IMS Product Code: 2139348
Packaging: Sold Individually
Description:

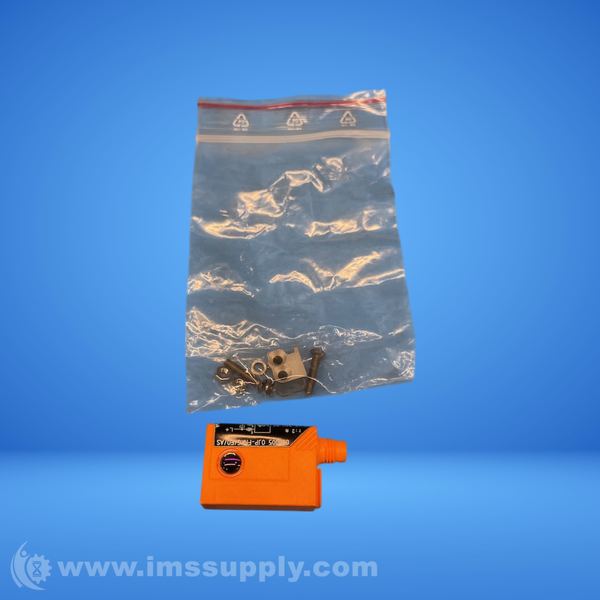

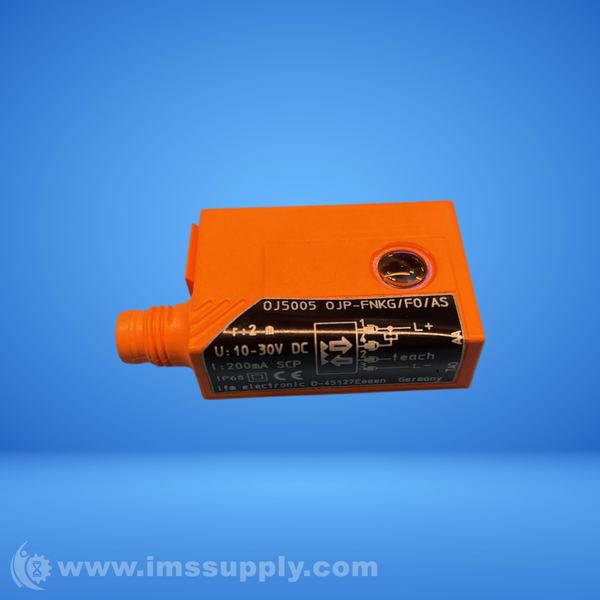

Efector OJ5005 Retro-Reflective Sensor
Retro-reflective sensor with NPN output, 10-30V DC, IP67 protection, and adjustable range up to 2m.
Specifications
- Electrical Design: NPN
- Output Function: Light-On/Dark-On Mode; (Programmable)
- Material: Housing: ABS; Fixture: Diecast Zinc; LED Window: SEPS; Pushbutton: SEPS
- Operating Voltage: 10...30 DC
- Current Consumption: < 22 mA
- Protection Class: III
- Type Of Light: Red Light
- Wave Length: 660 nm
- Permanent Current Rating Of Switching Output DC: 200 mA
- Switching Frequency DC: 2000 Hz
- Range: 0...2 m (Prismatic Reflector 80 E20005)
- Ambient Temperature: -25...60 degrees C
- Protection: IP 67
- Dimensions: 35 x 24 x 11 mm
- Connection: Connector: 1 x M8
New - Missing Box (Special):

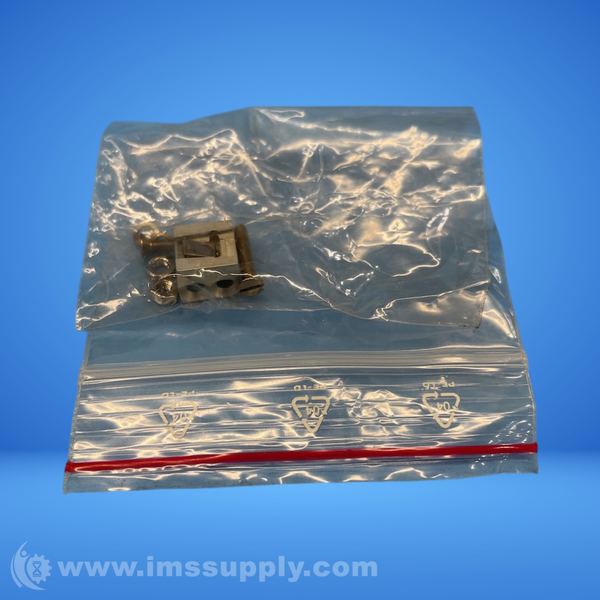

Comes with hardware.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
