EFECTOR IIT002 INDUCTIVE SENSOR
Quick Overview
Manufactured By: EFECTOR
Manufacturer Part Number: IIT002
IMS Product Code: 2088416
Packaging: Sold Individually
Description:

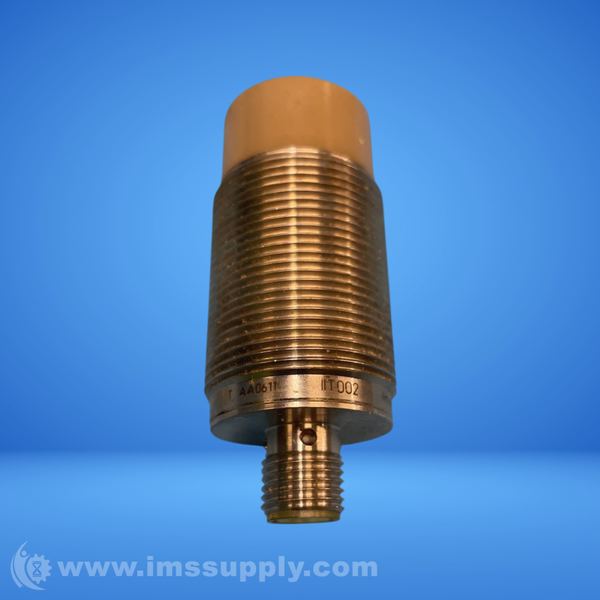

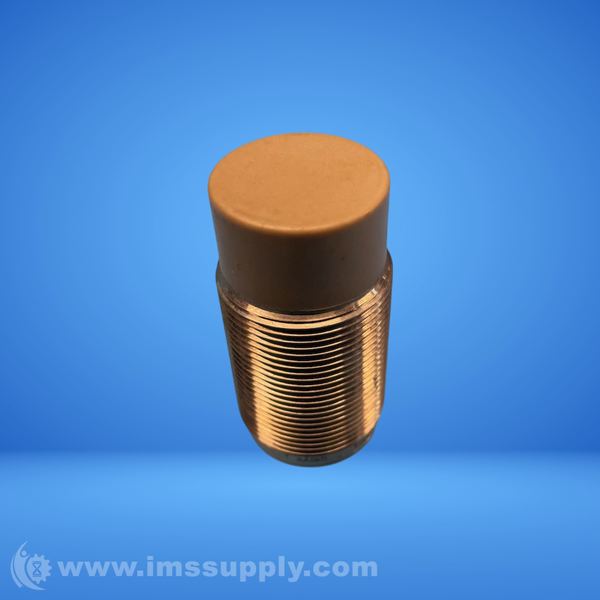

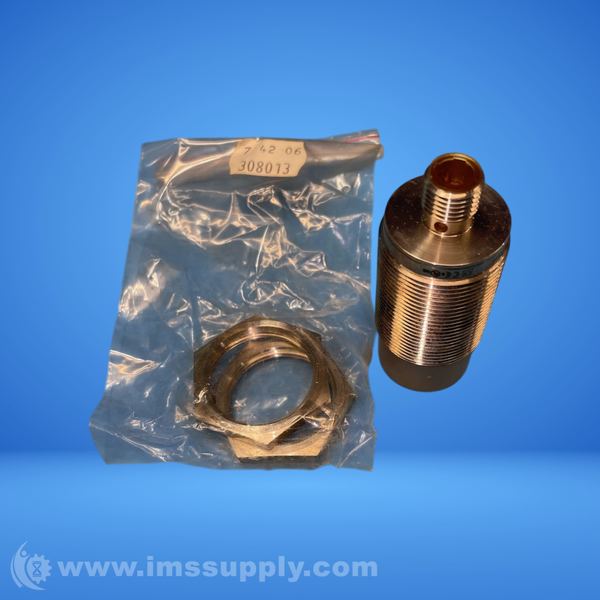

Efector IIT002 Inductive Sensor
Inductive proximity sensor with 22mm sensing range, non-flush mounting, stainless steel housing, and 20-140V AC/DC operating voltage.
Specifications
- output function: normally open
- sensing range: 22 mm
- housing: threaded type
- dimensions: M30 x 1.5 / L = 70 mm
- operating voltage: 20-140 AC/DC
- protection class: II
- reverse polarity protection: yes
- max. power-on delay time: 1000 ms
- max. voltage drop switching output DC: 5.5 V
- max. voltage drop switching output AC: 5.5 V
- minimum load current: 5 mA
- max. leakage current: 1 mA
- permanent current rating of switching output AC: 80 mA
- permanent current rating of switching output DC: 80 mA
- short-time current rating of switching output: 1200 mA
- switching frequency AC: 25 Hz
- switching frequency DC: 100 Hz
- short-circuit protection: yes
- type of short-circuit protection: non-latching
- overload protection: yes
- real sensing range Sr: 22 mm ± 10%
- operating distance: 0-17.82 mm
- correction factor: steel: 1, stainless steel: 0.7, brass: 0.5, aluminum: 0.4, copper: 0.3
- hysteresis: 3-15% of Sr
- switch-point drift: -10 to 10% of Sr
- ambient temperature: 0-100 degrees C
- protection: IP 68, IP 69K
- MTTF: 378 years
- weight: 134.1 g
- material: stainless steel (1.4404 / 316L), PEEK
- display: switching status: 4 x 90° LED, yellow
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
