ENDO KOGYO EWF-30 SPRING BALANCER
Quick Overview
Manufactured By: ENDO KOGYO
Manufacturer Part Number: EWF-30
IMS Product Code: 2148654
Packaging: Sold Individually
Description:

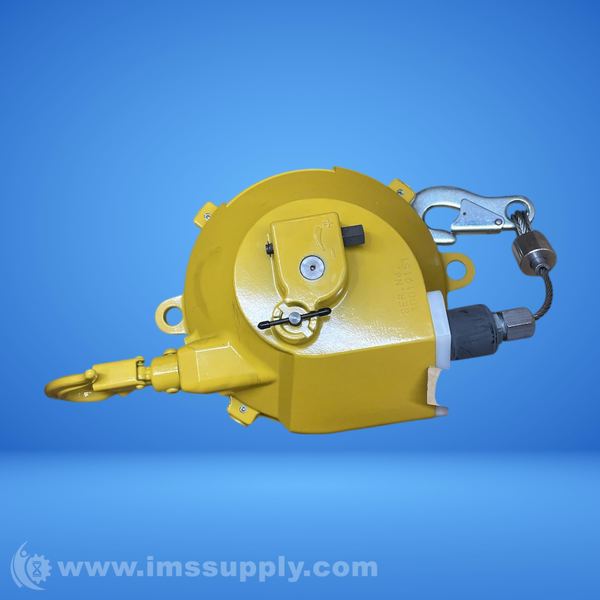

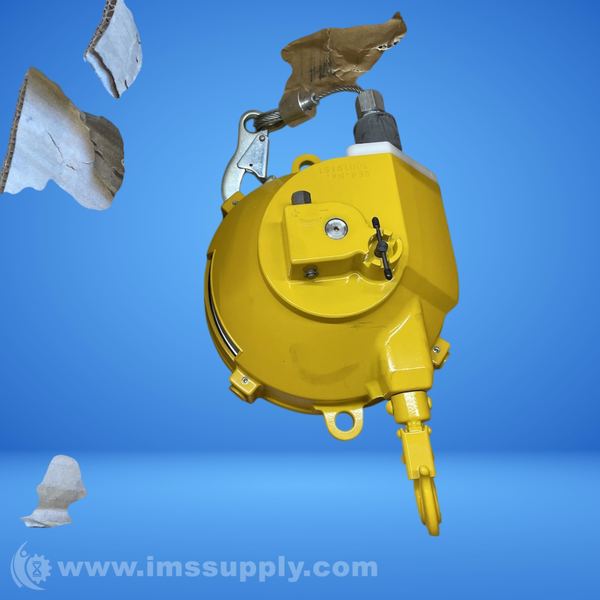

Endo Kogyo EWF-30 Spring Balancer
Spring balancer with 48.5-66.1 lbs capacity and 4.93 ft cable travel.
Specifications
- Capacity Range: 48.5 to 66.1 lbs. (22.0 to 30.0 kg)
- Cable Travel: 4.93 ft. (1.5 m)
- Cable Diameter: 0.187 in. (4.76 mm)
- Cable Material: Wire Rope (steel)
- Unit Weight: 17 lbs. (7.7 kg)
- Length (hook to hook I.D.): 16.9 to 76.0 in. (429 to 1930 mm)
- Width: 8.6 in. (218 mm)
- Depth: 6.2 in. (157 mm)
- Color: Safety Yellow
- Top Hook: Aluminum forged swivel hook with safety latch.
- Bottom Hook: Steel hook with safety latch and rubber buffer collar.
- Secondary Support: Includes top and bottom support eyelets to accommodate a safety chain.
- Country of Origin: Japan
