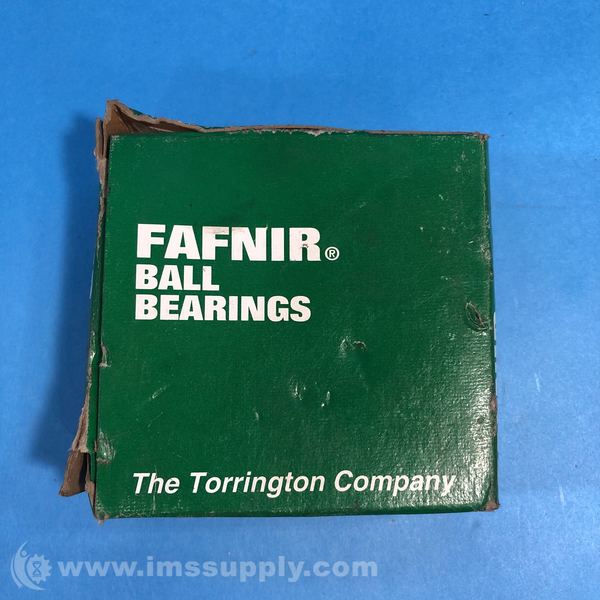

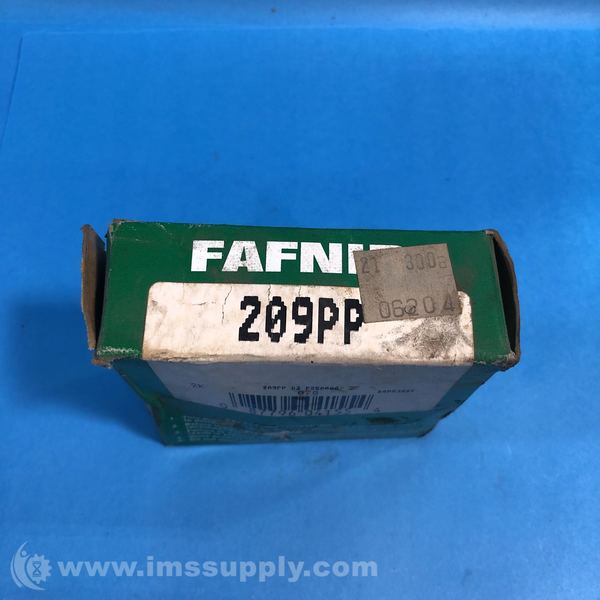

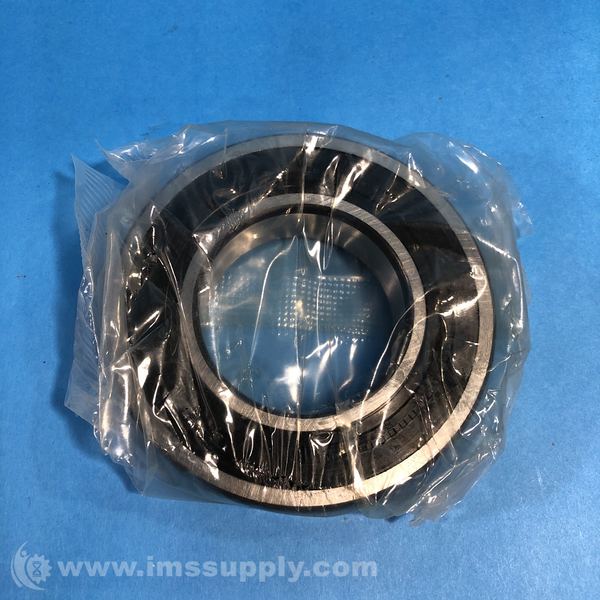

FAFNIR BEARING 209PP DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: FAFNIR BEARING
Manufacturer Part Number: 209PP
IMS Product Code: 1953390
Packaging: Sold Individually
Description:
Fafnir Bearing 209PP Deep Groove Ball Bearing
Deep groove ball bearing with straight bore, double sealed closure, and without snap ring
Specifications
- Bore Diameter: 45 mm
- Outside Diameter: 85 mm
- Overall Width: 19 mm
- Bearing Material: Steel
- Cage Material: Steel
- Closure Type: Double Sealed
- Fillet Radius: 0.049 in
- Inner Ring Width: 0.748 in
- Outer Diameter Type: Cylindrical
- Precision Rating: Not Rated
- Weight: 0.94 lbs
- Bore Type: Straight
- Component Type: Assembly
- Finish Coating: Uncoated
- Internal Clearance: P
- Max Operating Temperature: 120 degrees C
- Min Operating Temperature: -50 degrees C
- Precision Class: ABEC1
- Radial Dynamic Load Capacity: 8160 lbf
- Radial Static Load Capacity: 4600 lbf
- Relubricatable: No
- Retainer Material: Cold Rolled Steel
- Rolling Element: Ball
- Row Type: Single
- Self Aligning: No
- Snap Ring Included: Without Snap Ring
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships Tomorrow
